Specifications
Place of Origin :
China
Brand Name :
Novastar
Model Number :
MCTRL300, MCTRL300
Warranty :
3months-1year
Usage :
led display
Net Weight :
1.04KG
Certifications :
EAC, RoHS, CE, FCC, IC, PFOS, CB
Input voltage :
AC 100V-240V~50/60Hz
Rated power consumption :
3.0 W
Dimensions :
204.0 mm*160.0 mm*48.0 mm
Price :
$156.36/pieces 1-49 pieces
Description
Product Description

Experience Seamless LED Display Control with Novastar MCTRL300 LED Sender Box 1.04KG

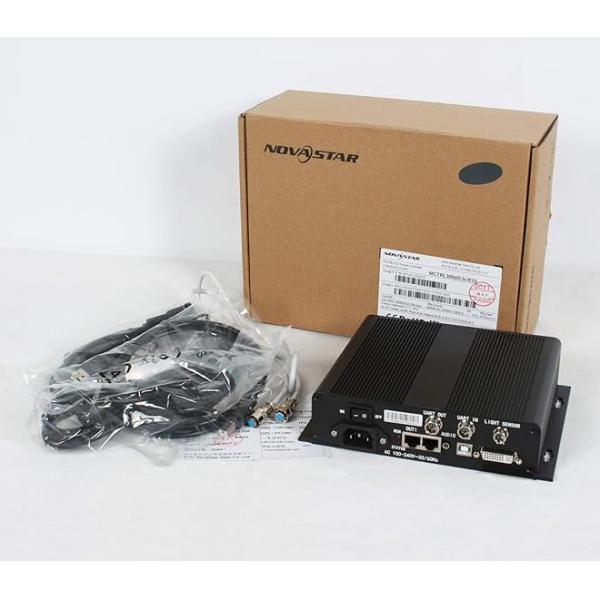

MCTRL300 is NovaStar’s independent control card from the M3 Series, and supports audio and video input. The M3 undertakes encoding and data processing, sending the audio and video to the display. A single card supports maximum loading capacity of 2048×668@60Hz. It communicates with PC via USB port for convenience.

  • DVI video input
  • Audio transmission
  • Dual-Ethernet output, with dual-Ethernet cable hot backup and multiple controller hot backup
  • USB port control, for cascading and control of multiple units

1.3 million pixel loading capacity, with resolutions of 1280×1024@60Hz, 1024×1200@60Hz, 1600×848@60Hz, 1920×712@69Hz, 2048×668@60Hz and Maximum height: 3840; Maximum height:3840

1 light sensor interface, adjust the screen brightness automatically

Independent power supply

Certifications: CE, RoHS, EAC, FCC, IC

  • 1 × DVI input
  • 1 × audio input
  • 1 × type-B USB control port
  • UART control ports to cascade devices for uniform control.
  • Dual Ethernet outputs.
  • Supports the new generation of NovaStar calibration technology, which is fast and efficient.
  • 1 × light sensor connector.
  • Supports resolutions up to 2048×668@60Hz and downward compatibility.
  • Supports a variety of video formats.

Specifications

Connector

Connector Name

Description

Input

DVI IN
  • Single-link DVI connector
  • Resolution up to 1920×1200@60Hz and downward compatible
  • Custom resolutions supported:
    • Resolution with maximum width: 3840×600@60Hz Resolution with maximum height: 800×2560@60Hz

AUDIO

Audio input connector

Output

RJ45 × 2
  • 2 Gigabit Ethernet outputs
  • Maximum loading capacity of a single Ethernet port: 650,000 pixels
  • Support redundancy between Ethernet ports.

Function

LIGHT SENSOR

Connect to light sensor to monitor ambient brightness to realize automatic screen brightness adjustment.

Connector

Connector Name

Description

Control

UART IN/OUT

Input and output ports for cascading devices

USB

Type-B USB control port for connecting to PC

Power

AC 100V-240V~50/60Hz

Indicators

RUN

Device operating indicator. Working status:

  • Flashing slowly: Video input unavailable
  • Flashing normally: Video input available
  • Flashing rapidly: The screen is displaying startup image.
  • Breathing: Ethernet port redundancy has taken effect.

STATUS

Device power indicator. Working status:

  • On: The power supply is normal.
  • Off: The power is not supplied, or the power supply is abnormal.
