Inert Gas Fire Suppression Solutions (IG-55, IG-541 And IG-100)
Inert Gas Fire Suppression Solutions (IG-55, IG-541 And IG-100)
Specifications
Brand Name :
Air Giant
Model Number :
DYMP80/20, DYMP140/20, DYMP80/30, DYMP140/30
Certification :
CAL,CMA,CNAS,ILAC-MRA,CCC
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C,D/P,T/T,Western Union,Paypal,Credit card
Supply Ability :
300 sets per month
Delivery Time :
10-15 working days
Packaging Details :
Plywood outer box with bubble bag or paper
Pattern of extinguishing :
Enclosed Flooding
System start mode :
Electrical Automatic, Electrical Manual, Mechanical Emergency Start
Alarm System :
Audible And Visual
Operating Pressure :
150-300 Bar
Color :
Red
Detection System :
Heat, Smoke, Flame
Working pressure :
20Mpa；30Mpa
Storage Temperature :
-10-50°C
Description

Inert Gas Fire Suppression Solutions (IG-55, IG-541 And IG-100)


Description:


When a fire is detected, the IG55 system releases the inert gas mixture into the protected space. The gases quickly disperse, reducing the oxygen concentration to a level where the fire cannot sustain itself. The process is fast, efficient, and leaves no residue, ensuring minimal downtime and no secondary damage.

The IG55 fire extinguishing system is a reliable, sustainable, and effective solution for protecting critical infrastructure and assets from fire hazards. Its unique properties make it a preferred choice for industries where safety, environmental impact, and asset protection are paramount.


Technical parameters of IG55 fire suppression system

Working temperature (℃)

0℃～+50℃

Working pressure

Storage pressure

20.0MPa

30.0MPa

Max. working pressure (+50℃)

23.2MPa

36.6MPa

Min. working pressure (-20℃)

18MPa

27MPa

Container volume (L)

80L

140L

Filling weight (kg, @200 bar)

22.32kg

39.06kg

Filling weight (kg, @300 bar)

33.48 kg

58.59kg

System operating voltage

220V AC,24V DC

System start mode

Electrical automatic, electrical manual, mechanical emergency start

Design concentration

Class A dangerous material surface fire

40.3%

Class B

47.6%

The design concentration of the protective zone with people working

40.3%～43%

Components:

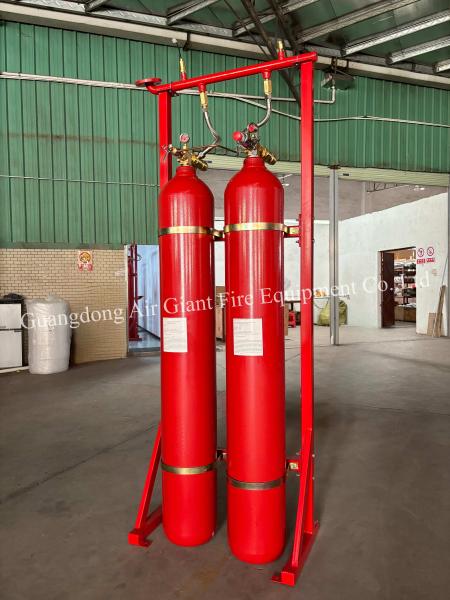

Storage cylinder group, storage cylinder group frame, nitrogen driving device, nitrogen driving device frame, the cylinder valve, liquid flow check valve, air flow check valve, electromagnetic starter, gas conveying pipeline, collecting pipe, choice valve, three links, reducer tee, reducing elbow, flange, safety valve, pressure transmitter, pipe, nozzle, chemicals, fire detector, fire controller, sound and light alarm, alarm bell, gas light, emergency start / stop button, etc.

Inert Gas Fire Suppression Solutions (IG-55, IG-541 And IG-100)















Features:

-- Suitable for Occupied Areas

-- Electrically Non-Conductive

-- Chemically Inert

-- Colourless, Odourless, and Flavourless

-- No Residue

-- Zero Ozone Depletion Potential (ODP)

-- No Greenhouse Effect

-- No Decomposition Products

-- No Fog and No Loss of Post-Discharge Visibility

-- Non-Corrosive/Toxic

-- Stored as a Gas

-- Excellent Post-Discharge Visibility

-- Very Low Refill Cost

-- Easy to Obtain Anywhere in the World

Applications:

- Computer rooms

- Telecommunication center

- Facilities underground

- Offshore oil extraction

- Library

- Data and paper archives

- Valuable article storage

- Power generator storage room

Inert Gas Fire Suppression Solutions (IG-55, IG-541 And IG-100)

Packing and Shipping:

We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
