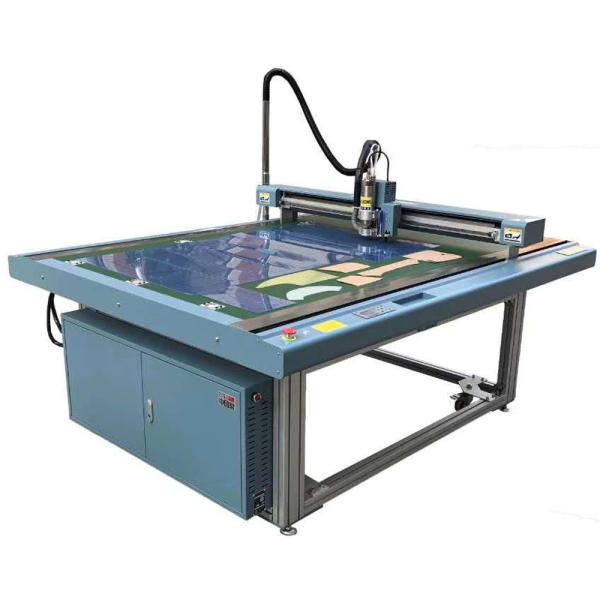

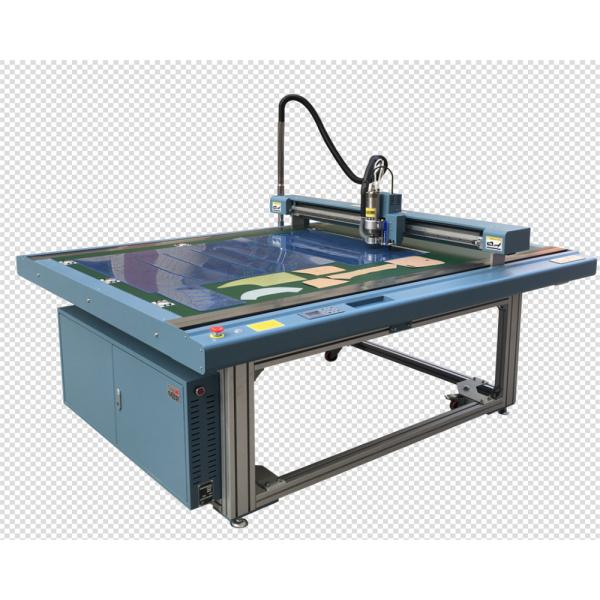

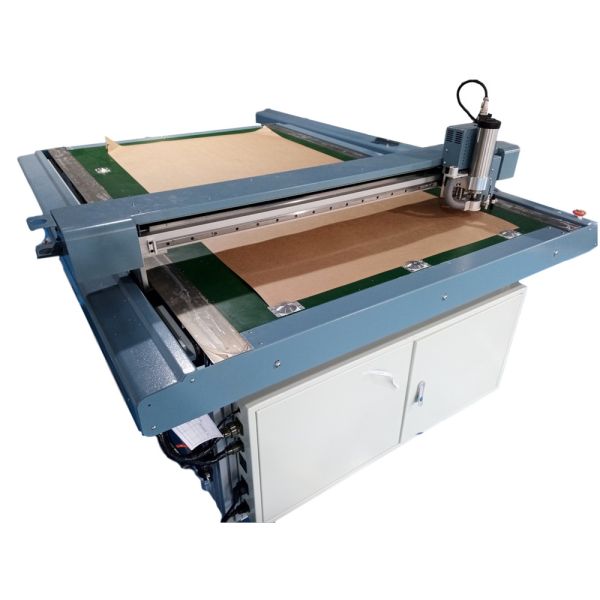

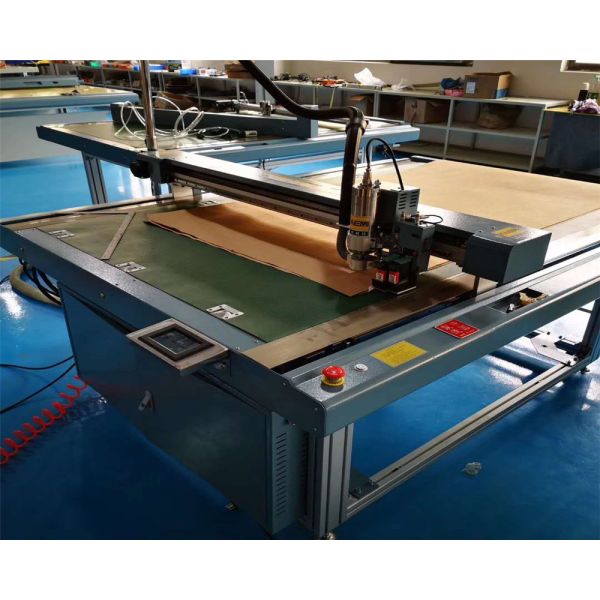

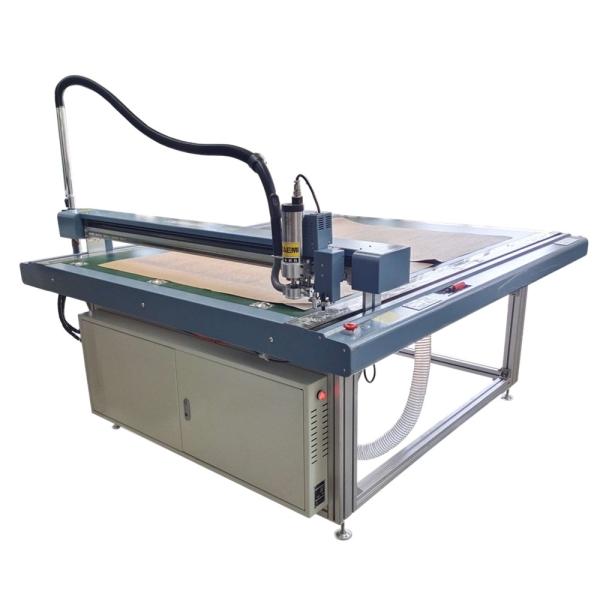

6mm Max Cutting Thickness 1500x1200mm Cutting Scope 500-1800mm/s Cutting Speed Template Cutter Machine for PVC Acrylic Fiber
6mm Max Cutting Thickness 1500x1200mm Cutting Scope 500-1800mm/s Cutting Speed Template Cutter Machine for PVC Acrylic Fiber
6mm Max Cutting Thickness 1500x1200mm Cutting Scope 500-1800mm/s Cutting Speed Template Cutter Machine for PVC Acrylic Fiber
6mm Max Cutting Thickness 1500x1200mm Cutting Scope 500-1800mm/s Cutting Speed Template Cutter Machine for PVC Acrylic Fiber
6mm Max Cutting Thickness 1500x1200mm Cutting Scope 500-1800mm/s Cutting Speed Template Cutter Machine for PVC Acrylic Fiber
6mm Max Cutting Thickness 1500x1200mm Cutting Scope 500-1800mm/s Cutting Speed Template Cutter Machine for PVC Acrylic Fiber
6mm Max Cutting Thickness 1500x1200mm Cutting Scope 500-1800mm/s Cutting Speed Template Cutter Machine for PVC Acrylic Fiber
6mm Max Cutting Thickness 1500x1200mm Cutting Scope 500-1800mm/s Cutting Speed Template Cutter Machine for PVC Acrylic Fiber
6mm Max Cutting Thickness 1500x1200mm Cutting Scope 500-1800mm/s Cutting Speed Template Cutter Machine for PVC Acrylic Fiber
6mm Max Cutting Thickness 1500x1200mm Cutting Scope 500-1800mm/s Cutting Speed Template Cutter Machine for PVC Acrylic Fiber
6mm Max Cutting Thickness 1500x1200mm Cutting Scope 500-1800mm/s Cutting Speed Template Cutter Machine for PVC Acrylic Fiber
6mm Max Cutting Thickness 1500x1200mm Cutting Scope 500-1800mm/s Cutting Speed Template Cutter Machine for PVC Acrylic Fiber
Specifications
Place of Origin :
Hubei, China
Brand Name :
KAEMI or GM
Price :
$4,290.00/sets 1-2 sets
Condition :
New
Applicable Industries :
Hotels, Garment Shops, Manufacturing Plant, Farms, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton
Weight (KG) :
400
Showroom Location :
Viet Nam
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
2 years
Core Components :
Engine, Motor, Drivers and Motherboard
Warranty :
1 Year, For the Whole Machine
Product Name :
6mm Max PVC Epoxy Resin Acrylic Fiber Cutting Milling Machine Cutter
Cutting Machine Frame and Case :
Blue Frame+Silver Case
Machine Material :
All Aluminum Countertops
Cutting Materials :
PVC, PP,POM,Acrylic, PET, Kraft, etc
Cut Tools :
Mill-cutter, Graver, Driller, Pen
Cutting Scope :
1500*1200mm
Cutting Thickness :
≤1.5mm-6.0mm
Cutting Speed :
500-1800mm/s
Cutting Machine Size :
2000*1570*1100mm
Applicable Fields or Industries :
Clothing,Bags, Handbags,Furniture,Car Decoration,Paper Boxes
Description
6mm Max PVC Epoxy Resin Acrylic Fiber Cutting Milling Machine Cutter
6mm Max Cutting Thickness 1500x1200mm Cutting Scope 500-1800mm/s Cutting Speed Template Cutter Machine for PVC Acrylic Fiber 6mm Max Cutting Thickness 1500x1200mm Cutting Scope 500-1800mm/s Cutting Speed Template Cutter Machine for PVC Acrylic Fiber
Key Features
  • All-aluminum profile fuselage: Compact, reasonable design for enhanced stability
  • Smart accidental power off/power cut data recovery system: Prevents material waste
  • One-key intelligent fixture with multi-point zone adsorption system
  • Multi-layer cutting capability in single operation
  • Integrated floating pressure foot and vacuum cleaning technology
  • Flexible modification system for cutting starting points and sequence
  • Independent templates editing and designing system
Technical Specifications
Model GM-1509M5 GM-1512M5 GM1812M5
Cutting Window (Fabric Scope) 1500*900mm 1500*1200mm 1800*1200mm
Overall Dimension 2000*1570*1100mm 2000*1770*1100mm 2300*1770*1100mm
Cutting Speed 500-1800mm/s
Cutting Thickness ≤1.5mm-6.0mm
Cutting Materials PVC, PP, POM, Acrylic, PET, Kraft, etc.
Processing Methods Mill, Cut, Drill, Plot
Cut Tools Mill-cutter, Graver, Driller, Pen
Repeatability Precision ≤0.01mm
Software Resolution 0.025mm/0.01mm/0.1mm (Optional)
Communication Port USB/RJ45 Ethernet
Buffer Memory Size 1M/8M/32M
File Formats DXF/HPGL/GPGL/PLT Formats Compatible
Control Panel 9 Keys and LED Display
Driver System Moons Motor driver; High-accuracy Lead Rail, Double Lead Rail on crossbeam
Supply Voltage AC 220V/110V±10%, 50Hz/3.5KW
Fuse Value 30A/35A
Working Environment -30~55℃ or -22~131℉
Fasten Vacuum/Clamping
Mill Motor 800W/1500W, Water-cooling/Air-cooling, 5000~240000 RPM Inverter
Waste Elimination 220V/1.4KW, Industrial 15L Vacuum Cleaner
Product Gallery
6mm Max Cutting Thickness 1500x1200mm Cutting Scope 500-1800mm/s Cutting Speed Template Cutter Machine for PVC Acrylic Fiber 6mm Max Cutting Thickness 1500x1200mm Cutting Scope 500-1800mm/s Cutting Speed Template Cutter Machine for PVC Acrylic Fiber 6mm Max Cutting Thickness 1500x1200mm Cutting Scope 500-1800mm/s Cutting Speed Template Cutter Machine for PVC Acrylic Fiber 6mm Max Cutting Thickness 1500x1200mm Cutting Scope 500-1800mm/s Cutting Speed Template Cutter Machine for PVC Acrylic Fiber 6mm Max Cutting Thickness 1500x1200mm Cutting Scope 500-1800mm/s Cutting Speed Template Cutter Machine for PVC Acrylic Fiber 6mm Max Cutting Thickness 1500x1200mm Cutting Scope 500-1800mm/s Cutting Speed Template Cutter Machine for PVC Acrylic Fiber
Packaging & Shipping
6mm Max Cutting Thickness 1500x1200mm Cutting Scope 500-1800mm/s Cutting Speed Template Cutter Machine for PVC Acrylic Fiber
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of experience.
Q: How do you pack these products?
A: Usually packed in wooden cases according to export standards or your specific requirements.
Q: Is it customizable?
A: Yes, we offer standard sizes and can customize according to your requirements.
Q: What after-sales service do you provide?
A: Professional after-sales team with 24-hour technical support via phone, email, or Skype.
Q: What is your lead time?
A: Spot goods: 2-4 days; Customization: 5-7 days.
