Specifications
Condition :
New
Applicable Industries :
Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton
Weight (KG) :
400
Showroom Location :
Viet Nam
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
2 years
Core Components :
Engine, Motor, Drivers and Motherboard
Place of Origin :
Hubei, China
Brand Name :
KAEMI or GM
Warranty :
1 Year, For the Whole Machine
Product Name :
1209P3 KAEMI Factory Garment Cutting Plotter
Cutting Machine Frame and Case :
Blue Frame+Silver Case
Machine Material :
All Aluminum Countertops
Cutting Materials :
White Paper, Kraft, Plastic Board, Fiberboard, etc
Cut Tools :
HP45 Ink Box,Tungsten Steel Blade
Cutting Scope :
1200*900mm
Cutting Thickness :
≤3mm
Cutting Speed :
1200mm/s Max
Cutting Machine Size :
1600*1280*800mm
Price :
$3,075.00/sets 1-2 sets
Description

1209P3 Original Factory KAEMI Inkjet Cutter Garment Paper Pattern PVC Pattern Cutting Plotter

KAEMI Inkjet Cutter for Garment Paper Pattern and PVC Cutting 1200*900mm Cutting Scope

Product Description

KAEMI Inkjet Cutter for Garment Paper Pattern and PVC Cutting 1200*900mm Cutting ScopeMain Features:
1. Unique Inkjet and Cutting Double Track Tracking System
2. Unique Paper Card Abnormal Monitoring System
3. Cutting Starting Points and Cutting Sequence Display System
4. Automatic Paging System
5. Fault Detection System for Whole Machine

Model GM-1209P3 GM-1509P3 GM-1510P3 GM-1512P3
Cutting Window(Fabric Scope) 1200*900mm 1500*900mm 1500*1000mm 1500*1200mm
Overall Dimension(mm) 1600*1280*800 1900*1280*800 1900*1455*800 1900*1700*800
Max Speed 1200mm/s 1200mm/s 1200mm/s 1200mm/s
Materials Fasten Vacuum Adsorption
Maximum Cutting Thickness 2mm
Cutting Materials White Paper, Kraft, Plastic Board, Fiberboard, etc
Printing Speed 60m2/h
Plot/Cut Tool HP45 Ink Box,Tungsten Steel Blade
Precision ≤0.01mm
Communication Port USB/RJ45 Ethernet; Shared Folder Print in LAN
File Formats HPGL(Compatible with Domestic and Interntional CAD Online)
Control Panel 9 Keys and LED Display(Chinese and English Switch)
Motor/Driver High Performance 3 Phrase Step-motor
Supply Voltage AC 220V/110V±10%, 50Hz
Working Environment Temperature:-30~50℃ or -22~122℉; Humidity: 10%--95% RH
Paper Thickness 150g-500g/m2
Application Areas Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting, etc

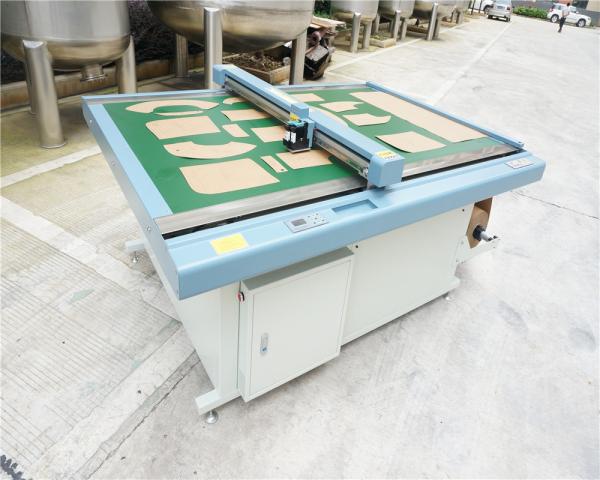

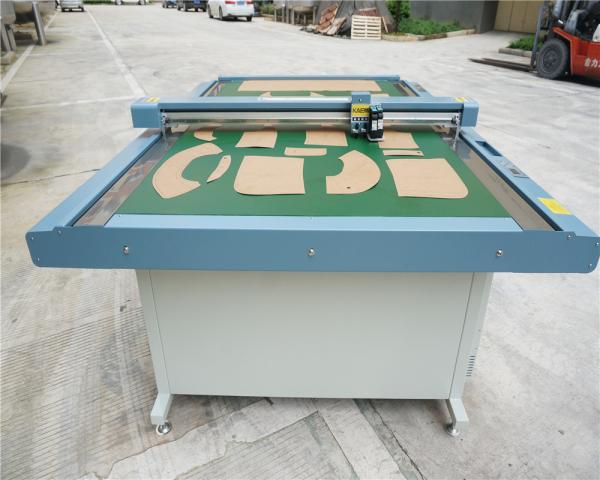

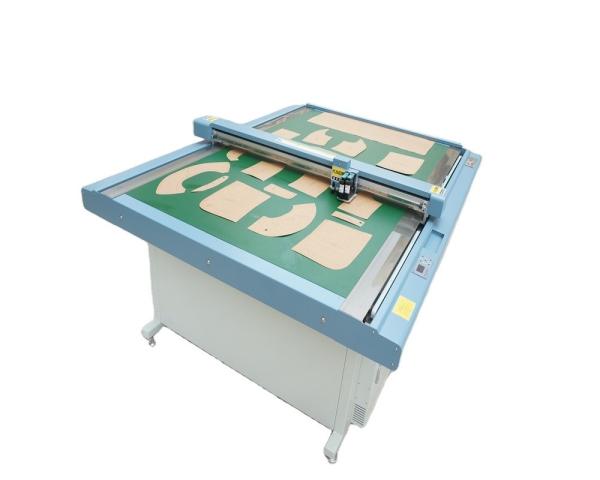

Product Show

KAEMI Inkjet Cutter for Garment Paper Pattern and PVC Cutting 1200*900mm Cutting ScopeKAEMI Inkjet Cutter for Garment Paper Pattern and PVC Cutting 1200*900mm Cutting ScopeKAEMI Inkjet Cutter for Garment Paper Pattern and PVC Cutting 1200*900mm Cutting ScopeKAEMI Inkjet Cutter for Garment Paper Pattern and PVC Cutting 1200*900mm Cutting ScopeKAEMI Inkjet Cutter for Garment Paper Pattern and PVC Cutting 1200*900mm Cutting Scope

Packaging & Shipping

KAEMI Inkjet Cutter for Garment Paper Pattern and PVC Cutting 1200*900mm Cutting Scope

Related Products

KAEMI Inkjet Cutter for Garment Paper Pattern and PVC Cutting 1200*900mm Cutting Scope

KAEMI Inkjet Cutter for Garment Paper Pattern and PVC Cutting 1200*900mm Cutting Scope

Company Information

KAEMI Inkjet Cutter for Garment Paper Pattern and PVC Cutting 1200*900mm Cutting Scope

Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China’s garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry, adopts a novel design different from the domestic traditional cutting machine, and fully experiences the design principle of "good at core, simple in shape". After the first continuous drum cutter came into being in the middle part of China , we successively developed the sample cutter for the luggage industry and continuous cutting garment sample cutter.

"The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend that the world manufacturing
industry is transferring to the middle part of the world, and has established a research and development team composed of doctors and senior engineers and other high-quality talents,and insists that "innovation" is the eternal power of the development of GEMEI.

KAEMI Inkjet Cutter for Garment Paper Pattern and PVC Cutting 1200*900mm Cutting Scope

FAQ

KAEMI Inkjet Cutter for Garment Paper Pattern and PVC Cutting 1200*900mm Cutting Scope1. Q: Are you a manufacturer?
A: Yes, we are specializing in the r&d production for template cutter/inkjet cutter/pen writing cutter/cnc digital fabric cutter/graph plotter in this field for 10 years.
2. Q: How do you pack these products?
A: Usually packed in wooden case and can pack according to export standard or your requirement.
3. Q: Is it customizable?
A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.
4.Q: After-sales service
A: Yes, professional after-sales team and 24-hour technical support by phone, email or skype
5.Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days
