Advanced Super Servo Motor System Auto Roller Paper Feeding Inkjet Paper Pattern Cutter

Specifications

Type :

Inkjet Printer

Print Dimension :

1400*1000mm

Applicable Industries :

Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producto

Condition :

New

Plate Type :

Flatbed Printer

Place of Origin :

Hubei, China

Brand Name :

KAEMI or GM

Use :

Paper Printer, Label Printer, Card Printer, Bill Printer, Cloths Printer, Pattern Template Printer and Cutter

Automatic Grade :

Automatic

Color & Page :

single color

Voltage :

AC 220V/110V±10%, 50Hz/3.5KW

Dimensions(L*W*H) :

1900*1455*800mm

Weight :

459 KG

Warranty :

1 Year

Ink Type :

HP45 Universal Type

Key Selling Points :

Multifunctional

Marketing Type :

New Product 2019

Machinery Test Report :

Provided

Video outgoing-inspection :

Provided

Warranty of core components :

2 years

Core Components :

Motor, Engine, Drivers and Motherboard

Product Name :

Auto Roller Paper Feeding Inkjet Paper Pattern Cutter

Cutting Machine Frame and Case :

Blue Frame+Red and Black Case

Machine Material :

All Aluminum Countertops

Cutting Materials :

White Paper, Kraft, Plastic Board, Fiberboard, etc

Cut Tools :

HP45 Ink Box,Tungsten Steel Blade

Cutting Scope :

1400*1000mm

Cutting Thickness :

≤3mm

Cutting Speed :

1200mm/s Max

Cutting Machine Size :

2000*1480*1100mm

Special Functions :

Rollar Paper Feeding Automatic Paper Feeding

Price :

$10,000.00/sets 1-2 sets

MOQ :

1set

Description

Super Servo Motor System Auto Roller Paper Feeding Inkjet Paper Pattern Cutter

Product Description

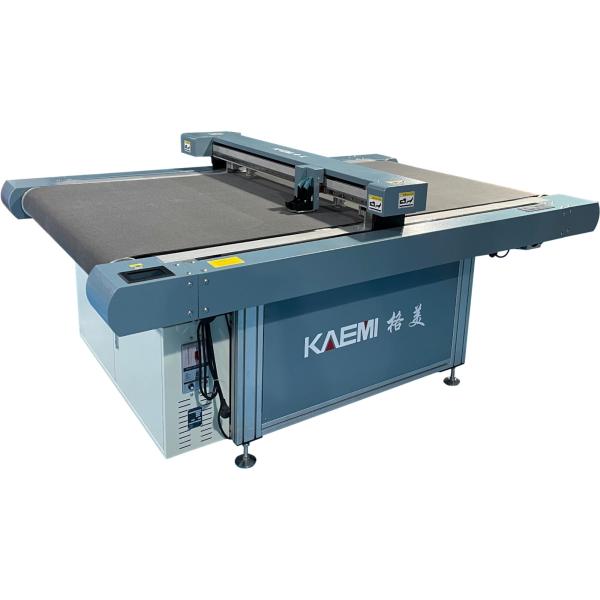

GM1410GP Automatic Paper Feeding Flatbed Pattern Cutting Plotter

Main Features 1. Unique Inkjet and Cutting Double Track Tracking System 2. Unique Paper Card Abnormal Monitoring System 3. Cutting Starting Points and Cutting Sequence Display System 4. Automatic Paging System 5. Fault Detection System for Whole Machine 6. Roller Automatic Paper Feeding System Dual Knife Version Optional, can do Full Cut and Halft Cut at the same time or Do One Knife One Pen Holder to have inkjet cutting and pen drawing at the same time(Dual knife version add 400 USD) Technical Parameters Model GM-1509GP GM-1410GP GM-1512GP Cutting Window(Fabric Scope) 1200*900mm 1400*1000mm 1500*1200mm Overall Dimension(mm) 1800*1280*1100 2000*1455*1100 2100*1700*1100 Max Speed 1200mm/s Materials Fasten Vacuum Adsorption Maximum Cutting Thickness 2mm Cutting Materials White Paper, Kraft, Plastic Board, Fiberboard, etc Printing Speed 60㎡/h Plot/Cut Tool HP45 Ink Box,Tungsten Steel Blade Precision ≤0.01mm Communication Port USB/RJ45 Ethernet; Shared Folder Print in LAN File Formats HPGL(Compatible with Domestic and Interntional CAD Online) Control Panel 9 Keys and LED Display(Chinese and English Switch) Motor/Driver High Performance 3 Phrase Step-motor Supply Voltage AC 220V/110V±10%, 50Hz Working Environment Temperature:-30~50℃ or -22~122℉; Humidity10%--95% RH Paper Thickness 150g-500g/㎡ Paper Feeding Mode Roller Automatic Paper Feeding Application Areas Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting, etc

Company Profile

Wuhan Gemei Joint Technology Co., Ltd.

is located in the national economic development Zone - Wuhan Linkong economic development zone in the beautiful River City. It is a specialized company specializing in the research and development, production, sales and service of automation equipment for the industries of clothing,bags and shoes. The company shoulders the historical mission of "changing traditional industries with high technology", and is committed to providing CAM / CAD integrated solutions for garment,luggage,footwear and other enterprises. Gemei is also a high-tech enterprise and a software enterprise in Hubei Province, an "information port" certification enterprise and an entrepreneurship enterprise for overseas students in Wuhan City.

Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China’s garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry, adopts a novel design different from the domestic traditional cutting machine, and fully experiences the design principle of "good at core, simple in shape". After the first continuous drum cutter came into being in the middle part of China , we successively developed the sample cutter for the luggage industry and continuous cutting garment sample cutter. "The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend that the world manufacturing industry is transferring to the middle part of the world, and has established a research and development team composed of doctors and senior engineers and other high-quality talents,and insists that "innovation" is the eternal power of the development of GEMEI.

Packing & Delivery

Exhibition

Certifications

FAQ

1. Q: Are you a manufacturer? A: Yes, we are specializing in the r&d production for template cutter/inkjet cutter/pen writing cutter/cnc digital fabric cutter/graph plotter in this field for 10 years. 2. Q: How do you pack these products? A: Usually packed in wooden case and can pack according to export standard or your requirement. 3. Q: Is it customizable? A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements. 4.Q: After-sales service A: Yes, professional after-sales team and 24-hour technical support by phone, email or skype 5.Q: What is your lead time? A: Spot goods usually take 2-4 days, and customization takes 5-7 days
