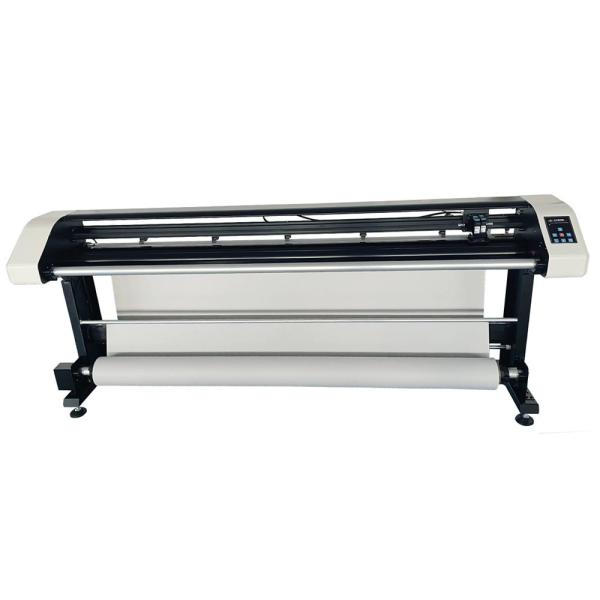

Large Format Inkjet Printing Plotter with Tungsten Cutting Blade and Automatic Printing for 190-250cm Width
Large Format Inkjet Printing Plotter with Tungsten Cutting Blade and Automatic Printing for 190-250cm Width
Large Format Inkjet Printing Plotter with Tungsten Cutting Blade and Automatic Printing for 190-250cm Width
Large Format Inkjet Printing Plotter with Tungsten Cutting Blade and Automatic Printing for 190-250cm Width
Large Format Inkjet Printing Plotter with Tungsten Cutting Blade and Automatic Printing for 190-250cm Width
Large Format Inkjet Printing Plotter with Tungsten Cutting Blade and Automatic Printing for 190-250cm Width
Large Format Inkjet Printing Plotter with Tungsten Cutting Blade and Automatic Printing for 190-250cm Width
Large Format Inkjet Printing Plotter with Tungsten Cutting Blade and Automatic Printing for 190-250cm Width
Large Format Inkjet Printing Plotter with Tungsten Cutting Blade and Automatic Printing for 190-250cm Width
Large Format Inkjet Printing Plotter with Tungsten Cutting Blade and Automatic Printing for 190-250cm Width
Large Format Inkjet Printing Plotter with Tungsten Cutting Blade and Automatic Printing for 190-250cm Width
Large Format Inkjet Printing Plotter with Tungsten Cutting Blade and Automatic Printing for 190-250cm Width
Specifications
Place of Origin :
Hubei, China
Brand Name :
KAEMI or OEM
Price :
$1,299.00/sets 1-2 sets
MOQ :
1set
Type :
Inkjet Printer
Print Dimension :
Maximum 190cm to 250cm Width Printing Scope Sizes
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Construction works , Advertising Company
Condition :
New
Plate Type :
Roll-to-Roll Printer
Use :
Paper Printer, Label Printer, Cloths Printer, Paper Pattern/Graph/Contour Fast Printing
Automatic Grade :
Automatic
Color & Page :
single color
Voltage :
220v
Dimensions(L*W*H) :
245*65*110cm
Weight :
85 KG
Warranty :
1 Year
Ink Type :
Pigment Ink
Key Selling Points :
large-format
Marketing Type :
New Product 2023
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Pump, Engine, Mother Board, Driver
Product Name :
Inkjet Printing Plotter with Cutting Down 190-250cm Width
Printing Width :
Maximum 190cm to 250cm Printing Scope Optional
Ink Cartridge :
Dual Head HP45 Ink Cartridge(4 Heads Optional)
Cutting Function :
Yes,with Cutting Blade to Cut Down(Cannot Cut Each Paper Pattern)
Printing Speed :
80-220 sqm/h, Depends on Real Printing File
Cutting Blade :
Fine Quality Tungsten Cutting Blade
Connection Port :
Both USB and LAN Port(Ethernet Port)
Applicable Paper Rolls :
Printing:40 to 250gsm; Cutting 70-150gsm
Compatible Files Formats :
All CAD File Formats Including PLT, DXF, HGPL, etc
Applicable Fields :
Garments, Shoes, Bags, Furniture, Car Interiors, etc
Description
Large-Format Tungsten Cutting Blade Inkjet Printing Plotter
High-performance industrial plotter with cutting functionality for widths from 190-250cm
Large Format Inkjet Printing Plotter with Tungsten Cutting Blade and Automatic Printing for 190-250cm Width
Key Features
  • High-speed servo control with full closed-loop positioning for accurate output
  • Independent output manager supports file background automatic queuing printing
  • Advanced SOPC technology for enhanced performance
  • Breakpoint resume function ensures reliable data transmission and printing
  • Automatic printing online with tungsten cutting blade
  • Two, three, or four printing heads optional configurations
Large Format Inkjet Printing Plotter with Tungsten Cutting Blade and Automatic Printing for 190-250cm Width Large Format Inkjet Printing Plotter with Tungsten Cutting Blade and Automatic Printing for 190-250cm Width Large Format Inkjet Printing Plotter with Tungsten Cutting Blade and Automatic Printing for 190-250cm Width Large Format Inkjet Printing Plotter with Tungsten Cutting Blade and Automatic Printing for 190-250cm Width Large Format Inkjet Printing Plotter with Tungsten Cutting Blade and Automatic Printing for 190-250cm Width Large Format Inkjet Printing Plotter with Tungsten Cutting Blade and Automatic Printing for 190-250cm Width Large Format Inkjet Printing Plotter with Tungsten Cutting Blade and Automatic Printing for 190-250cm Width
Size Information
Hot Selling Sizes: 190cm (72inch) and 210cm (80inch) printing width
For 190cm width version, compatible with paper rolls within 190cm including 190/180/160/120cm width versions
Model Specifications
Dual Printing Heads Type GMH2-190-2 GMH2-210-2 GMH2-230-2 GMH2-250-2
Four Printing Heads Type GMH2-190-4 GMH2-210-4 GMH2-230-4 GMH2-250-4
Technical Specifications
Printing Width According to model number, actual printing width varies (e.g., GMH1-190-2: 185-190cm, GMH1-190-4: 180-185cm)
Feeding Paper Width 5-10cm bigger than maximum printing width
Printing Speed Two-way High Speed: 93㎡/h, 131㎡/h, 163㎡/h
Printing Format HPGL Drawing Language, compatible with domestic and foreign CAD software, customizable formats available
Print Resolution 150-600DPI
Type of Nozzle HP45A
Cutting Function Tungsten cutting blade for cut-down (cannot cut individual patterns)
Line Quality Clear, smooth, no seam, optional 1-8 lines
Nozzle Cleaning Automatic cleaning before printing
Paper Loading Front heightening device supports paper rolls with diameter of 28cm
Paper Feeding Hidden infrared precise paper feeding system, continuous 700 meters without deviation
Paper Handling Unattended automatic paper receiving and feeding
Print Media 40-80g ordinary roll printing paper; 80-250g single brown paper
Communication Interface Network port + USB, multiple computers can separately control printing
Power Supply 220V/50Hz
Control Panel Press key operation, simple, convenient, durable
Machine Structure Die standardized metal structure, high precision and long life
Output Center Support manual or automatic printing, optional ink-saving mode, support online printing
Large Format Inkjet Printing Plotter with Tungsten Cutting Blade and Automatic Printing for 190-250cm Width Large Format Inkjet Printing Plotter with Tungsten Cutting Blade and Automatic Printing for 190-250cm Width
Available Models
Three Main Styles Available:
1. Normal dual head/4 head HP45 ink cartridge printing plotter
2. Continuous refill big capacity ink cartridge EPSON head printing plotter
3. Combo type dual head HP45 ink cartridge printing and cutting plotter (can cut individual paper patterns)
Large Format Inkjet Printing Plotter with Tungsten Cutting Blade and Automatic Printing for 190-250cm Width Large Format Inkjet Printing Plotter with Tungsten Cutting Blade and Automatic Printing for 190-250cm Width Large Format Inkjet Printing Plotter with Tungsten Cutting Blade and Automatic Printing for 190-250cm Width
Company Profile
Wuhan Gemei Joint Technology Co., Ltd. is located in Wuhan Linkong Economic Development Zone and specializes in research, development, production, sales and service of automation equipment for clothing, bags and shoes industries.
As a high-tech enterprise in Hubei Province, Gemei is committed to providing CAM/CAD integrated solutions and has obtained multiple software copyright and patent certificates.
Large Format Inkjet Printing Plotter with Tungsten Cutting Blade and Automatic Printing for 190-250cm Width Large Format Inkjet Printing Plotter with Tungsten Cutting Blade and Automatic Printing for 190-250cm Width Large Format Inkjet Printing Plotter with Tungsten Cutting Blade and Automatic Printing for 190-250cm Width
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10+ years of experience.
Q: How do you pack these products?
A: Usually packed in wooden cases according to export standards, with custom packaging available upon request.
Q: Is it customizable?
A: Yes, we offer standard sizes commonly used in the industry and can customize according to your specific requirements.
Q: What about after-sales service?
A: We provide professional after-sales support with 24-hour technical assistance via phone, email, or Skype.
Q: What is your lead time?
A: Spot goods typically take 2-4 days, while custom orders require 5-7 days.
