Auto Materials Feeding CNC Digital Cutter with 3.5KW Power and 2500x1600mm Cutting Scope
Auto Materials Feeding CNC Digital Cutter with 3.5KW Power and 2500x1600mm Cutting Scope
Auto Materials Feeding CNC Digital Cutter with 3.5KW Power and 2500x1600mm Cutting Scope
Auto Materials Feeding CNC Digital Cutter with 3.5KW Power and 2500x1600mm Cutting Scope
Auto Materials Feeding CNC Digital Cutter with 3.5KW Power and 2500x1600mm Cutting Scope
Auto Materials Feeding CNC Digital Cutter with 3.5KW Power and 2500x1600mm Cutting Scope
Auto Materials Feeding CNC Digital Cutter with 3.5KW Power and 2500x1600mm Cutting Scope
Auto Materials Feeding CNC Digital Cutter with 3.5KW Power and 2500x1600mm Cutting Scope
Auto Materials Feeding CNC Digital Cutter with 3.5KW Power and 2500x1600mm Cutting Scope
Auto Materials Feeding CNC Digital Cutter with 3.5KW Power and 2500x1600mm Cutting Scope
Auto Materials Feeding CNC Digital Cutter with 3.5KW Power and 2500x1600mm Cutting Scope
Auto Materials Feeding CNC Digital Cutter with 3.5KW Power and 2500x1600mm Cutting Scope
Specifications
Place of Origin :
Hubei, China
Brand Name :
KAEMI or GM
Price :
$15,000.00/sets 1-2 sets
MOQ :
1set
Applicable Industries :
Hotels, Garment Shops, Machinery Repair Shops, Home Use, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton
Showroom Location :
Viet Nam
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
2 years
Core Components :
Engine, Motor, Drivers and Motherboard
Condition :
New
Application :
Clothing,Footwear,Bags, etc Desgin and Cutting
Automatic Grade :
Automatic
Production Capacity :
N/A
Voltage :
AC 220V/380V±10%, 50Hz/3.5KW
Power :
3.5KW
Dimension(L*W*H) :
3420*2350*1220mm
Weight :
1350 KG
Features :
Fabric Cutter and Auto Materials Feeding
Warranty :
1 Year
Product Name :
Digital Fabric Cutter Multile Layers Cutting
Cutting Machine Frame and Case :
Blue Frame+Silver Case
Machine Material :
All Aluminum Countertops
Cutting Materials :
White Paper, Kraft, Plastic Board, Fiberboard, etc
Cut Tools :
HP45 Ink Box,Tungsten Steel Blade
Cutting Scope :
2500*1600mm
Cutting Thickness :
≤35mm
Cutting Speed :
100-1200mm/s
Cutting Machine Size :
3420*2350*1220mm
Description
Auto Fabrics Feeding CNC Digital Cutter
Blue Frame Silver Case with 50Hz/3.5KW Voltage
Product Overview
Auto Fabrics Feeding CNC Digital Cutter Multiple Layers Digital Cutter designed for precision cutting of various materials with automated feeding system.
Main Features
  • Continuous Feeding System
  • Independent Operator-Touch Screen Control
  • Various Scissors/Punching Devices
  • Digital Image Cutting Positioning System
  • Modular Partition Table and All-aluminum Profile Fuselage
  • Imported Servo Motor/Drive System
  • Remote Wireless Remote Control Operating System
  • Intelligent Suction Zoning System
Technical Specifications
Model GM-2516DK5 GM-2518DK5 GM3016DK5
Cutting Window (Fabric Scope) 2500*1600mm 2500*1800mm 3000*1600mm
Overall Dimension (mm) 3420*2350*1220 3420*2550*1220 3920*2350*1220
Materials Fasten Vacuum Adsorption
Max Cutting Thickness ≤35mm
Cutting Materials Flexible Materials (Knitted Fabrics, PU, Leather, Sponge, Hard Materials, Cardboard, PVC Board, Various Fiber Composite Materials, etc.)
Cutting Speed 100mm~1200mm/s (Speed Varies According to Cutting Materials)
Pen Type/Knife Type Milling Cutter, Nicking Tool, Drill, Pen
Repeatability Precision ≤0.01mm
Communication Port USB/RJ45 Ethernet, Shared Folder Print in LAN
Buffer Memory Size 1M/8M/32M (Can buffer more than 1 page)
File Formats DXF/HPGL/HPG/PLT Formats Compatible
Control Panel Color Multilingual Touch Screen
Feeding Way Roller and Crawler Feed Automatically
Supply Voltage AC 220V/380V±10%, 50Hz
Fuse Value 30A/35A
Working Environment Temperature: 0~40℃ or 32~104℉; Humidity: 20%--80% RH, No Condensation
Location Mode Cross Laser, CCD Positioning
Power Consumption The Control Part is 2.2KW/h, and the Vacuum Part is 2.2-7.5KW/h
Application Areas Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Advertising, Box Cutting, etc.

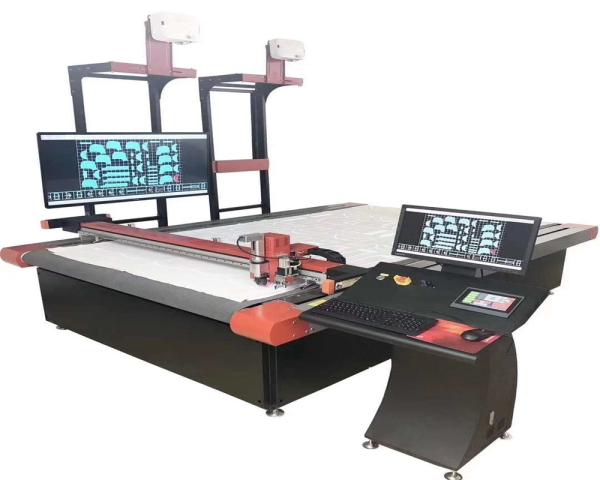

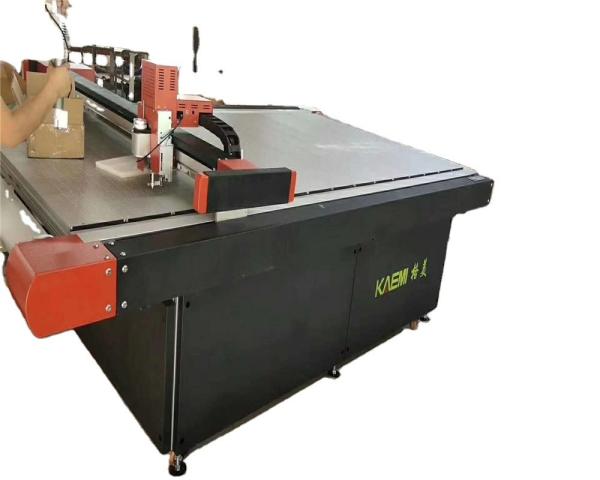

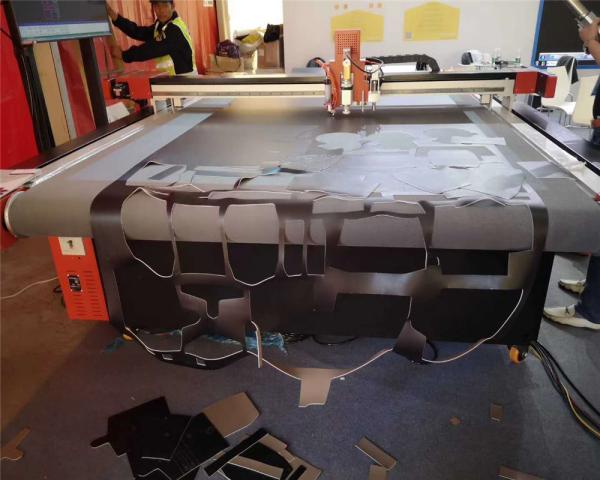

Product Images
Auto Materials Feeding CNC Digital Cutter with 3.5KW Power and 2500x1600mm Cutting Scope Auto Materials Feeding CNC Digital Cutter with 3.5KW Power and 2500x1600mm Cutting Scope Auto Materials Feeding CNC Digital Cutter with 3.5KW Power and 2500x1600mm Cutting Scope
Manufacturer Information
Wuhan Gemei Joint Technology Co., Ltd. is located in the national economic development Zone - Wuhan Linkong economic development zone in the beautiful River City. It is a specialized company specializing in the research and development, production, sales and service of automation equipment for the industries of clothing, bags and shoes.
The company shoulders the historical mission of "changing traditional industries with high technology", and is committed to providing CAM / CAD integrated solutions for garment, luggage, footwear and other enterprises. Gemei is also a high-tech enterprise and a software enterprise in Hubei Province, an "information port" certification enterprise and an entrepreneurship enterprise for overseas students in Wuhan City.
Auto Materials Feeding CNC Digital Cutter with 3.5KW Power and 2500x1600mm Cutting Scope Auto Materials Feeding CNC Digital Cutter with 3.5KW Power and 2500x1600mm Cutting Scope Auto Materials Feeding CNC Digital Cutter with 3.5KW Power and 2500x1600mm Cutting Scope Auto Materials Feeding CNC Digital Cutter with 3.5KW Power and 2500x1600mm Cutting Scope
Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China's garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry, adopts a novel design different from the domestic traditional cutting machine, and fully experiences the design principle of "good at core, simple in shape".
Packing & Delivery
Auto Materials Feeding CNC Digital Cutter with 3.5KW Power and 2500x1600mm Cutting Scope Auto Materials Feeding CNC Digital Cutter with 3.5KW Power and 2500x1600mm Cutting Scope Auto Materials Feeding CNC Digital Cutter with 3.5KW Power and 2500x1600mm Cutting Scope
Exhibition & Events
Auto Materials Feeding CNC Digital Cutter with 3.5KW Power and 2500x1600mm Cutting Scope Auto Materials Feeding CNC Digital Cutter with 3.5KW Power and 2500x1600mm Cutting Scope Auto Materials Feeding CNC Digital Cutter with 3.5KW Power and 2500x1600mm Cutting Scope Auto Materials Feeding CNC Digital Cutter with 3.5KW Power and 2500x1600mm Cutting Scope Auto Materials Feeding CNC Digital Cutter with 3.5KW Power and 2500x1600mm Cutting Scope Auto Materials Feeding CNC Digital Cutter with 3.5KW Power and 2500x1600mm Cutting Scope
Certifications
Auto Materials Feeding CNC Digital Cutter with 3.5KW Power and 2500x1600mm Cutting Scope Auto Materials Feeding CNC Digital Cutter with 3.5KW Power and 2500x1600mm Cutting Scope Auto Materials Feeding CNC Digital Cutter with 3.5KW Power and 2500x1600mm Cutting Scope
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we are specializing in the R&D production for template cutter/inkjet cutter/pen writing cutter/CNC digital fabric cutter/graph plotter in this field for 10 years.
Q: How do you pack these products?
A: Usually packed in wooden case and can pack according to export standard or your requirement.
Q: Is it customizable?
A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.
Q: After-sales service
A: Yes, professional after-sales team and 24-hour technical support by phone, email or Skype.
Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days.
