750KG CNC Digital Cutter with 2500*1800mm Cutting Area and Tungsten Steel Blade for Fabric Cutting
750KG CNC Digital Cutter with 2500*1800mm Cutting Area and Tungsten Steel Blade for Fabric Cutting
750KG CNC Digital Cutter with 2500*1800mm Cutting Area and Tungsten Steel Blade for Fabric Cutting
750KG CNC Digital Cutter with 2500*1800mm Cutting Area and Tungsten Steel Blade for Fabric Cutting
750KG CNC Digital Cutter with 2500*1800mm Cutting Area and Tungsten Steel Blade for Fabric Cutting
750KG CNC Digital Cutter with 2500*1800mm Cutting Area and Tungsten Steel Blade for Fabric Cutting
750KG CNC Digital Cutter with 2500*1800mm Cutting Area and Tungsten Steel Blade for Fabric Cutting
750KG CNC Digital Cutter with 2500*1800mm Cutting Area and Tungsten Steel Blade for Fabric Cutting
750KG CNC Digital Cutter with 2500*1800mm Cutting Area and Tungsten Steel Blade for Fabric Cutting
750KG CNC Digital Cutter with 2500*1800mm Cutting Area and Tungsten Steel Blade for Fabric Cutting
750KG CNC Digital Cutter with 2500*1800mm Cutting Area and Tungsten Steel Blade for Fabric Cutting
750KG CNC Digital Cutter with 2500*1800mm Cutting Area and Tungsten Steel Blade for Fabric Cutting
Specifications
Place of Origin :
Hubei, China
Brand Name :
KAEMI or GM
Price :
$15,000.00/sets 1-2 sets
MOQ :
1set
Condition :
New
Applicable Industries :
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Printing Shops, Construction works , Other, Advertising Company
Weight (KG) :
750
Showroom Location :
Turkey, Viet Nam, Bangladesh, Cambodia
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
Engine, Motor, Drivers
Warranty :
1 Year
Product Name :
2500*1800mm CNC Digital Cutter Machine
Cutting Machine Frame and Case :
Blue Frame+Silver Case
Machine Material :
All Aluminum Countertops
Cutting Materials :
White Paper, Kraft, Plastic Board, Fiberboard, etc
Cut Tools :
HP45 Ink Box,Tungsten Steel Blade
Cutting Scope :
2500*1600mm
Cutting Thickness :
≤35mm
Cutting Speed :
100-1200mm/s
Cutting Machine Size :
3420*2350*1220mm
Description

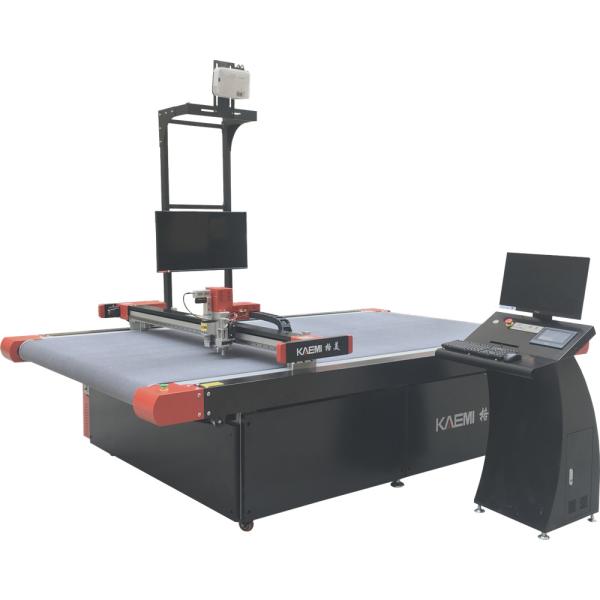

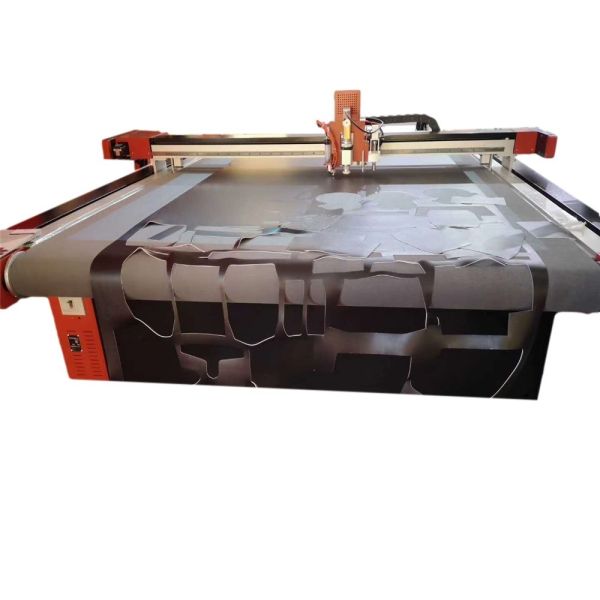

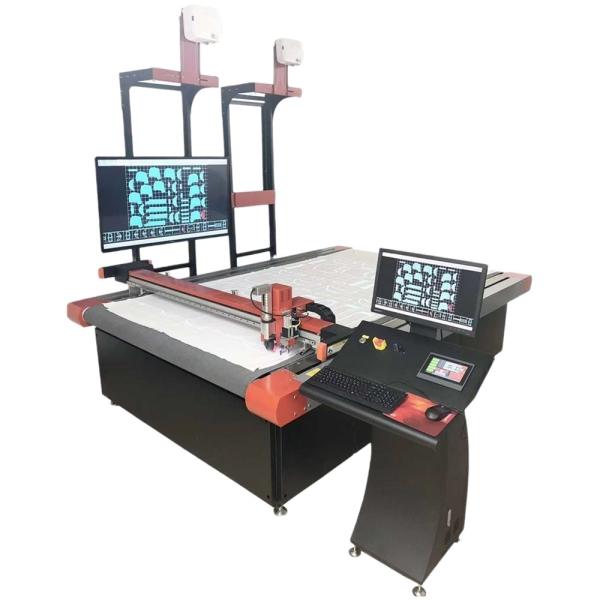

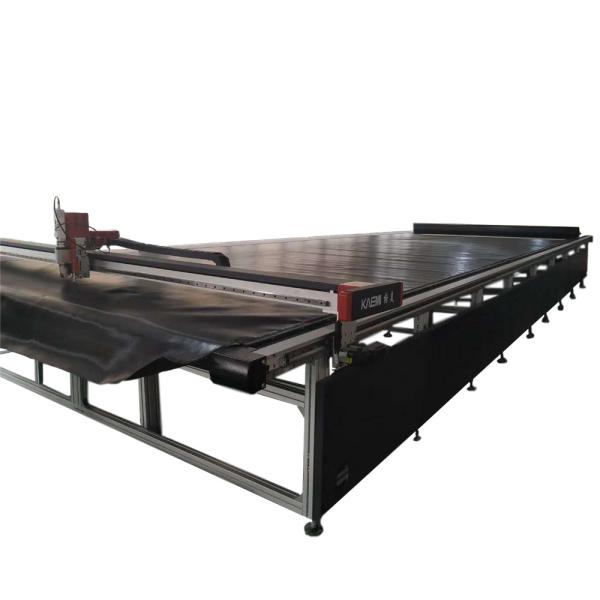

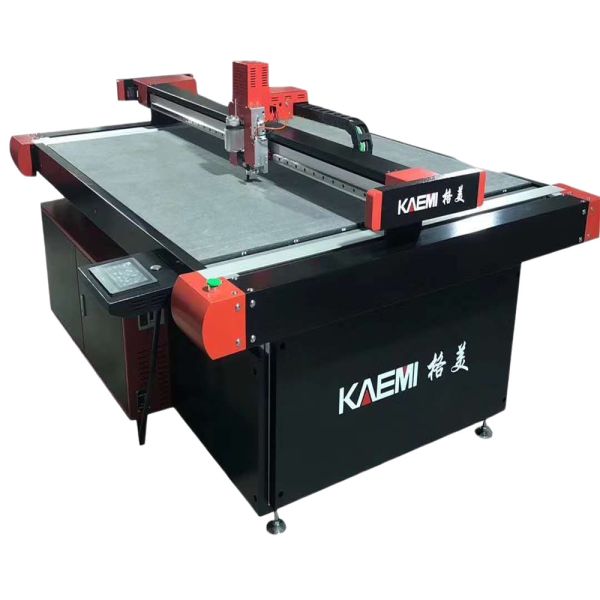

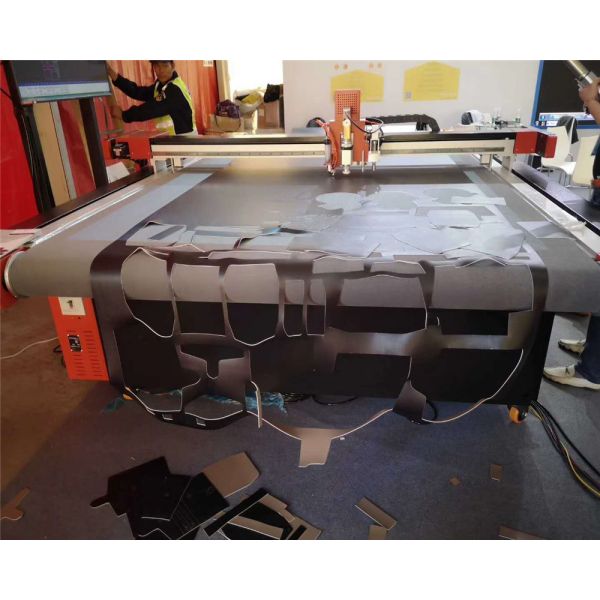

750KG CNC Digital Cutting Machine for Textiles and Materials
This professional CNC digital cutting machine features a 2500*1800mm cutting area and is designed for precision cutting of embroidery textiles, PE lace, fabric, cloth, leather, and various other materials.
Key Features
  • Continuous Feeding System
  • Independent Operator Touch Screen Control
  • Various Scissors and Punching Devices
  • Digital Image Cutting Positioning System
  • Modular Partition Table with All-Aluminum Profile Fuselage
  • Imported Servo Motor and Drive System
  • Remote Wireless Remote Control Operating System
  • Intelligent Suction Zoning System
Technical Specifications
Model GM-2516DK5 GM-2518DK5 GM3016DK5
Cutting Area 2500*1600mm 2500*1800mm 3000*1600mm
Overall Dimensions 3420*2350*1220mm 3420*2550*1220mm 3920*2350*1220mm
Materials Fastening Vacuum Adsorption
Max Cutting Thickness ≤35mm
Cutting Materials Flexible Materials (Knitted Fabrics, PU, Leather, Sponge, Hard Materials, Cardboard, PVC Board, Various Fiber Composite Materials)
Cutting Speed 100mm~1200mm/s (Speed Varies According to Cutting Materials)
Tool Types Milling Cutter, Nicking Tool, Drill, Pen
Repeatability Precision ≤0.01mm
Communication Port USB/RJ45 Ethernet, Shared Folder Print in LAN
Buffer Memory Size 1M/8M/32M (Can buffer more than 1 page)
File Formats DXF/HPGL/HPG/PLT Formats Compatible
Control Panel Color Multilingual Touch Screen
Feeding Method Roller and Crawler Feed Automatically
Supply Voltage AC 220V/380V±10%, 50Hz
Fuse Value 30A/35A
Working Environment Temperature: 0~40℃ or 32~104℉; Humidity: 20%--80% RH, No Condensation
Location Mode Cross Laser, CCD Positioning
Power Consumption Control Part: 2.2KW/h, Vacuum Part: 2.2-7.5KW/h
Application Areas Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Advertising, Box Cutting
Product Images
750KG CNC Digital Cutter with 2500*1800mm Cutting Area and Tungsten Steel Blade for Fabric Cutting 750KG CNC Digital Cutter with 2500*1800mm Cutting Area and Tungsten Steel Blade for Fabric Cutting 750KG CNC Digital Cutter with 2500*1800mm Cutting Area and Tungsten Steel Blade for Fabric Cutting
Manufacturer Profile
Wuhan Gemei Joint Technology Co., Ltd. is located in Wuhan Linkong Economic Development Zone and specializes in the research, development, production, sales, and service of automation equipment for clothing, bags, and shoes industries. As a high-tech enterprise certified in Hubei Province, Gemei is committed to providing CAM/CAD integrated solutions and has obtained multiple software copyright and patent certificates.
750KG CNC Digital Cutter with 2500*1800mm Cutting Area and Tungsten Steel Blade for Fabric Cutting 750KG CNC Digital Cutter with 2500*1800mm Cutting Area and Tungsten Steel Blade for Fabric Cutting 750KG CNC Digital Cutter with 2500*1800mm Cutting Area and Tungsten Steel Blade for Fabric Cutting 750KG CNC Digital Cutter with 2500*1800mm Cutting Area and Tungsten Steel Blade for Fabric Cutting
Packaging & Delivery
750KG CNC Digital Cutter with 2500*1800mm Cutting Area and Tungsten Steel Blade for Fabric Cutting 750KG CNC Digital Cutter with 2500*1800mm Cutting Area and Tungsten Steel Blade for Fabric Cutting 750KG CNC Digital Cutter with 2500*1800mm Cutting Area and Tungsten Steel Blade for Fabric Cutting
Exhibition & Trade Shows
750KG CNC Digital Cutter with 2500*1800mm Cutting Area and Tungsten Steel Blade for Fabric Cutting 750KG CNC Digital Cutter with 2500*1800mm Cutting Area and Tungsten Steel Blade for Fabric Cutting 750KG CNC Digital Cutter with 2500*1800mm Cutting Area and Tungsten Steel Blade for Fabric Cutting 750KG CNC Digital Cutter with 2500*1800mm Cutting Area and Tungsten Steel Blade for Fabric Cutting 750KG CNC Digital Cutter with 2500*1800mm Cutting Area and Tungsten Steel Blade for Fabric Cutting 750KG CNC Digital Cutter with 2500*1800mm Cutting Area and Tungsten Steel Blade for Fabric Cutting
Certifications & Quality Standards
750KG CNC Digital Cutter with 2500*1800mm Cutting Area and Tungsten Steel Blade for Fabric Cutting 750KG CNC Digital Cutter with 2500*1800mm Cutting Area and Tungsten Steel Blade for Fabric Cutting 750KG CNC Digital Cutter with 2500*1800mm Cutting Area and Tungsten Steel Blade for Fabric Cutting
Frequently Asked Questions
Are you a manufacturer?
Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of experience in this field.
How do you pack these products?
Usually packed in wooden cases according to export standards, with customization available based on your requirements.
Is it customizable?
Yes, we offer standard sizes commonly used in the industry and can customize according to your specific requirements.
What about after-sales service?
We provide professional after-sales support with 24-hour technical assistance via phone, email, or Skype.
What is your lead time?
Spot goods typically take 2-4 days, while custom orders require 5-7 days for delivery.
