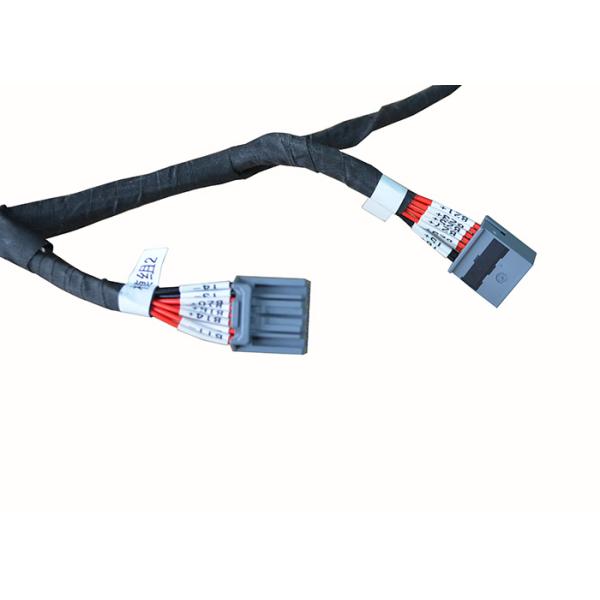

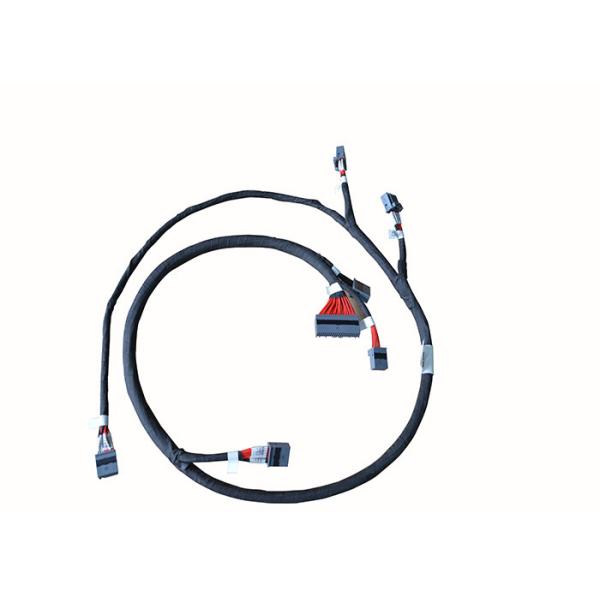

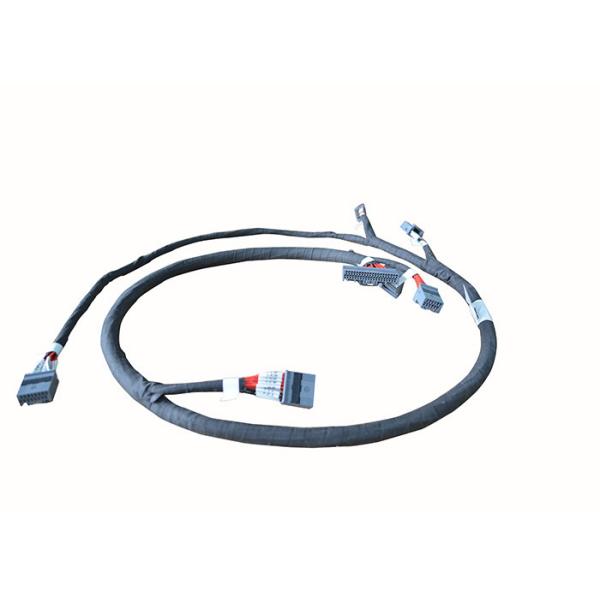

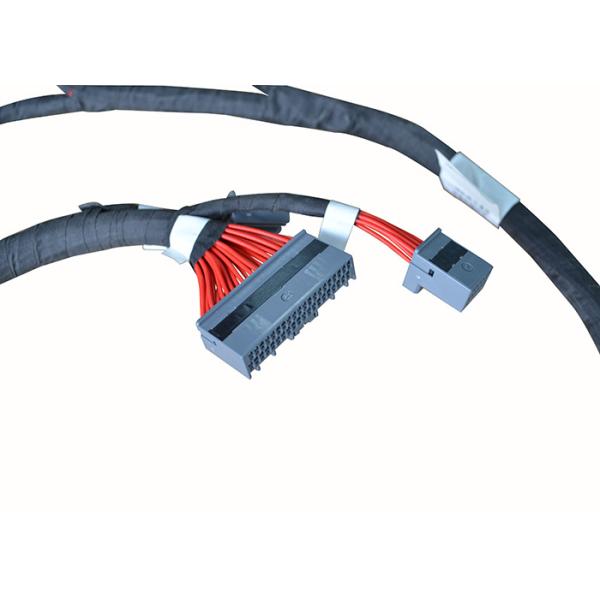

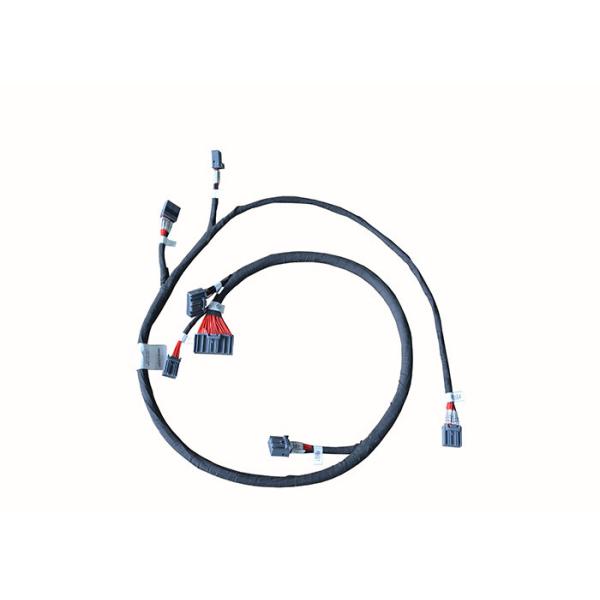

7Connectors Automotive Wiring Harness 150mm Multi Pins Vehicle Connection Insulation Wire Terminal Wire

Product introduction

Wire harnesses are compactly bundled wires and data circuits that function as the central nervous system of a vehicle. To ensure safety and basic functions (going, turning and stopping), as well as provide comfort and convenience, automobiles are equipped with various electronics which operate using control signals running on electrical power supplied from the battery. The wire harness is the conduit for the transmission of these signals and electrical power.

Conductor Sizes:We can extrude conductors as small as 34 gauge and as large as 12 gauge. These can be combined to create a mixed gauge cable.

Parameters:

Conductor Colors:Our custom wire and cable harness capabilities are extensive, from 1 conductor to cables with more than 50 conductors. Custom colors, striping and marking are available to meet your wiring harness design requirements.

Stranding Sizes:Your conductors can be made with stranding as small as 0.002 inches (0.05mm) which is excellent for hi-flex, supple cables. If you just need a standard power conductor we can use stranding as large as 0.01 inches (0.25 mm). Stranding can be bare copper, tinned stranding, tinned conductor or even plated with precious metals such as silver for increased conductivity.

Conductor Insulation:The first protection in any cable is the conductor’s insulation. Our wire and cable extrusion capabilities include a wide range of materials to match your requirements for flexibility, abrasion resistance and environmental conditions. We use the range from basic PVC, PE or PP. We also use insulating materials such as natural rubber, PU, TPE, PTFE (Teflon®) and silicone.

Production equipment :

Fully Automatic Wire Cutting Striping and Crimping Machine

Wire Cutting and Stripping Machine

Multi Core Cable Cutting and De-sheathing Machine

Pneumatic Core Stripper

Wire Cutting Stripping and Twisting Machine

Microprocessor Based Battery Cable Cutting Machine

Pneumatic Cable Outer Jacket Removal Machine

Pneumatic Crimping Machine for Scattered Terminals

Semi Automatic Crimping Machines

Electronic Crimping Presses

Applicators

Toggle Crimping Machines

Wire Stripping and Twisting Machines

Soldering Station

Coupler Assembly Station

Air Compressor ( 3 Hp and 5 Hp)

25 Kva Generator

Microprocessor Based Harness Tester
