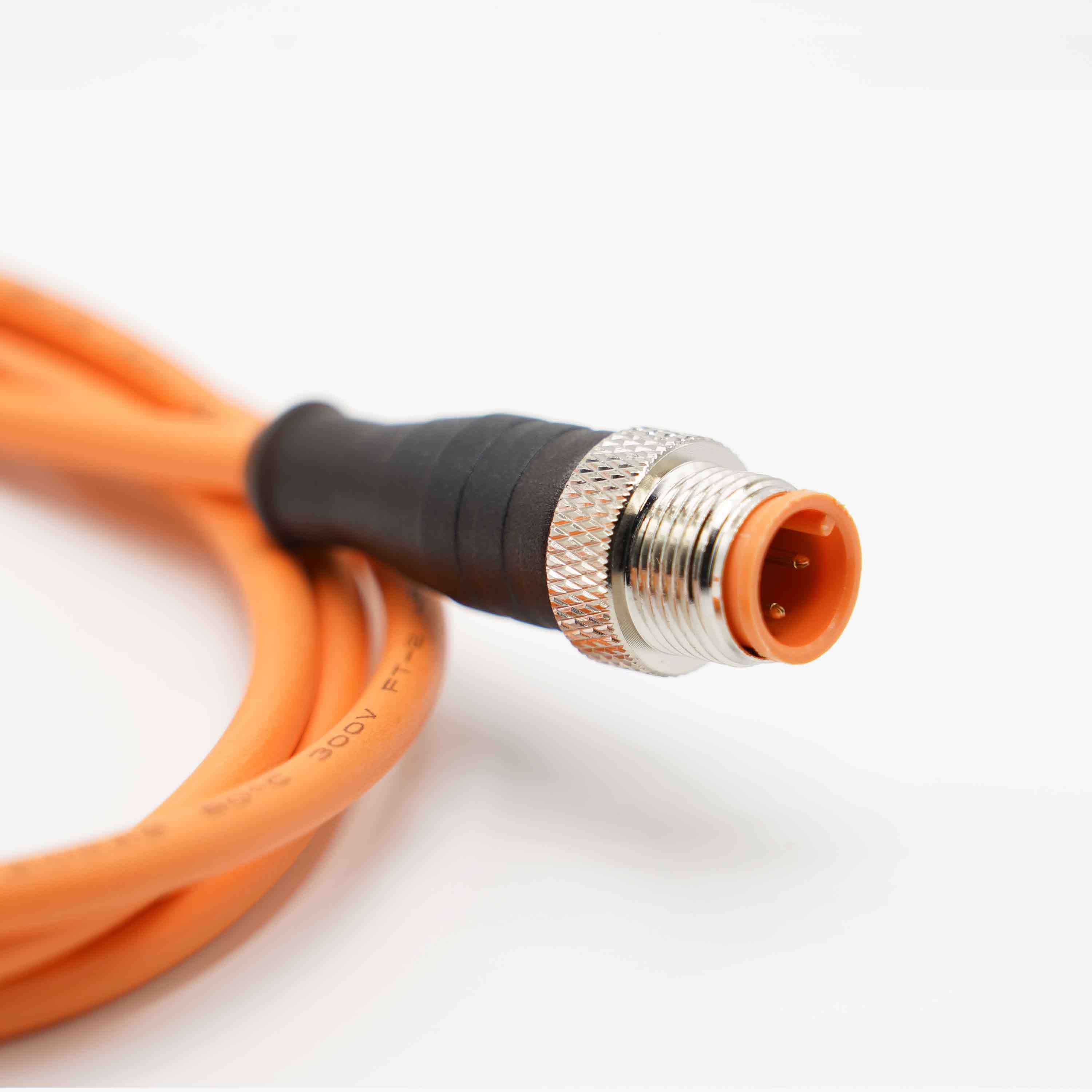

Keyed IP67 Waterproof M12 Cable Connector Assembly 2 Pin For BOM
Keyed IP67 Waterproof M12 Cable Connector Assembly 2 Pin For BOM
Keyed IP67 Waterproof M12 Cable Connector Assembly 2 Pin For BOM
Keyed IP67 Waterproof M12 Cable Connector Assembly 2 Pin For BOM
Keyed IP67 Waterproof M12 Cable Connector Assembly 2 Pin For BOM
Keyed IP67 Waterproof M12 Cable Connector Assembly 2 Pin For BOM
Specifications
Current :
10A
Durability :
Over 500 Mating Cycles
Number Of Contact :
2
Origin :
China
Material Of Housing :
Brass Nickel Plated
Clamping Ring :
Black Metal
Brand Name :
M12 IP Cable
Application :
Automotive, Marine, Industrial Equipment
Place Of Origin :
China
Model Number :
IP66、IP67、IP68
Coloroptions :
Black, White, Gray
Description
Keyed M12 Waterproof Connector Cable 2 Contact Pins Ideal for Industrial Equipment and Control System Integration
M12 Connector Cable Assembly English Description & Specification

1. Short Description (for BOM / Label / Title)

M12 circular waterproof connector cable assembly with screw locking design, IP67 protection grade, straight or 90° angled type, shielded or unshielded optional. Adopts overmolded integrated structure, featuring vibration resistance, oil resistance and stable connection. Widely used for industrial sensors, actuators, fieldbus and Industrial Ethernet wiring.

2. Full Formal Description (for Catalog / Datasheet / Export Document)

The M12 cable assembly is a standard industrial circular connector compliant with IEC 61076-2-101, designed with M12×1.0 thread locking structure for reliable and anti-loosening connection. The whole overmolded molding process ensures excellent mechanical strength, bending resistance and shock resistance. Equipped with double sealing rings, the connector achieves IP67 dustproof and waterproof performance, and optional IP68 / IP69K protection for harsh working conditions.
This series covers multiple coding types including A, B, D, X, L, T and S to avoid wrong mating. Available in 3 to 12 pin configurations, straight or right-angle outlet, shielded and unshielded versions. The contacts are made of phosphor bronze with gold plating to ensure low contact resistance and long service life. Cable jackets are optional with PVC, TPE and PUR materials for oil resistance, wear resistance and weather resistance. The operating temperature ranges from -25℃ to +85℃, suitable for industrial automation, mechanical equipment, industrial Ethernet, smart sensing and power connection systems.

3. Technical Specifications

  • Executive Standard: IEC 61076-2-101
  • Thread Specification: M12×1.0
  • Housing Material: PBT engineering plastic
  • Contact Material: Phosphor bronze, gold-plated
  • Insulator Material: High-performance thermoplastic
  • Protection Class: IP67 (IP68 / IP69K optional)
  • Operating Temperature: -25℃ ~ +85℃
  • Cable Jacket: PVC / TPE / PUR
  • Structure Type: Straight (180°) / 90° Angled
  • EMC Performance: Shielded / Unshielded optional
  • Pin Range: 3Pin ~ 12Pin

4. Coding Definition

  • Code A: General sensor, digital and analog signal transmission
  • Code B: PROFIBUS fieldbus communication
  • Code D: 4-core, 100Mbps Industrial Ethernet (Profinet, EtherCAT)
  • Code X: 8-core, Gigabit / 10G high-speed Ethernet, industrial camera and PoE application
  • Code L / T: High-current DC power supply connection

5. Standard Model Naming Example

  • M12 Code A 5Pin Straight Female Unshielded PUR Cable 2m
  • M12 Code D 4Pin Angled Male Shielded PVC Cable 1.5m
  • M12 Code X 8Pin Double-ended Shielded Ethernet Cable 3m
