Steel Perforated Ventilated Cable Tray | Custom Sized Cable Support Tray for Heat-Dissipating Power & Signal Cable Layout
Steel Perforated Ventilated Cable Tray | Custom Sized Cable Support Tray for Heat-Dissipating Power & Signal Cable Layout
Steel Perforated Ventilated Cable Tray | Custom Sized Cable Support Tray for Heat-Dissipating Power & Signal Cable Layout
Steel Perforated Ventilated Cable Tray | Custom Sized Cable Support Tray for Heat-Dissipating Power & Signal Cable Layout
Specifications
Payment Terms :
T/T
Color :
Customizable Colors Available
MOQ :
Negotiable
Place of Origin :
Hebei, China
Certification :
ISO9001
Packaging Details :
According to customer needs
Appearance :
Smooth Surface, Burr-Free Edges
Delivery Time :
15-30 work days
Side Rail Height :
Range: 30 mm to 500 mm
Material :
Carbon Steel Plate
Width :
50mm, 100mm, 150mm, 300mm, 450mm, 600mm
Price :
Negotiable
Application :
Indoor and Outdoor Engineering
Description
Steel Perforated Ventilated Cable Tray | Custom Sized Cable Support Tray for Heat-Dissipating Power & Signal Cable Layout

Product Overview
For industrial power transmission and signal communication projects, proper cable bearing infrastructure determines long-term operational safety. Our perforated steel cable tray adopts a base plate with elongated ventilation holes, targeting the heat accumulation risk of densely arranged power cables.
This ventilated cable tray delivers stable support for different types of wiring. The perforated structure achieves natural air circulation and automatic drainage. Optional cover plates can be installed to shield internal cables from flying dust, sundries and mechanical collision.
Project designers shall evaluate multiple working conditions before selecting cable trays. The bearing grade must match the total load of laid cables to prevent bending deformation. Surface protection processes should be selected according to ambient humidity and corrosive substances. Moreover, all matched hangers, connection fittings and fasteners need consistent dimensions to ensure seamless installation.
Features

  • Enhanced Heat Dissipation & Automatic Drainage
    Evenly distributed long round holes accelerate air flow inside the tray. Thermal energy produced by operating cables dissipates rapidly. Condensation and rainwater can flow out directly, effectively slowing cable aging and extending service life.
    Sturdy U-Type Bearing Framework
    One-piece U-shaped structure avoids cable slippage and offset. Raised side barriers restrict wiring within the tray, ideal for horizontal and vertical cabling inside manufacturing plants, commercial buildings and telecom base stations.
    Adaptable Modular Construction System
    Modular spliced structure allows on-site cutting, lengthening and angle adjustment. It can fit irregular curved wiring paths and varied installation elevations to satisfy diverse layout requirements on construction sites.
    Multiple Surface Protection Alternatives

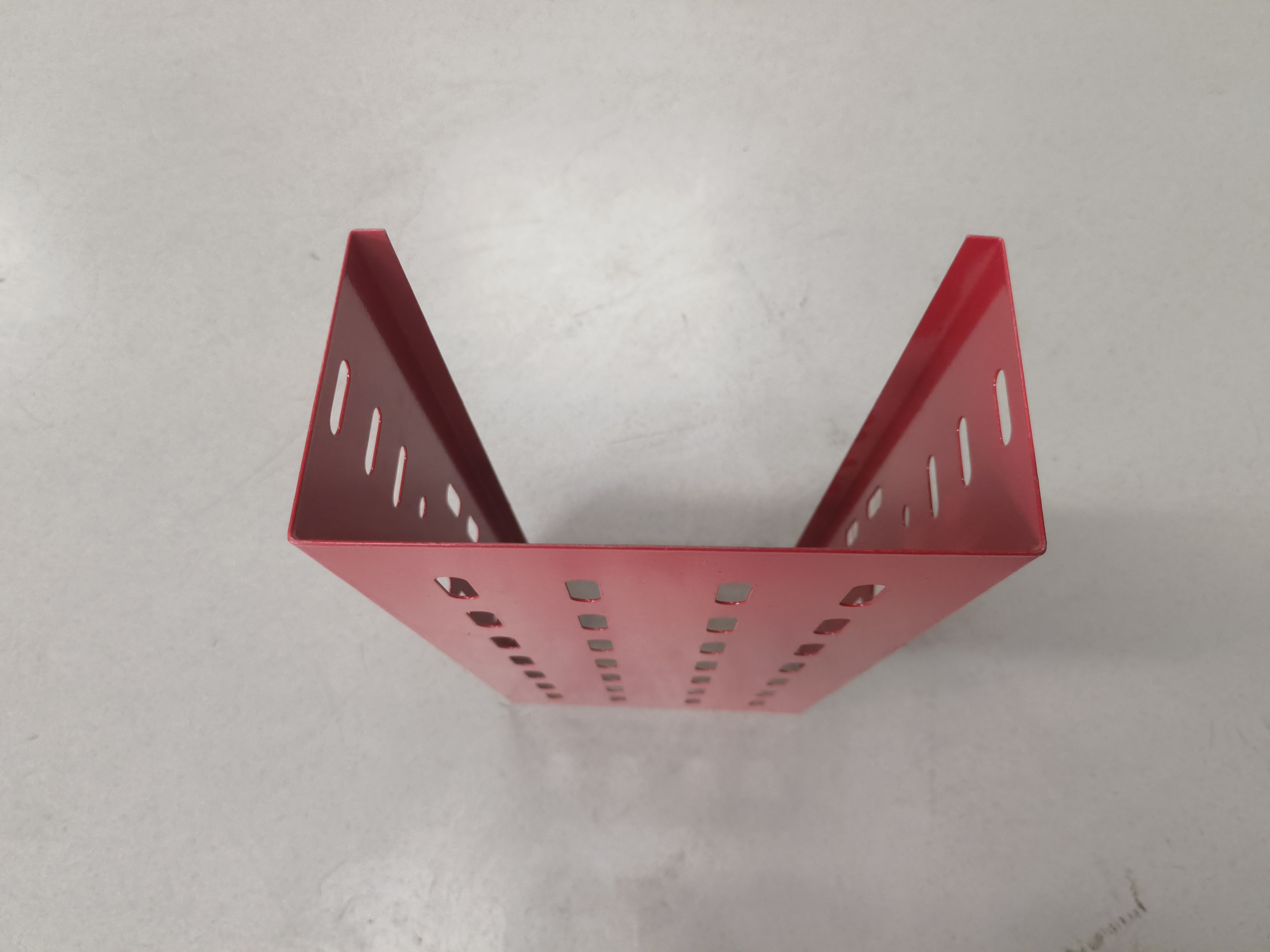

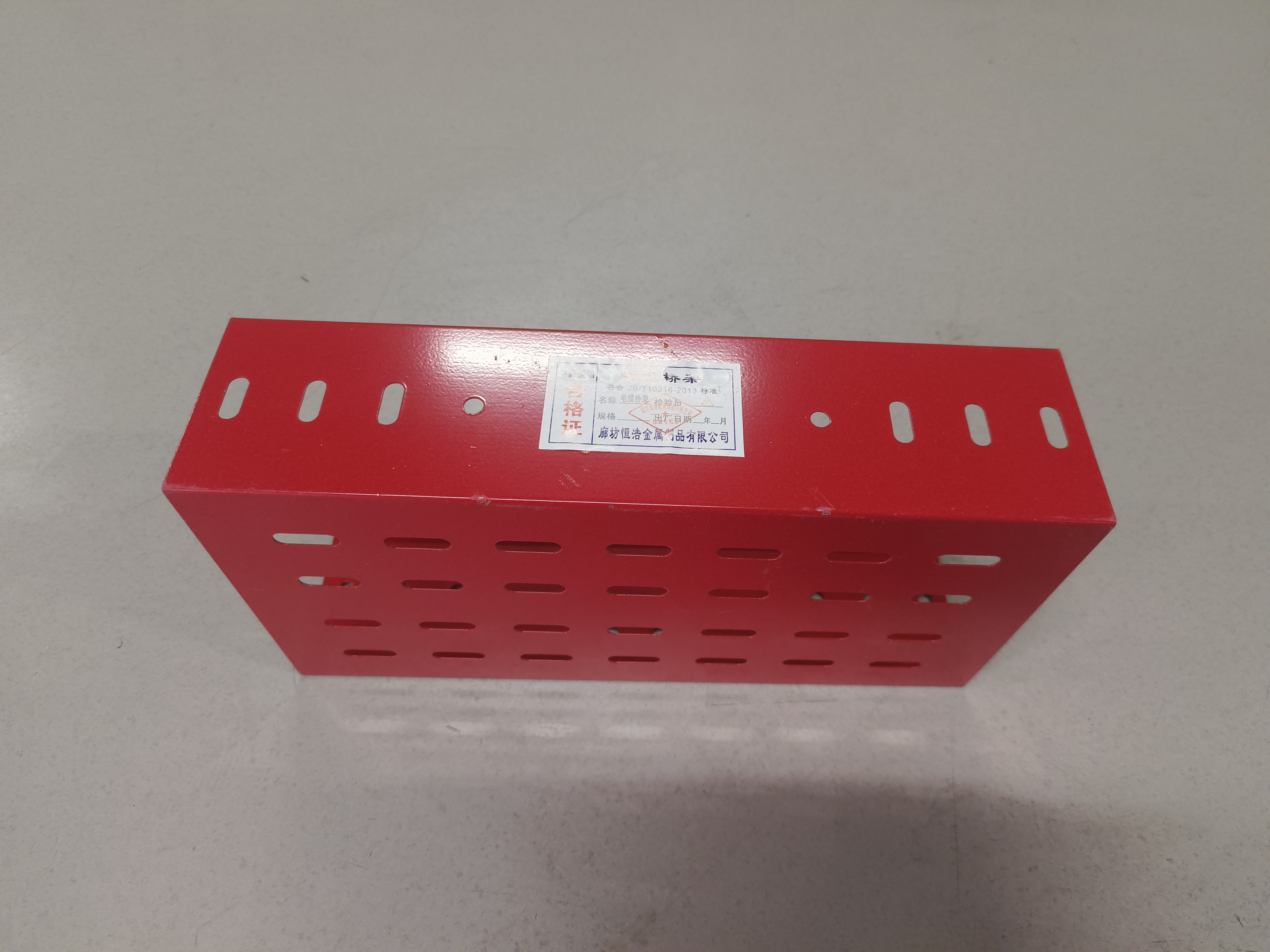

    We provide electrostatic powder spraying (red finish shown in picture), electro-galvanizing and hot-dip galvanizing options. Various anti-corrosion treatments make the tray suitable for indoor workshops, open outdoor areas and mildly corrosive working environments.

Technical Specifications

Attribute Specification
Surface Condition Smoothly processed edges, free of sharp burrs
Core Function Air circulation, heat dissipation and water draining
Mounting Solutions Wall fixed, overhead suspended, ground installation
Side Rail Height Custom range: 30 mm ~ 500 mm
Working Environment Indoor & Outdoor Engineering Projects
Surface Finishing Powder Coating, Electro-Galvanized, Hot-Dip Galvanized
Assembly Mode Connected by joint plates and standard bolts
Load Grade Selection Light Load, Medium Load, Heavy Load Available
Applications

The Galvanized Cable Ladder System efficiently manages and supports cables in various industries including telecommunications, power distribution, and construction. Its corrosion-resistant design makes it ideal for outdoor applications exposed to rain, snow, extreme temperatures, and corrosive environments.

Steel Perforated Ventilated Cable Tray | Custom Sized Cable Support Tray for Heat-Dissipating Power & Signal Cable LayoutSteel Perforated Ventilated Cable Tray | Custom Sized Cable Support Tray for Heat-Dissipating Power & Signal Cable Layout

Steel Perforated Ventilated Cable Tray | Custom Sized Cable Support Tray for Heat-Dissipating Power & Signal Cable Layout
F&Q
Where is the Galvanized Cable Tray made?
Manufactured in Hebei, China
Is the Galvanized Cable Tray certified?
ISO9001 certified
What is the Minimum Order Quantity?
Negotiable based on requirements
How is pricing determined?
Custom pricing available upon request
What are delivery timelines?
15-30 work days with flexible packaging options
