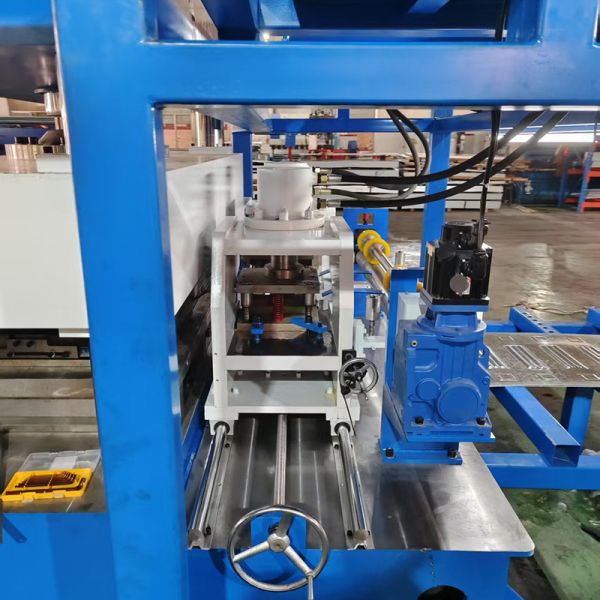

Fully Automatic Pre Galvanized Cable Tray Forming Machine
Fully Automatic Pre Galvanized Cable Tray Forming Machine
Fully Automatic Pre Galvanized Cable Tray Forming Machine
Fully Automatic Pre Galvanized Cable Tray Forming Machine
Fully Automatic Pre Galvanized Cable Tray Forming Machine
Fully Automatic Pre Galvanized Cable Tray Forming Machine
Specifications
Certification :
ISO9001
Place of Origin :
Hebei, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
TT
Delivery Time :
15-30 work days
Packaging Details :
According to customer needs
Power :
22kw
Key Selling Points :
High-accuracy
Voltage :
380v
Operation mode :
Fully Automatic
Trip :
Multiple Specifications
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Installation form :
Vertical Split Body
Layout form :
Three Beams And Four Columns
Description

Product Description:

Cable tray molding machine is an equipment used for producing cable trays. It mainly heats and presses the materials through molds to produce cable tray products that meet the requirements.
The cable tray molding machine is mainly composed of a heating system, a pressure control system, and a mold device. The working principle is to place carbon fiber material into a mold, heat the mold to a certain temperature through a heating system, and then press the material in the mold into shape through a pressure control system. The entire processing process requires strict control of parameters such as temperature, pressure, and molding time to ensure the consistency of product quality and performance

Features:

Easy to operate: The automatic feeding device is controlled by PLC, which can form a single or multiple machine automatic stamping production line. It is easy to operate and suitable for large-scale production

High precision: The compression molding machine adopts finite element structure analysis and optimized design, with compact structure, good rigidity, and high precision. The oil system adopts an integrated system of plug-in valves, which has small impact, reliable action, long service life, and less leakage

Multifunctionality: The compression molding machine has two processes: fixed pressure and fixed stroke, with pressure holding delay function, adjustable delay time, adjustable working pressure and stroke within the specified range according to process requirements, and easy operation

Technical Parameters:

Raw material thickness 2mm
Use Cable Tray Manufacture
Key Selling Points High-accuracy
Flow direction Up And Down
Platform size Multiple Specifications
Motor power 2*45kw
Core Components PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Trip Multiple Specifications
Voltage 380v
Production type Hydraulic Pressure

Fully Automatic Pre Galvanized Cable Tray Forming Machine

FAQ:

Q1: Where is the Cable Tray Forming Machine produced?

A1: The Cable Tray Forming Machine is produced in Hebei, China.

Q2: Does the Cable Tray Forming Machine come with any certifications?

A2: Yes, the Cable Tray Forming Machine is certified with ISO9001.

Q3: What is the price of the Cable Tray Forming Machine?

A3: The price of the Cable Tray Forming Machine is negotiable.
