Spiral Wrapping Cable Taping Machine with Adjustable Speed and 9-30 mm Tape Width for Wire Harness Processing
Spiral Wrapping Cable Taping Machine with Adjustable Speed and 9-30 mm Tape Width for Wire Harness Processing
Spiral Wrapping Cable Taping Machine with Adjustable Speed and 9-30 mm Tape Width for Wire Harness Processing
Spiral Wrapping Cable Taping Machine with Adjustable Speed and 9-30 mm Tape Width for Wire Harness Processing
Spiral Wrapping Cable Taping Machine with Adjustable Speed and 9-30 mm Tape Width for Wire Harness Processing
Spiral Wrapping Cable Taping Machine with Adjustable Speed and 9-30 mm Tape Width for Wire Harness Processing
Spiral Wrapping Cable Taping Machine with Adjustable Speed and 9-30 mm Tape Width for Wire Harness Processing
Spiral Wrapping Cable Taping Machine with Adjustable Speed and 9-30 mm Tape Width for Wire Harness Processing
Spiral Wrapping Cable Taping Machine with Adjustable Speed and 9-30 mm Tape Width for Wire Harness Processing
Spiral Wrapping Cable Taping Machine with Adjustable Speed and 9-30 mm Tape Width for Wire Harness Processing
Spiral Wrapping Cable Taping Machine with Adjustable Speed and 9-30 mm Tape Width for Wire Harness Processing
Spiral Wrapping Cable Taping Machine with Adjustable Speed and 9-30 mm Tape Width for Wire Harness Processing
Spiral Wrapping Cable Taping Machine with Adjustable Speed and 9-30 mm Tape Width for Wire Harness Processing
Spiral Wrapping Cable Taping Machine with Adjustable Speed and 9-30 mm Tape Width for Wire Harness Processing
Spiral Wrapping Cable Taping Machine with Adjustable Speed and 9-30 mm Tape Width for Wire Harness Processing
Spiral Wrapping Cable Taping Machine with Adjustable Speed and 9-30 mm Tape Width for Wire Harness Processing
Specifications
Model Number :
HR-606KL
Speed Control :
Adjustable
MOQ :
1
Delivery Time :
Within 5 Working Days
Tape Core Options :
Ø32mm, Ø76mm
Wire Diameter Range :
3-25 mm
Tape Core ID :
Ø38 mm
Packaging Details :
Wooden Case
Core Inner Diameter :
Ø38 mm
Payment Terms :
L/C,D/A,D/P,T/T
Main Shaft Speed :
200-1400 RPM
Tape Roll Width :
1050 mm
Operation Type :
Automatic / Handheld
Certification :
CE /ISO
Machine Size :
2780 × 380 × 280 mm
Brand Name :
JunSheng
Tape Width :
9-30 mm
Place of Origin :
China
Machine Weight :
48 kg
Price :
1550
Wrapping Method :
Spiral Wrapping
Max Tape OD :
110 mm
Supply Ability :
200
Applicable Tapes :
PVC, Cloth, Cloth-backed, High-Temperature, Mica, Ceramic
Wrapping Density :
Adjustable
Description
Product Overview

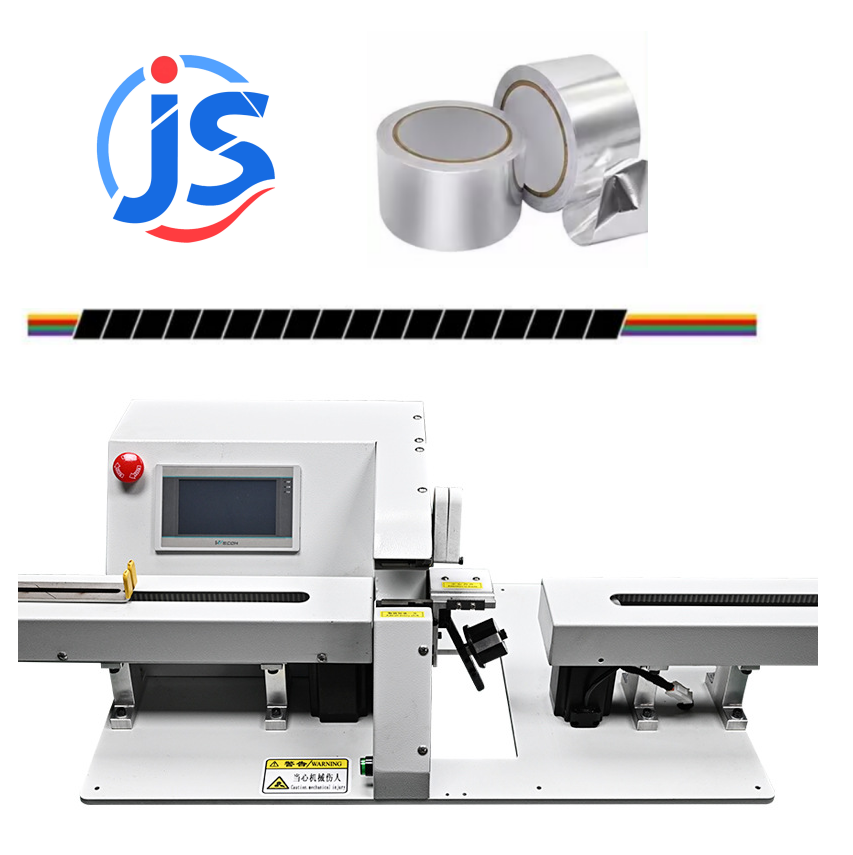

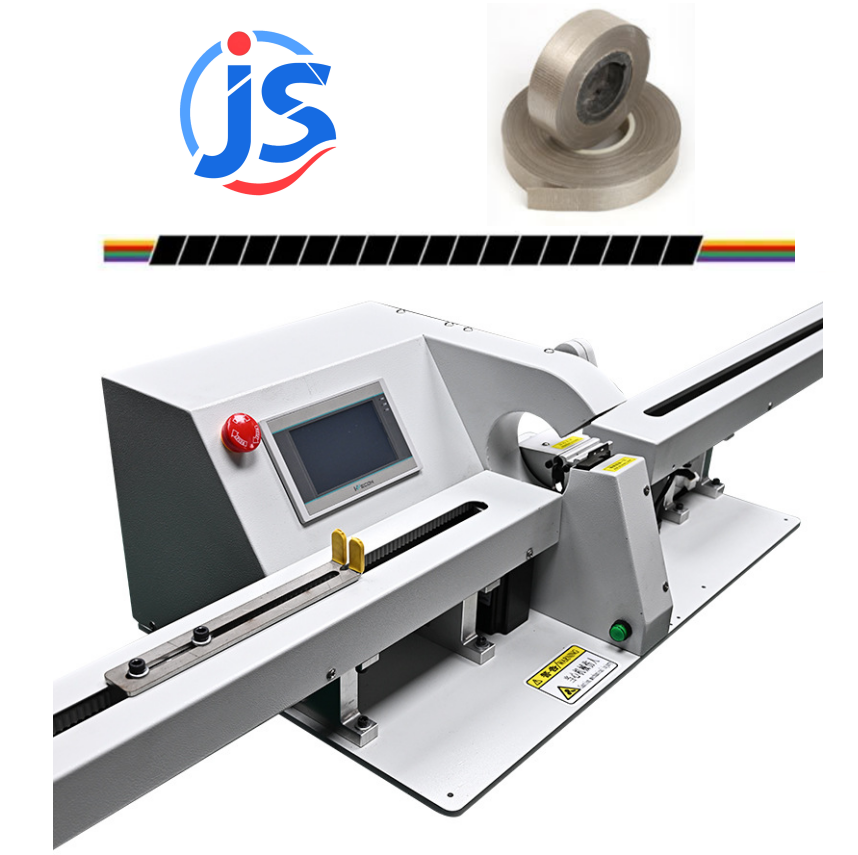

The Electric Taping Machine is an automatic wire wrapping and handheld tape winder designed for efficient, consistent harnessing and insulation of cables and wire bundles. It combines motorized taping performance with a compact, portable form factor suitable for both bench-top and on-site operation.

Technical Specification
Download HR-606KL Datasheet (XLSX)
Machine Video Demonstration


Watch the electric taping machine in operation, demonstrating automated wire harness wrapping and cable insulation.

Factory Overview
Spiral Wrapping Cable Taping Machine with Adjustable Speed and 9-30 mm Tape Width for Wire Harness Processing
Spiral Wrapping Cable Taping Machine with Adjustable Speed and 9-30 mm Tape Width for Wire Harness Processing
Trade Show Exhibition
Spiral Wrapping Cable Taping Machine with Adjustable Speed and 9-30 mm Tape Width for Wire Harness Processing
Packaging & Shipping
Spiral Wrapping Cable Taping Machine with Adjustable Speed and 9-30 mm Tape Width for Wire Harness Processing
Spiral Wrapping Cable Taping Machine with Adjustable Speed and 9-30 mm Tape Width for Wire Harness Processing
Spiral Wrapping Cable Taping Machine with Adjustable Speed and 9-30 mm Tape Width for Wire Harness Processing
Quality Certification
Spiral Wrapping Cable Taping Machine with Adjustable Speed and 9-30 mm Tape Width for Wire Harness Processing
