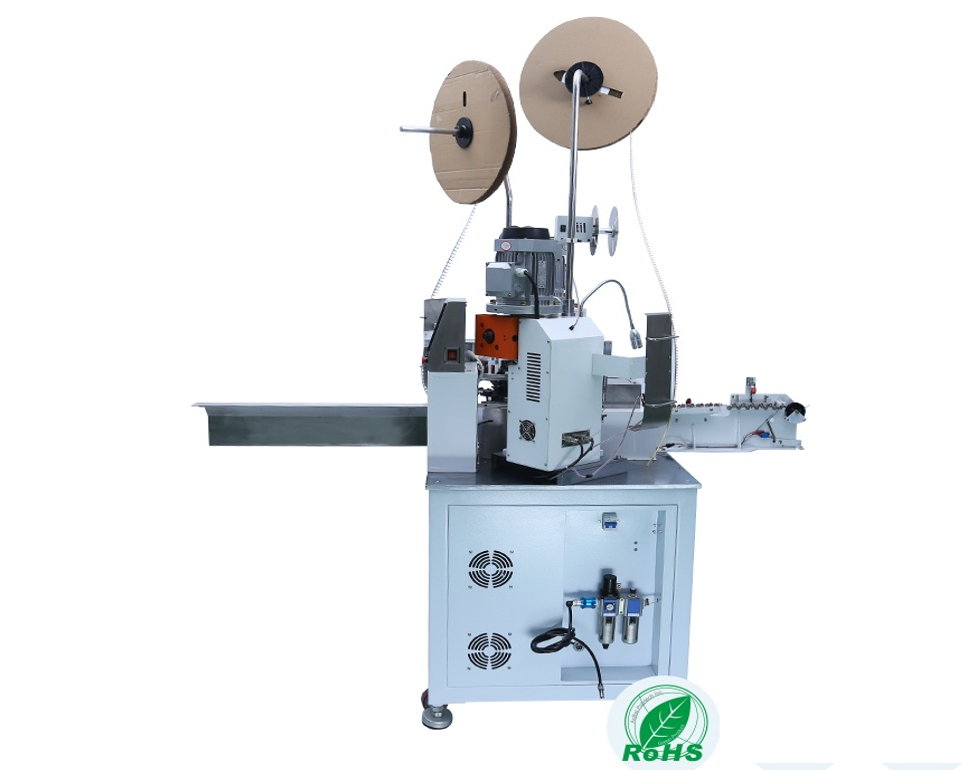

Two Sides Automatic Terminal Crimping Machine 4800 Pcs/H Automatic Wire Crimping Machine 0.05-2mm2
Two Sides Automatic Terminal Crimping Machine 4800 Pcs/H Automatic Wire Crimping Machine 0.05-2mm2
Two Sides Automatic Terminal Crimping Machine 4800 Pcs/H Automatic Wire Crimping Machine 0.05-2mm2
Two Sides Automatic Terminal Crimping Machine 4800 Pcs/H Automatic Wire Crimping Machine 0.05-2mm2
Two Sides Automatic Terminal Crimping Machine 4800 Pcs/H Automatic Wire Crimping Machine 0.05-2mm2
Two Sides Automatic Terminal Crimping Machine 4800 Pcs/H Automatic Wire Crimping Machine 0.05-2mm2
Two Sides Automatic Terminal Crimping Machine 4800 Pcs/H Automatic Wire Crimping Machine 0.05-2mm2
Two Sides Automatic Terminal Crimping Machine 4800 Pcs/H Automatic Wire Crimping Machine 0.05-2mm2
Two Sides Automatic Terminal Crimping Machine 4800 Pcs/H Automatic Wire Crimping Machine 0.05-2mm2
Two Sides Automatic Terminal Crimping Machine 4800 Pcs/H Automatic Wire Crimping Machine 0.05-2mm2
Two Sides Automatic Terminal Crimping Machine 4800 Pcs/H Automatic Wire Crimping Machine 0.05-2mm2
Two Sides Automatic Terminal Crimping Machine 4800 Pcs/H Automatic Wire Crimping Machine 0.05-2mm2
Two Sides Automatic Terminal Crimping Machine 4800 Pcs/H Automatic Wire Crimping Machine 0.05-2mm2
Two Sides Automatic Terminal Crimping Machine 4800 Pcs/H Automatic Wire Crimping Machine 0.05-2mm2
Specifications
Wire Range :
AWG #30～AWG#14
Output :
4800 Pcs/H (Length 40mm)
Brand Name :
Junsheng
Model Number :
HR-602
Place of Origin :
China
MOQ :
1
Price :
5800
Payment Terms :
T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability :
500
Delivery Time :
5-8 working days
Packaging Details :
Wooden Case
Air Pressure :
0.4~0.5Mpa
Cutting Length :
40-9999mm
Crimp Pressure :
2T-4T
Cable Size :
0.05mm²-2mm²
Description
Automatic Wire Crimping Machine HR-602 0.05-2mm2 4800 Pcs/H
Product Description
The HR-602 Automatic Two Sides Wire Cable Cutting Stripping Crimping Machine combines wire feeding, cutting, stripping, and crimping functions in one efficient unit. Featuring digital control and imported components, this all-in-one machine delivers precision performance with easy operation after minimal training.
Key Features
  • Digital control screen for precise adjustments
  • High-quality imported components for reliable operation
  • Easy adjustment of cutting length, depth, and terminal position
  • Higher output than standard terminal crimping machines
  • Reduces factory operating costs through increased efficiency
Technical Specifications
Model HR-602
Cable Size 0.05mm²-2mm²
Wire Range AWG #30～AWG#14
Cutting Length 40-9999mm
Crimp Pressure 2T-4T
Air Pressure 0.4~0.5Mpa
Front Strip 1-15mm (Half Strip 2-12mm)
Rear Strip 1-8mm (Half Strip 2-6mm)
Output 4800 Pcs/H (Length 40mm)
Cutting Accuracy ±0.5mm
This high-performance machine achieves exceptional output rates while maintaining precise cutting accuracy, making it ideal for industrial wire processing applications requiring efficiency and reliability.
