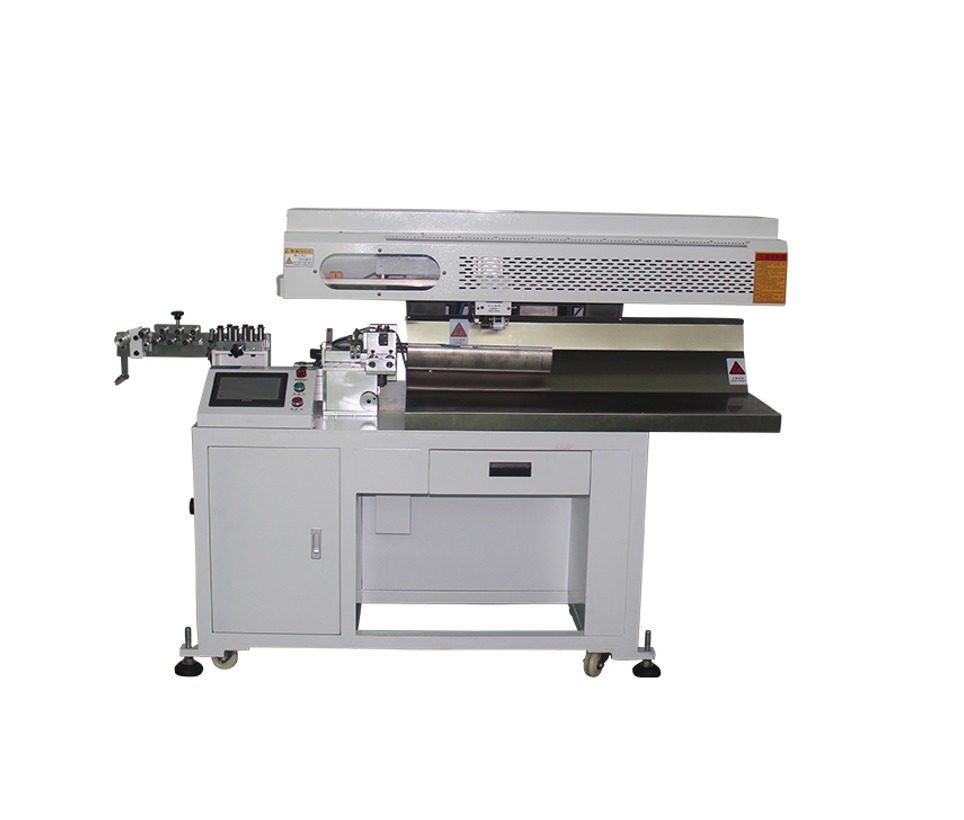

Factory High Speed Fully Automatic Wire Cutting And Stripping Machine For Large Wire
Factory High Speed Fully Automatic Wire Cutting And Stripping Machine For Large Wire
Factory High Speed Fully Automatic Wire Cutting And Stripping Machine For Large Wire
Factory High Speed Fully Automatic Wire Cutting And Stripping Machine For Large Wire
Factory High Speed Fully Automatic Wire Cutting And Stripping Machine For Large Wire
Factory High Speed Fully Automatic Wire Cutting And Stripping Machine For Large Wire
Factory High Speed Fully Automatic Wire Cutting And Stripping Machine For Large Wire
Factory High Speed Fully Automatic Wire Cutting And Stripping Machine For Large Wire
Factory High Speed Fully Automatic Wire Cutting And Stripping Machine For Large Wire
Factory High Speed Fully Automatic Wire Cutting And Stripping Machine For Large Wire
Factory High Speed Fully Automatic Wire Cutting And Stripping Machine For Large Wire
Factory High Speed Fully Automatic Wire Cutting And Stripping Machine For Large Wire
Specifications
Model Number :
HR-950
usage :
Stripping
Brand Name :
JUNSHENG
Wire type :
Electronic Wire, Silicone Wire, Glass Fiber Cable
Cable Diameter :
AWG8--AWG32
Twisting length :
9999mm
Operating Mode :
Automatic
Product name :
Automatic Cable Wire Stripping Twisting Machine
Cutting tolerance :
±0.002Lmm
MOQ :
5
Function :
Wire Stripping
Price :
$4,800
Place of Origin :
Guangdong, China
Weight (KG) :
400
Dimension(L*W*H) :
170*75*150cm
Voltage :
220V/ 380V 60/50Hz
Description
Product Overview

High Speed fully Automatic Wire Cutting and Stripping machine For Large Wire

This machine is used for high speed cutting,double end stripping,single-end stripping and half-stripping.The servo motor is used to control the cutting and stripping to make cutting length more precise.It combines the advantages of computerized wire cutting machine with easy adjustment and high efficiency of mechanical cutting machine.The function of the front clip and the post-release increases the applicability,speed,stability and accuracy of the machine.Cable type for USB, AC, RGB, 1394, DC power cables,single-strand,isolation cables and flat cable.
Products Description
HR-950 High Speed fully Automatic Wire Cutting and Stripping machine For Large Wire HR-950
Model
HR-950
Voltage
220V/380V
Power
1000W
Frequency
50HZ/60HZ
Drive Model
Eight-wheel Drive
Display
7inch LCD
Cable Diameter
AWG8--AWG32
Blade Changing
8,10,12,14AWG:16,18AWG;20,24AWG angle blade;24,28,30AWG flat blade
Cutting Length
42-9999mm
Stripping Length
3-100mm
Cutting Tolerance
±0.002Lmm
Max Cutting length
99999mm
Speed of Stripping
3200-4500PCS/H
Blade Material
Tungsten steel/High-speed steel
Net Weight
3900KGS
Gross Weight
400KGS
Package
Export Carton with Foam
Package Size
175*80*155cm
Machine Size
170*75*150cm
Delivery Time
Within 5 days after deposit
Warranty
Warranty for one year with lifetime maintain service

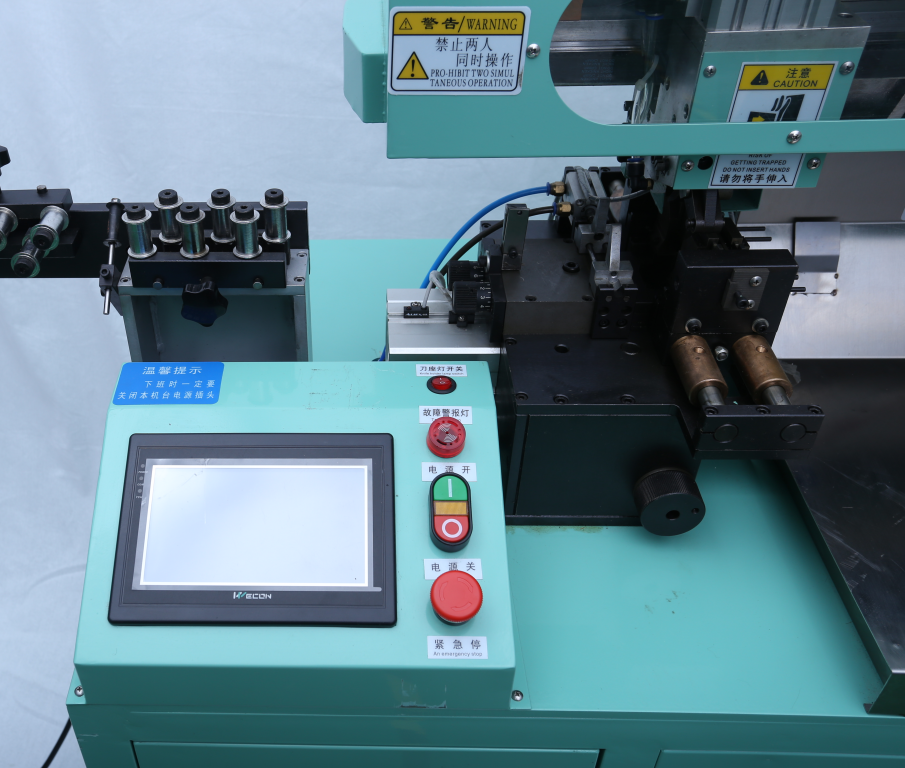

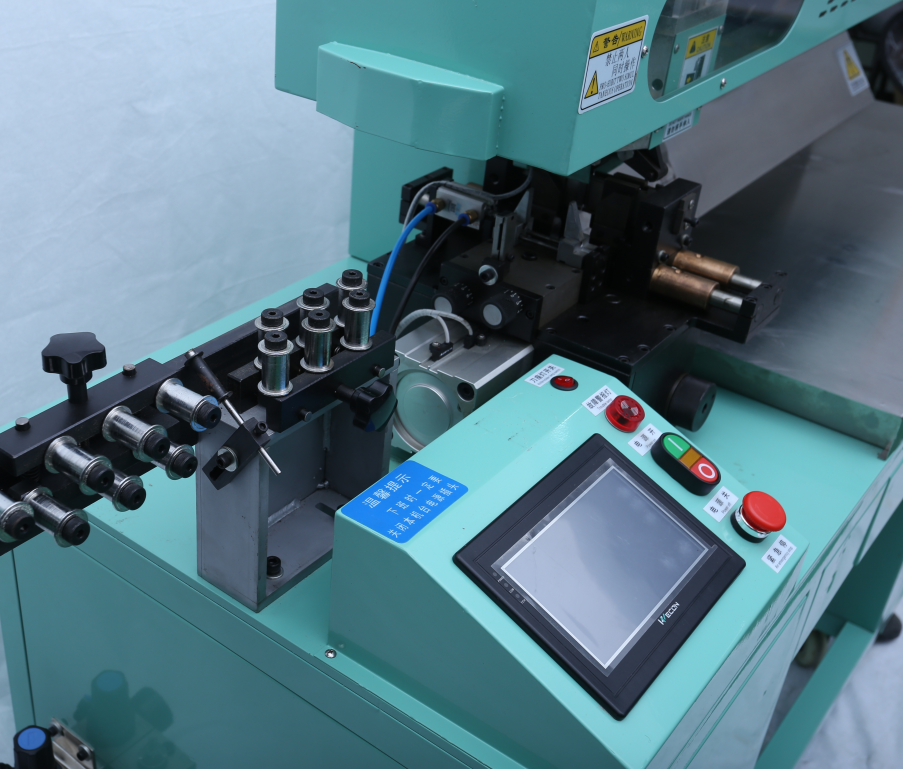

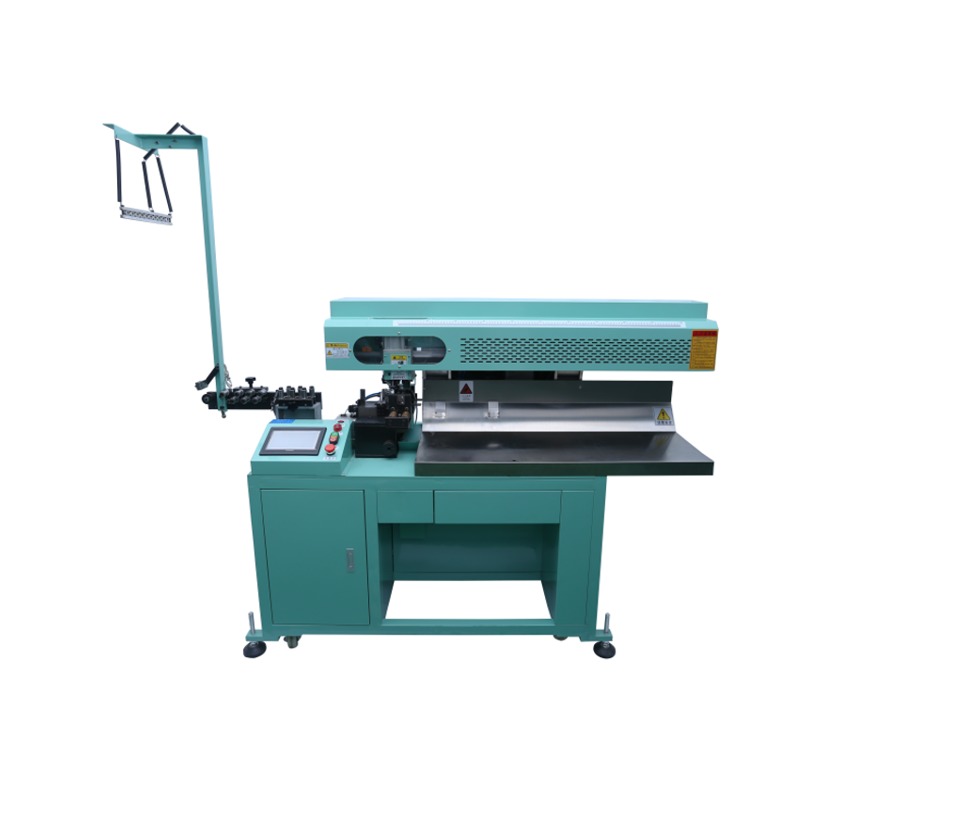

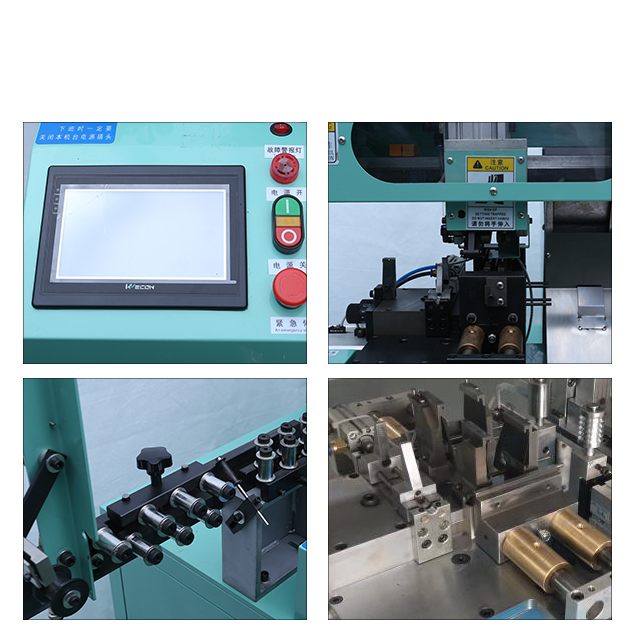

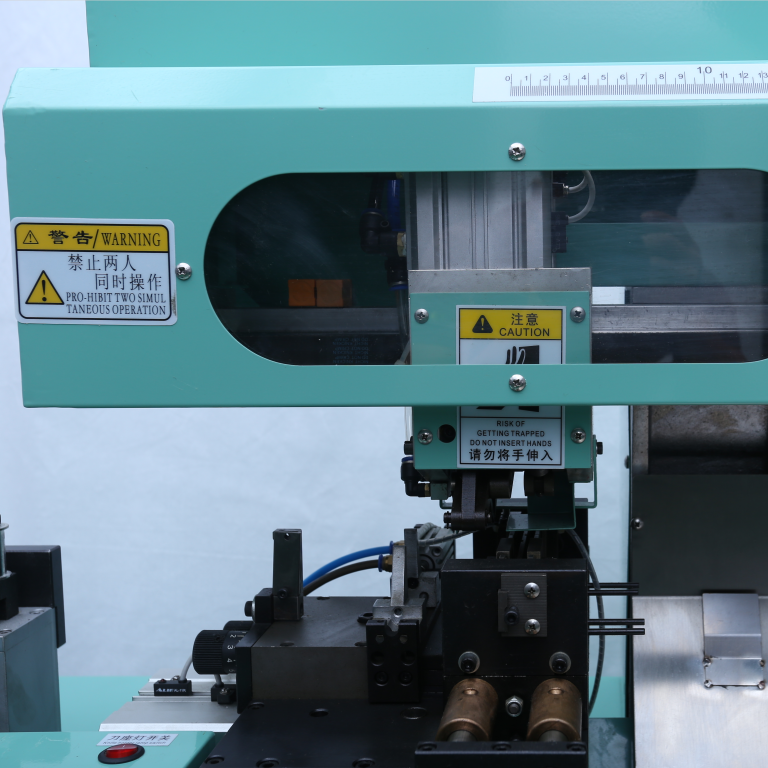

Details Images
Factory High Speed Fully Automatic Wire Cutting And Stripping Machine For Large Wire
Factory High Speed Fully Automatic Wire Cutting And Stripping Machine For Large Wire
Factory High Speed Fully Automatic Wire Cutting And Stripping Machine For Large Wire
Factory High Speed Fully Automatic Wire Cutting And Stripping Machine For Large Wire

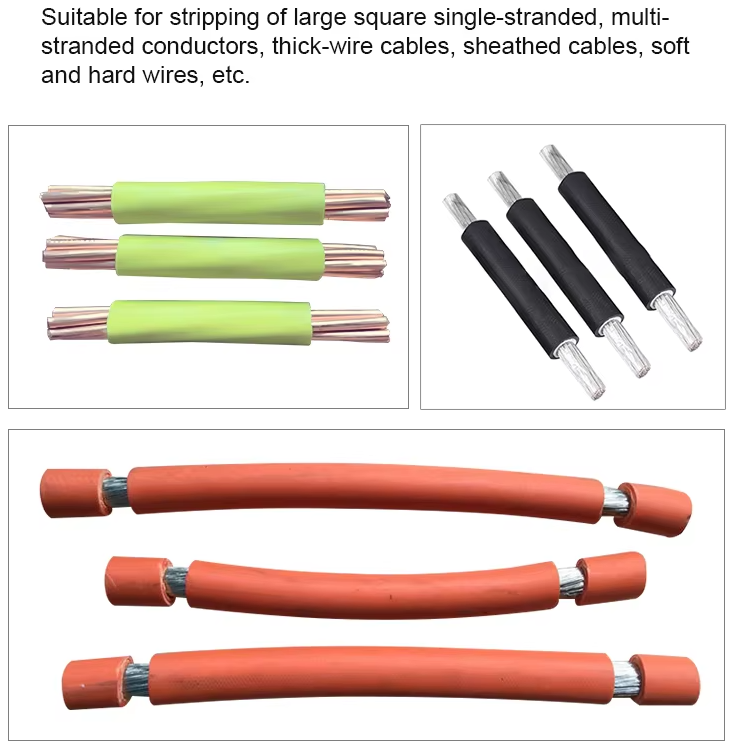

Stripping Effect Display
Factory High Speed Fully Automatic Wire Cutting And Stripping Machine For Large Wire
Product packaging
Factory High Speed Fully Automatic Wire Cutting And Stripping Machine For Large Wire
Exhibition & customer Photos
Factory High Speed Fully Automatic Wire Cutting And Stripping Machine For Large Wire
Factory High Speed Fully Automatic Wire Cutting And Stripping Machine For Large Wire
Factory High Speed Fully Automatic Wire Cutting And Stripping Machine For Large Wire
Factory High Speed Fully Automatic Wire Cutting And Stripping Machine For Large Wire
Company Profile
Factory High Speed Fully Automatic Wire Cutting And Stripping Machine For Large Wire
Factory High Speed Fully Automatic Wire Cutting And Stripping Machine For Large Wire
Factory High Speed Fully Automatic Wire Cutting And Stripping Machine For Large Wire
Factory High Speed Fully Automatic Wire Cutting And Stripping Machine For Large Wire
FAQ
Q1. What is your delivery date?
A: The delivery date is about 5-7 working days after receive the payment.

Q2.What is the payment way ?
We provide Visa, Mastercard, T/t, Paypal, Apple Pay, Google Pay, Gc Real Time Bank Transfer.

Q3.What the service can you provide?
Support product customization, any requirements you need can be customized according to your requirements.

Q4.How about the after service and guarantee period?
We offer 1 year warranty since the arrival of the machine. Besides, we provide 7x24 hours Online support, or face-to-face online
communications, free training are available.

Q5.Do you provide the user manual and operating video to support us ?
A: We will provide the English user manual for free and the operating video is available. Our software is all English
