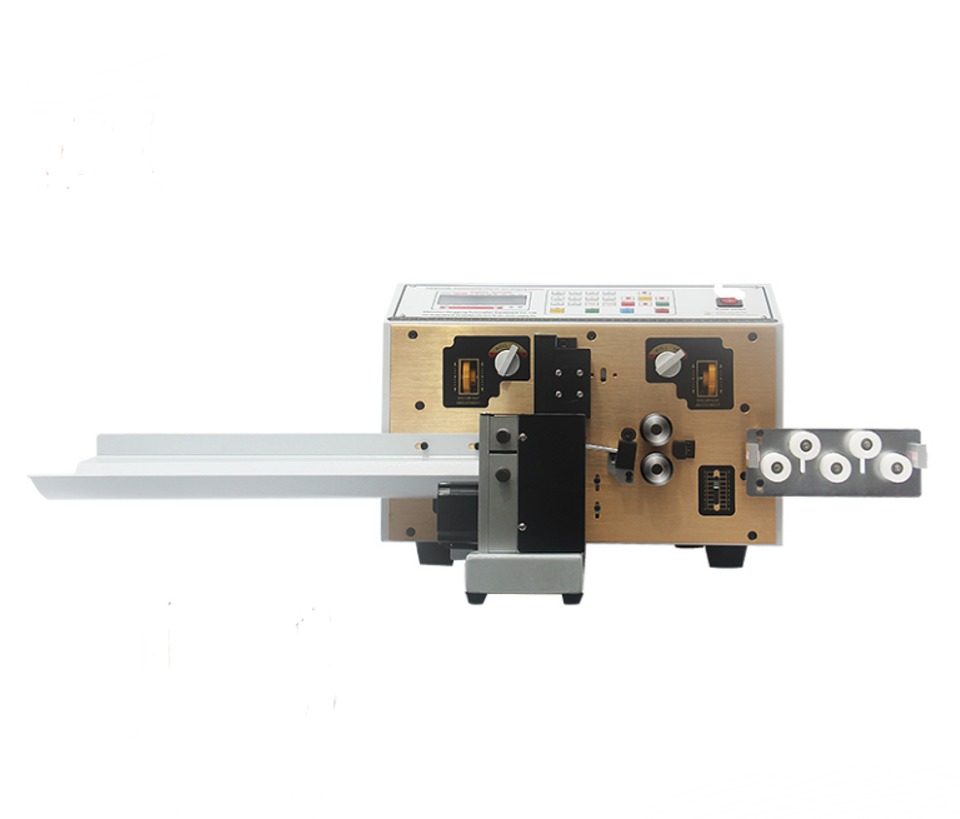

HR-220T Fully Automatic Double Wire Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
HR-220T Fully Automatic Double Wire Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
HR-220T Fully Automatic Double Wire Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
HR-220T Fully Automatic Double Wire Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
HR-220T Fully Automatic Double Wire Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
HR-220T Fully Automatic Double Wire Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
HR-220T Fully Automatic Double Wire Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
HR-220T Fully Automatic Double Wire Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
HR-220T Fully Automatic Double Wire Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
HR-220T Fully Automatic Double Wire Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
HR-220T Fully Automatic Double Wire Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
HR-220T Fully Automatic Double Wire Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
Specifications
Place of Origin :
Guangdong, China
usage :
Stripping
Dimension(L*W*H) :
50*45*40cm
Brand Name :
JUNSHENG
Cutting tolerance :
±0.002Lmm
Model Number :
HR-220T
Power(W) :
220W
Function :
Wire Stripping
Wire type :
Electronic Wire, Silicone Wire, Glass Fiber Cable
Price :
$480
Weight (KG) :
50
Product name :
Automatic Cable Wire Stripping Twisting Machine
Operating Mode :
Automatic
Twisting length :
0.1-30mm
Voltage :
110/220V 60/50Hz
MOQ :
5
Stripping length :
0.1-99mm (depends on material of wire)
Description
Product Overview

HR-220T Double Wire Stripping Twisting Machine

Fully automated Double wire stripping, Twisting at the same time with High efficiency output
Products Description
HR-220T Double Wire Stripping Twisting Machine
Model
HR-220T
Voltage
110/220V
Power
220W
Frequency
50HZ/60HZ
Operation System
Intelligent Control
Display
LCD
Cable SPE
AWG#12-AWG#32
Cable Type
Electronic Wire, Silicone Wire, Glass Fiber Cable, Isolated Wire, Coaxial Cable etc
Stripping Length
0.1-99 mm (depends on material of wire)
wireTwisting Length
0.1-30mm
Cutting Tolerance
±0.002Lmm
Max Cutting length
0.1-6000mm
Speed of Stripping
2000-6000PCS/H
Noise Level
＜70dBA
Net Weight
45KGS
Gross Weight
50KGS
Package
Export Carton with Foam
Package Size
55*50*45cm
Machine Size
50*45*40cm
Delivery Time
Within 3 working days after deposit
Warranty
Warranty for one year with lifetime maintain service
Simultaneously Cutting
2 pcs (supply ODM service)
Related Products
HR-220T Fully Automatic Double Wire Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
Terminal crimping machine(OEM/ODM Applicator available)
HR-220T Fully Automatic Double Wire Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
Winding and tying machine
Binding Diameter: 8-30mm
Coil Diameter: 50-200mm
Binding Length: 75-140mm




HR-220T Fully Automatic Double Wire Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
Cutting machine
Cutting Length: 0.1mm-9999.9mm
Cutting Diameter:25mm

Stripping Effect Display
HR-220T Fully Automatic Double Wire Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
HR-220T Fully Automatic Double Wire Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
Product packaging
HR-220T Fully Automatic Double Wire Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
HR-220T Fully Automatic Double Wire Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
HR-220T Fully Automatic Double Wire Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
HR-220T Fully Automatic Double Wire Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
Exhibition & customer Photos
HR-220T Fully Automatic Double Wire Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
HR-220T Fully Automatic Double Wire Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
HR-220T Fully Automatic Double Wire Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
HR-220T Fully Automatic Double Wire Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
Company Profile
HR-220T Fully Automatic Double Wire Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
HR-220T Fully Automatic Double Wire Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
HR-220T Fully Automatic Double Wire Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
HR-220T Fully Automatic Double Wire Cable Stripping Cutting Twisting Machine Small Wire Stripper Machine
FAQ
Q1： Can you customize the machine?
A1：Yes, we can customize the machine according to your requirements, and we can also provide you with a complete set of wire harness production solution.
Q2: Can I get some samples?
A2: We are honored to offer you samples to test and check quality. need pay for it. The samples’ leading time will be 7-10 days.
Q3: What's your delivery time?
A3: Within 3 days for small orders and 10-15 days for big orders.
Q4: Do you have the products in stock?
A4: we have standard models in stock. Some special products and big orders will be produced by your requirements.
Q5: What's your warranty time?
A5: Warranty for one year with lifetime maintain service
