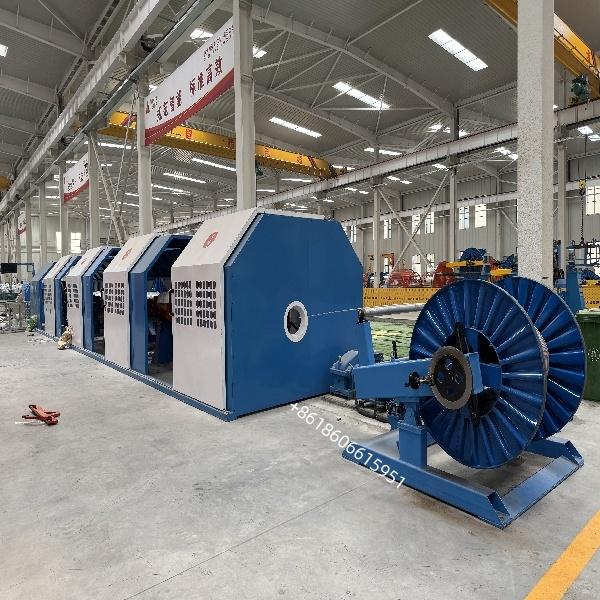

High Speed Bow Type Cable Stranding Machine for Twisting Bunching Cable 800-1250
High Speed Bow Type Cable Stranding Machine for Twisting Bunching Cable 800-1250
High Speed Bow Type Cable Stranding Machine for Twisting Bunching Cable 800-1250
High Speed Bow Type Cable Stranding Machine for Twisting Bunching Cable 800-1250
High Speed Bow Type Cable Stranding Machine for Twisting Bunching Cable 800-1250
High Speed Bow Type Cable Stranding Machine for Twisting Bunching Cable 800-1250
Specifications
Brand Name :
Beyde
Model Number :
1250/1+4
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
200 set/year
Delivery Time :
90 days
Packaging Details :
Safety container packing
Usage :
Cabling
Color :
Customized
Name :
laying up machine
Function :
electric wire laying up
Wire material :
BV BVR PVC ETC.
Plc :
SIEMENS
Stranding pitch (mm) :
stepless
Cage rotation (rpm) :
199.4
Warranty :
12 Months
Motor :
siemens
Inverter :
Japan YASKAWA
Description

High Speed Bow Type Cable Stranding Machine for Twisting Bunching Cable 800-1250

Application:
Category 5 cable, enhanced ultra-5 cable and computer wire.

Our major machinery products include:
A complete wire and cable extruding production line
Silicon rubber, fluoro-plastic, physical foaming and other special extrusion production lines
Category 5 Cable,enhanced category 5e Cable, and Category 6 Cable production lines
Single Twister machines, Arch-type Twister machines and Computer-based automatic wire cutting machines
Automatic Coiling And Wrapping Machine

Our fast service response times provides both new and existing customers with the support necessary to maximize their productivity with greater machine running time leading to more production and guaranteed customer satisfaction.

High Speed Bow Type Cable Stranding Machine for Twisting Bunching Cable 800-1250

Specific Features
1. Φ1250/4 Bow Cartage: Expertly crafted for exceptional dynamic performance, ensuring your operations run smoothly and efficiently.
2.Φ1250/1 Pay-off Stand: Meticulously engineered for flawless functionality and unparalleled reliability.
3.Pneumatic Brake System: Offers precise stopping capabilities, heightening safety and control with every use.
4.Doublet Line Die Holder: Provides precise alignment and outstanding durability, promising long-lasting performance.
5.Φ420/2 Ordinary Flier: Engineered for consistent and efficient operation, enhancing your productivity.
6.Φ650/2 Steel Strip Armouring Machine: Delivers durable protection and versatile capabilities to meet various needs.
7.Crawler-type Meter-Counting: Ensures precise measurement and seamless integration into your process.
8. Φ1300 Two-Wheeled Device with Single-Power: Designed for optimal power distribution, supporting efficient operations.
9. Stage Pitch Gear Box: Ensures precision and smooth operation for a seamless workflow.
10. Φ2000 Shaftless Take-up Stand: Provides stable and efficient handling.
11. Y200L-6-22KW-960/rmin Reduction Gear Box: Delivers power with remarkable precision.
12. Mechanical Transmission System: Guarantees reliable and smooth motion.
13. Electric Control System: Offers a modern user-friendly interface equipped with cutting-edge technology.
14. Safety Fence: Designed with robust construction to enhance operator safety.

BJY 800 GJ1000 GJ1250 GJ1600
Single wire diameter φ5-15mm φ5-15mm φ5-15mm φ5-18mm
Max stranded diameter φ45mm φ45mm φ45mm φ60mm
RPM 60-124r/min 60-124r/min 60-124r/min 47-86r/min
Stranding pitch 96-1415mm 96-1415mm 96-1415mm 116-1596mm
Line speed 12-85m/min 12-85m/min 12-85m/min 10-75m/min
Pay off drum size in cage PN800mm PN1000mm PN1250mm PN1600mm
Take up drum size PN1600mm PN2000mm PN2000mm PN2500mm
High Speed Bow Type Cable Stranding Machine for Twisting Bunching Cable 800-1250
High Speed Bow Type Cable Stranding Machine for Twisting Bunching Cable 800-1250
Beyde Trading Co., Ltd. Was established in 2007. During the past years we have put all our efforts to research and development, such as design, produce, sales and serve for our customers. Our main products including Rigid Stranding machine, Tubular Stranding machine, Planetary Stranding machine, Bow Stranding machine, Laying-up machine, Drum Twister, Shielding Machine,Steel Wire Armoring machine and so on. These products are widely used all over the world. Now we are proud that we become a well-known company in this field. Our philosophy is "innovation and Technology". We have insisted on bring in advanced technology abroad and doing systematic expansion over the past years. We have developed an experienced mechanical and electronic research team with the ability of independent design and large-scale production. With many years of production and service experiences, we research new producing technology and update our products. As a result, our machines have been sold not only around China, and also sold to America, Russia, Vietnam, lndia, and Africa, etc. And meanwhile we win praise from our customers both in domestic and abroad. With professional sales team, skilled workers, advanced equipment and quick after-sale service, we offer you good quality products with competitive price and super service. We are your best choice. We warmly welcome you come to visit our company and have further business talk.
