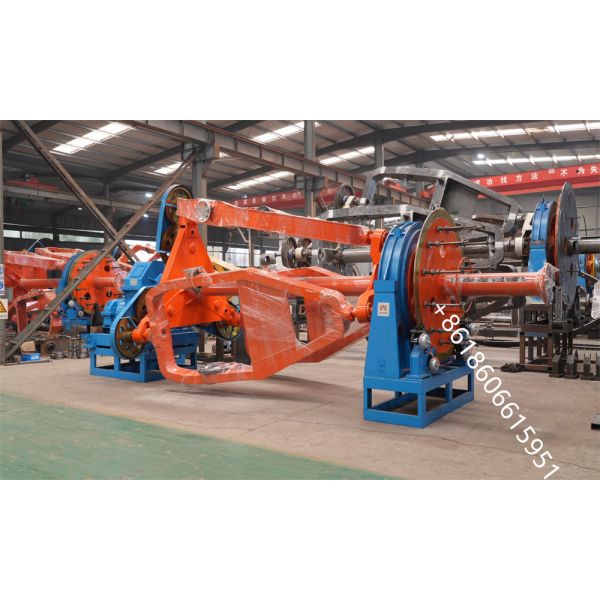

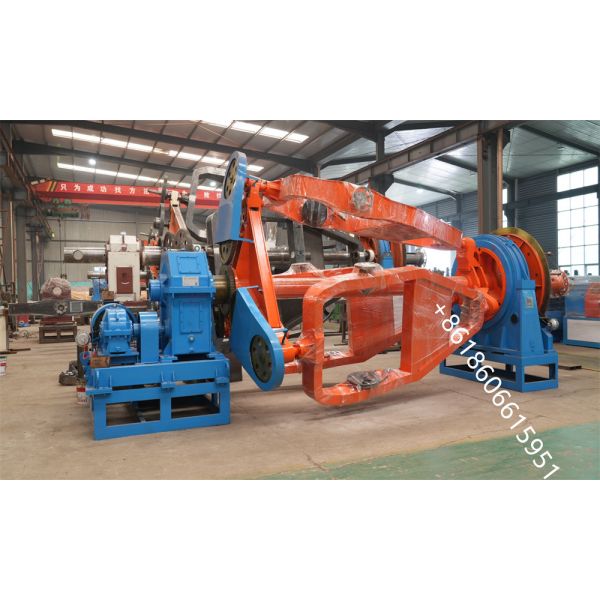

Low Price Supply Laying-up Machines Cradle Type Cable Laying Up Machinery
Low Price Supply Laying-up Machines Cradle Type Cable Laying Up Machinery
Low Price Supply Laying-up Machines Cradle Type Cable Laying Up Machinery
Low Price Supply Laying-up Machines Cradle Type Cable Laying Up Machinery
Specifications
Brand Name :
Beyde
Model Number :
1250/2+3
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
200 set/year
Delivery Time :
90 days
Packaging Details :
Safety container packing
Usage :
Cabling
Color :
Customized
Name :
laying up machine
Function :
electric wire laying up
Wire material :
conductor or insulated cores,BV BVR PVC ETC.
Plc :
SIEMENS
Voltage :
220V/380V
Cage rotation (rpm) :
50
Warranty :
12 Months
Motor :
siemens
Inverter :
Japan YASKAWA
Description

Low Price Supply Laying-up Machines Cradle Type Laying up Machine Cable Laying up Machine

Laying up machine Application This series of products are suitable for the cabling and armoring of multi-core power cables of various cross-sections, cross-linked cables, and control cables. also available For the production of charging column cables.
Big bearing type Technical Parameter:
Model
1250
1600
Cage RPM(r/min)
21.3-50.9
11.8-28.3
Taping RPM(r/min)
289-644
289-644
linear Speed(m/min)
10.22-77.70
10.28-77.69
Normal type Technical Parameter:
Model
1250
1600
2000
Inlet wire Dia.(mm)
8-40
10-60
15-70
laid up Dia.(mm)
80
120
140
Frame rotation speed(r/min)
13.9-33.1
8.0-18.5
4.0-8.8
Lay-up Pitch(mm)
181-3198
369-6646
400-6766
Taping speed(r/min)
188-419
188-419
150-334
Taping pitch(mm)
14.3-236.3
16-273
11-179
capstan Dia.(mm)
2000
2500
track
linear Speed(m/min)
6.00-44.41
6.78-51.21
3.53-26.86
Special launch Large bearing support, new high-speed cable forming machine, the main winch cage is changed from the traditional tugboat support to the large bearing support, supplemented by a series of changes in other aspects. Advance, make it higher speed, lower noise, no maintenance, better performance, more user-friendly operation.
