Rigid Type Copper Wire Armoring Machine with 630/24 Configuration and Precise Tension Control for Cable Stranding
Rigid Type Copper Wire Armoring Machine with 630/24 Configuration and Precise Tension Control for Cable Stranding
Rigid Type Copper Wire Armoring Machine with 630/24 Configuration and Precise Tension Control for Cable Stranding
Rigid Type Copper Wire Armoring Machine with 630/24 Configuration and Precise Tension Control for Cable Stranding
Rigid Type Copper Wire Armoring Machine with 630/24 Configuration and Precise Tension Control for Cable Stranding
Rigid Type Copper Wire Armoring Machine with 630/24 Configuration and Precise Tension Control for Cable Stranding
Specifications
Brand Name :
Beyde
Model Number :
500/24
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
200 set/year
Delivery Time :
90 days
Packaging Details :

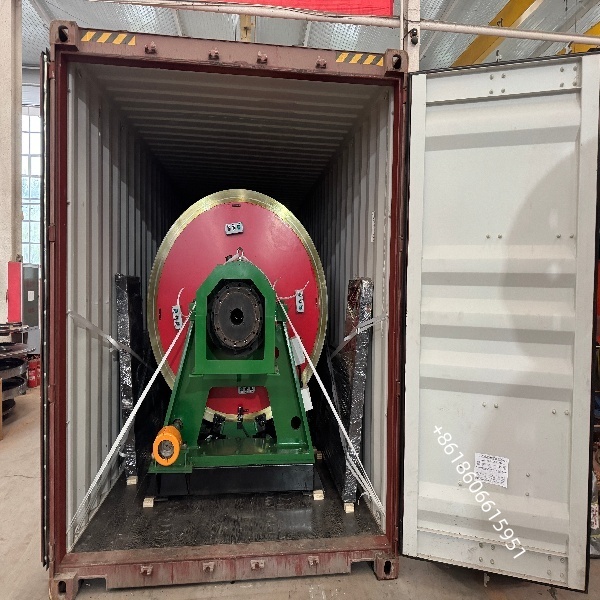

Safety container packing
Usage :
Multifunctional,Stranding
Name :
Armoured Stranding Machine
Warranty :
2 years
Color :
Customized
Application :
Wire Processing,steel armouring
Display :
10 inch real color touch screen
Bobbin :
500mm
Take-up :
PN2000-2500
Pay-off :
PN1250-PN2500
Max Speed :
120r/min
Description
Versatile Configurations Rigid Type Copper Wire Armoring Machine 630/24 Cable Stranding Machine
This advanced rigid type copper wire armoring machine is engineered for high-performance cable manufacturing, featuring versatile configurations and precision control systems for superior armor layer formation.
Working Principle & Key Features

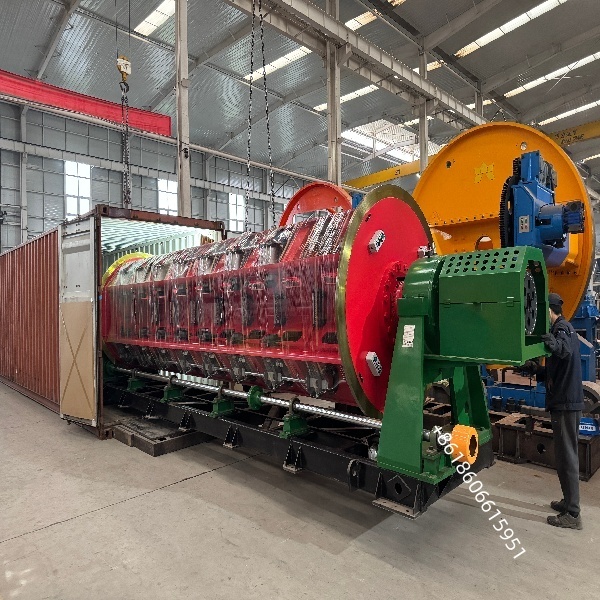

  • Rigid Frame Stranding Cage: Multiple reels mounted on a robust, non-back-twisting frame rotate to twist copper wires onto cable cores, forming dense, round armor layers
  • Copper Wire Armoring: Accommodates copper wires (1.5-5 mm Ø) for both round and sector-shaped conductors, compatible with complex cable core configurations
  • High Speed & Productivity: Advanced models achieve cage speeds up to 230 rpm and line speeds of 55-70 m/min for medium and large-section cable production
  • Precise Tension Control: Independent tension systems with magnetic brakes, hysteresis, or dancer arms managed by PLC ensure uniform lay length and prevent defects

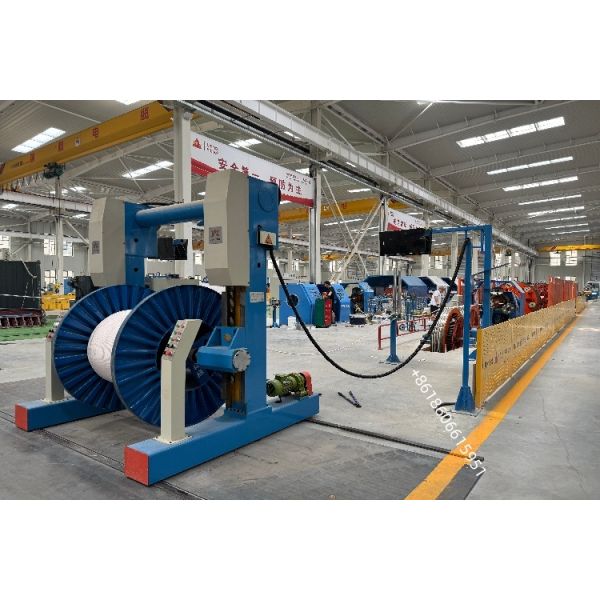

  • Integrated Line Components: Complete system includes central pay-off, rigid armoring cage, closing die, dual capstan, meter counter, and shaftless take-up with traversing
Rigid Type Copper Wire Armoring Machine with 630/24 Configuration and Precise Tension Control for Cable Stranding
Technical Specifications
Parameter Specification
Input wire diameter Ø 1.0－Ø 5.0mm
Max armouring OD Ø120mm
Max rotation speed 85r/min
Stranding cage motor power 75KW×2 (AC)
Stranding pitch (PLC controlled) 200-2000mm Stepless adjustable
Max Linear speed Max 30m/min
Capstan motor power 15KW×2 (AC)
Pay-off bobbin size in cage PND500
Max haul-off pulling force 4000kg
Central pay-off bobbin size PN1250-PN2500
Take-up bobbin reel size PN1250-PN2500
Machine center height 1000mm
36+36/500 Bobbins Stranding Cage Details
  • Maximum stranding cage speed: 85r/min
  • Pay-off bobbin in cage: PND500
  • Maximum linear speed: 30.0m/min
  • Pitch range: 200~2000mm (steplessly adjustable)
  • Cage motor power: 75KW (AC) × 2 units
  • Cage drive form: Independent motor drive
  • Back-twist structure: Planetary gear back-twist
  • Tension form: Mechanical friction
  • Wire clamp pin hardness: HRC60
  • Cage reducer lubrication: Oil pump spray lubrication
  • 72-head steel wire pre-deformation device provided
  • 100% mechanical back-twist achievement
  • Belt-type mechanical friction for adjustable pay-off tension
  • Main strand cage brake: Flat air brake system
  • PLC-controlled coordinated braking operations
  • Color touch screen human-machine interface operation
Automatic Load and Unload Reel System
Applicable reel: PND500mm
Automatic type: Side bottom hydraulic drives
Number of bobbin loading stations: 3 bobbins
Configuration: 3+3 bobbins/stranding cage
Rigid Type Copper Wire Armoring Machine with 630/24 Configuration and Precise Tension Control for Cable Stranding Rigid Type Copper Wire Armoring Machine with 630/24 Configuration and Precise Tension Control for Cable Stranding Rigid Type Copper Wire Armoring Machine with 630/24 Configuration and Precise Tension Control for Cable Stranding Rigid Type Copper Wire Armoring Machine with 630/24 Configuration and Precise Tension Control for Cable Stranding
