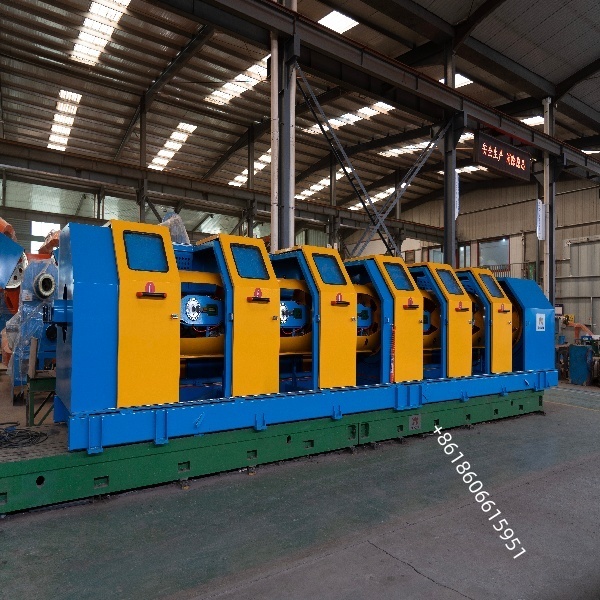

630 1+6 Tubular Electric Cable Stranding Machine Is A Key Piece Of Equipment For Manufacturing 7-Core (1+6) Stranded Conductors
630 1+6 Tubular Electric Cable Stranding Machine Is A Key Piece Of Equipment For Manufacturing 7-Core (1+6) Stranded Conductors
630 1+6 Tubular Electric Cable Stranding Machine Is A Key Piece Of Equipment For Manufacturing 7-Core (1+6) Stranded Conductors
630 1+6 Tubular Electric Cable Stranding Machine Is A Key Piece Of Equipment For Manufacturing 7-Core (1+6) Stranded Conductors
630 1+6 Tubular Electric Cable Stranding Machine Is A Key Piece Of Equipment For Manufacturing 7-Core (1+6) Stranded Conductors
630 1+6 Tubular Electric Cable Stranding Machine Is A Key Piece Of Equipment For Manufacturing 7-Core (1+6) Stranded Conductors
Specifications
Brand Name :
Beyde
Model Number :
630/1+6
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
200 set/year
Delivery Time :
90 days
Packaging Details :
Safety container packing
Usage :
Stranding
Color :
According to customer requirement
Name :
Tubular stranding machine
Application :
steel,aluminium,stranding steel wire,ACSR and AAAC
Function :
Stranding Wires
Machine central height :
700mm
Central pay-off bobbin :
PN400-PN630
Take-up bobbin size :
PND800-PND1600
Plc :
Siemens
Maximum bare wire diameter :
5mm
Warranty :
12 Months
Description

630 1+6 Tubular Electric Cable Stranding Machine Is A Key Piece Of Equipment For Manufacturing 7-Core (1+6) Stranded Conductors

The 630 1+6 Tubular Electric Cable Stranding Machine is a key piece of equipment for manufacturing 7-core (1+6) stranded conductors like ACSR, AAAC, copper, and aluminum. Below is a technical overview and the typical support an engineer can expect.

Machine Overview & Key Parameters
Type: 630 1+6 Tubular Stranding Machine
Application: Stranding 7-core (1+6) conductors such as ACSR, AAAC, copper, and aluminum.
Structure: The 6-bobbin stranding cage rotates, while the central wire remains stationary, suitable for medium and large-section stranded conductors.

Engineering Support Areas

Pre-Sales & Basic Engineering

Application Review: Confirming suitability for the conductor type and size.

Layout & Utility Design: Providing GA drawings and calculating power, air, and foundation needs.

Process Consultation: Advising on lay length, speed, and tension ranges .

Commissioning & Training

On-site Installation: Mechanical and electrical setup, alignment, and safety checks.

Trial Runs: Assisting with startup, optimization, and first-article approval.

Operator Training: Covering operation, basic maintenance, and troubleshooting .

Remote & Field Support

Remote Assistance: Diagnosing issues via phone, video, or remote desktop.

Spare Parts: Supplying critical components like bearings, belts, and sensors.

On-site Service: Sending engineers for complex faults or modernization projects .

Maintenance & Optimization

Preventive Maintenance: Creating schedules and checklists for bearings, lubrication, and tension systems.

Upgrades: Advising on control system updates, data integration, and efficiency improvements .

Documentation & Standards

Machine Manuals: For operation, electrical schematics, and parts lists.

Process Documents: Recommended settings and quality checklists for specific conductor types.

Standards: Compliance with IEC, ISO, and regional cable standards (e.g., for ACSR/AAAC)

MODEL
DIAMETER BEFORE STRANDING [mm]
ROTARY SPEED [RPM]
CAPSTAN DIAMETER [mm]
GJ-6/160
0.12-0.40
2200
2*250
GJ-12/160
0.12-0.4
2100
2*250
GJ-18/160
0.12-0.40
1900
2*250
GJ-12/200
0.3-0.90
1500
2*320
GJ-18/200
0.3-0.90
1400
2*320
GJ-24/200
0.3-0.90
1300
2*400
GJ-30/200
0.3-0.90
1200
2*600
GJ-36/200
0.3-0.90
1100
2*600
GJ-12/250
0.4-1.0
1400
2*400
GJ-18/250
0.4-1.0
1200
2*600
GJ-24/250
0.4-1.0
1200
2*600
GJ-30/250
0.4-1.0
1100
2*600
GJ-36/250
0.4-1.0
1100
2*600
GJ-12/300
0.5-1.3
1200
2*600
GJ-18/300
0.5-1.3
1200
2*600
GJ-24/300
0.5-1.3
1000
2*800
GJ-30/300
0.5-1.3
1000
2*800
GJ-36/300
0.5-1.3
900
2*800
GJ-12/400
0.8-2.5
700
2*1000
GJ-18/400
0.8-2.5
600
2*1000
GJ-24/400
0.5-2.5
600
2*1000
GJ-12/500
1.0-3.5
650
2*1200
GJ-18/500
1.0-3.5
500
2*1200
GJ-12/630
1.5-5.0
450
2*1400
GJ-18/630
1.5-5.0
400
2*1600
GJ-12/800
2.0-6.0
350
2*1600
GJ-24/800
2.0-6.0
300
2*1800
GJ-6/1000
3.0-18.0
300
2*2000
GJ-8/1000
3.0-18.0
300
2*2000

630 1+6 Tubular Electric Cable Stranding Machine Is A Key Piece Of Equipment For Manufacturing 7-Core (1+6) Stranded Conductors630 1+6 Tubular Electric Cable Stranding Machine Is A Key Piece Of Equipment For Manufacturing 7-Core (1+6) Stranded Conductors
