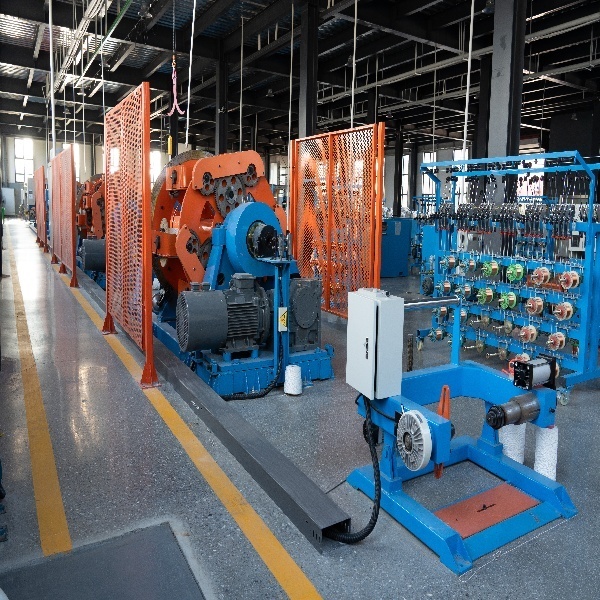

Stranding Machine JLY-500/1+8+16 Copper Wire Planetary Stranding Machine with Back Twisting
Stranding Machine JLY-500/1+8+16 Copper Wire Planetary Stranding Machine with Back Twisting
Stranding Machine JLY-500/1+8+16 Copper Wire Planetary Stranding Machine with Back Twisting
Stranding Machine JLY-500/1+8+16 Copper Wire Planetary Stranding Machine with Back Twisting
Specifications
Brand Name :
Beyde
Model Number :
JLY-500/1+8+16
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
200 set/year
Delivery Time :
90 days
Packaging Details :
Safety container packing
Usage :
Stranding
Color :
Customized
Application :
Cable Making Industry
Name :
Planetary stranding machine
Voltage :
380V
Function :
control cable,signal cable communication cable forming,stranding Wire and cable
Stranding pitch :
Step-less
Plc :
Siemens
Optional :
Magnetic hysteresis
Bearing :
NSK/SKF
Description

Stranding Machine Jl-500/1+8+16 Copper Wire Planetary Stranding Machine with Back Twisting

Equipment use
It is mainly used for twisted composite cables of various plastic cable insulation cores, and can also be used for robot cable twisting. It can also be used for the production of optical fiber composite overhead ground wires (OPGW) in high voltage overhead power transmission systems.

Product Series

01. Based on different bobbin size in stranding cage: PN200, PN315, PN400, PN500, PN630, PN710,
PND400, PND500, PND630, PND710
02. Based on different cores of stranding cable: 1+6(7B), 1+12 (13B), 1+18(19B)
03. Based on different supporting type: bearing type, support roller type.
04. Based on different type back-twist: gear type back-twist, back-twist ring type
05. Based on different pay-off tension control: magnetic powder brake type tension control, mechanical
automatic feedback type tension control, fixed tension mechanical friction type tension control.
06. Based on different take-up: Portal type, shaft-less type and shaft type in structure; φ1250, φ1600,
φ2000 in bobbin size.
07. Based on different capstan dia.: φ315, φ800, φ1000, φ1250, φ1500
08. Based on different control of main motor: DC speed regulation, AC frequency conversion speed regulation,
electromagnetic speed regulation

Single wire diameter Φ1.2~Φ5.0mm
Stranding cage rotating speed 8 bobbins 36.3~86.6r/min
16 bobbins 31.9~76r/min
Stranding pitch 8 bobbins 31.9~76r/min
16 bobbins 74.7~1284.2mm
Wrapping head rotating speed 170~380r/min

Stranding Machine JLY-500/1+8+16 Copper Wire Planetary Stranding Machine with Back Twisting


Features

01. Fully bearing support: Adopt fully bearing to support stranding tube, which highly increase the producing
efficiency and ensure the smooth running, low noise and long service life.
02. Convenient bobbin clamping: Adopt spring to clamp bobbin automatically and pneumatically loosen
bobbin with mechanical lock. Such designs are easy and safety to operate.
03. Wire broken protection: The wire broken protection function ensure the stop of machine automatically
once detect the wire broken.


Product Parameters

Main Compositions
01. Pay-off
02. Wire guiding stand
03. Stranding cage
04. Closing die holder
05. Compacting device (selectable)
06. Nonmetal taping device (selectable)
07. Length counter
08. Dual wheel capstan
09. Take-up
10. Mechanical transmission system
11. Electric control system
12. Safety protection system
