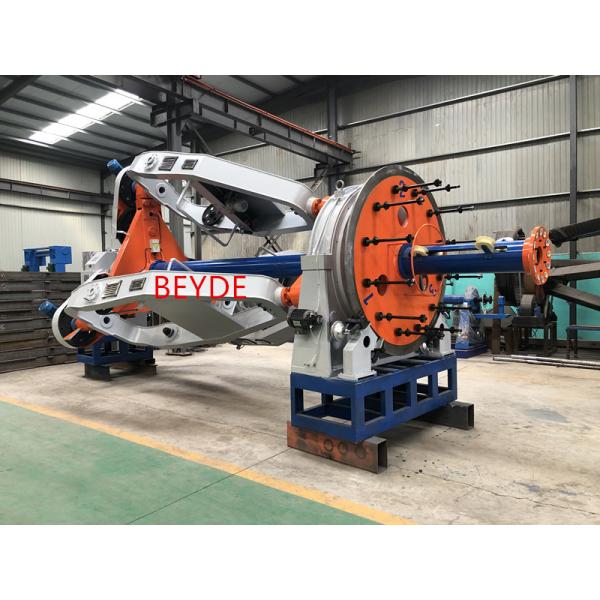

Planetary Type Cabling Laying Up Machine 1250/1+4 Energy Efficient

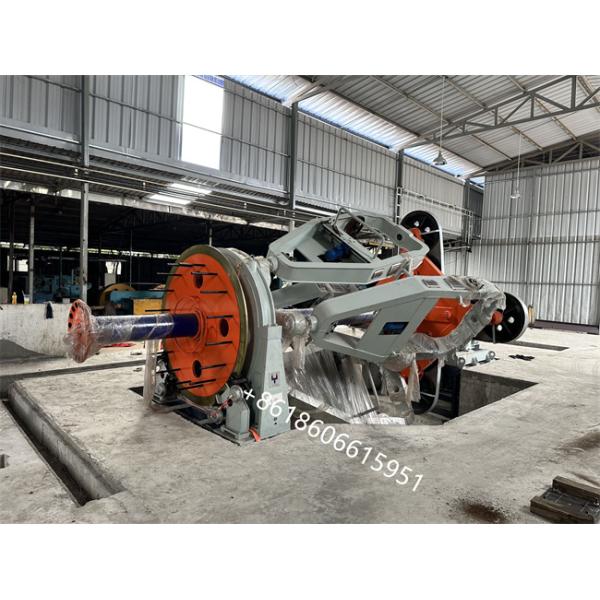

Planetary Type Cabling Laying Up Machine 1250/1+4 Energy Efficient

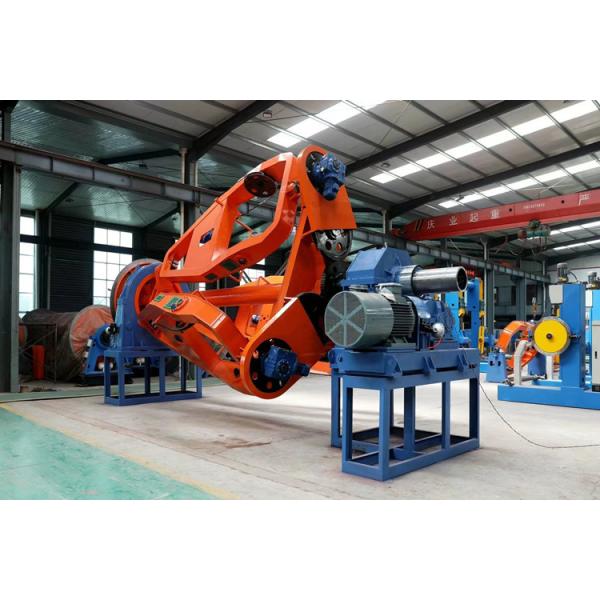

Planetary Type Cabling Laying Up Machine 1250/1+4 Energy Efficient
Planetary Type Cabling Laying Up Machine 1250/1+4 Energy Efficient
Specifications
Brand Name :
Beyde
Model Number :
1250/1+4
Place of Origin :
Hebei, China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 set/year
Delivery Time :
90 days
Packaging Details :
Safety protection package for sea freight.
Usage :
Stranding
Color :
customized
Warranty :
24 Months after installation
Wire material :
Insulation PVC wire
Wire range :
6-30mm
Wire size :
upto 300mm2
Stranding pitch :
Stepless adjust on PLC
Speed :
50r/min
Taping unit :
non-metallic and metallic
Taping pitch :
Stepless adjust
Taping Speed :
650r/min
Linear speed :
37 m/min
Stranding direction :
S or Z
Cable :
Sector or round cable
Description

Good Quality Planetary Type Cabling Machine Provider 1250/1+4 From China Manufacturer

1.Application:
This machine is mainly used for round power cables, back twist 100%, for 2 to 5-cores max 300mm2
The equipment is composed of PLC program control + touch screen +inverter, control. The electric control system is advanced,

easy to operate and reliable. Stranding cage adopts double support structure of front and rear large bearings, which is more

suitable for high-speed rotation and improves production efficiency.

Planetary Type Cabling Laying Up Machine 1250/1+4 Energy Efficient

2. Main technical parameter:

Input line dia. Φ6-Φ30 mm (10-300mm2)
Strand cage max rotation speed 50r/min
Max lay-up diameter of cable bundle Max Φ80mm
Stranding Direction S/Z
Lay-up pitch 300-2500mm (stepless adjustable)
Non-metallic wrapping head – 2 pad 500r/min
Pitch of Non-metallic wrapping head stepless adjustable
Linear max speed 50m/min
Haul-off Max pull force (Caterpillar type) 1600kg
Pay-off reel size in cage - Tip diameter Φ95mm PN1250
Column Pay-off reel size - Tip diameter Φ95mm PN1600 (PN1000 to PN1600)
Portal take up reel size - Tip diameter Φ95mm PN2500 (PN1600 to PN2500)
Main Cage motor power 45 kW (AC inverter motor)
Motor power of Non-metallic wrapping head 11 kW (AC inverter motor)
Capstan motor power 22 kW(AC inverter motor)
Take-up motor power 5.5 kW (AC inverter motor)
Machine high 1000mm
Machine direction Right to Left (Take up on the Left)
Installed power 85kw - 3 phase 380V50Hz
Total dimension (LxWxH)mm 35000x6000x5000 mm
Weight (Kg) After loading container

3. Documents with machine

  • Use Manual
  • Foundation diagram
  • Overall diagram, transmission system drawing, lubrication chart drawing
  • Electrical drawing
  • Air circuit layout
  • PLC + HMI progam
  • Inverter parameter

Planetary Type Cabling Laying Up Machine 1250/1+4 Energy EfficientPlanetary Type Cabling Laying Up Machine 1250/1+4 Energy Efficient

Planetary Type Cabling Laying Up Machine 1250/1+4 Energy EfficientPlanetary Type Cabling Laying Up Machine 1250/1+4 Energy Efficient

4.Electrical controlsystem

  • The electric control part is composed of operation cabinet, touch screen, etc., and each unit is equipped with corresponding control buttons such as emergency stop, inching, brake release, etc. for easyoperation.
  • The control cabinet is designed with good mechanical performance and dust-proof performance, and is equipped with an appropriate amount of forced ventilationfan.
  • Thepower supplyis threewirefivephasesystem: 380V(±10%)50HZ.
  • Total installed power:85KW
  • Motor protection function: the electrical control circuit is designed with functions such as phase loss, overload and overheating protection to prevent motor damage.
  • The alarm fault information can be queried online on the touch screen or Ethernet, with the function of alarm fault storage, and the historical operation information can be set to be deleted only by personnel with management authority.
  • All drive motors are designed with encoders, and the encoder feedback operates in the closed-loop control system.
  • The unit adopts PLC for unified and coordinated control operation. Touch screen HMI is adopted for operation. Simple and convenient operation.
