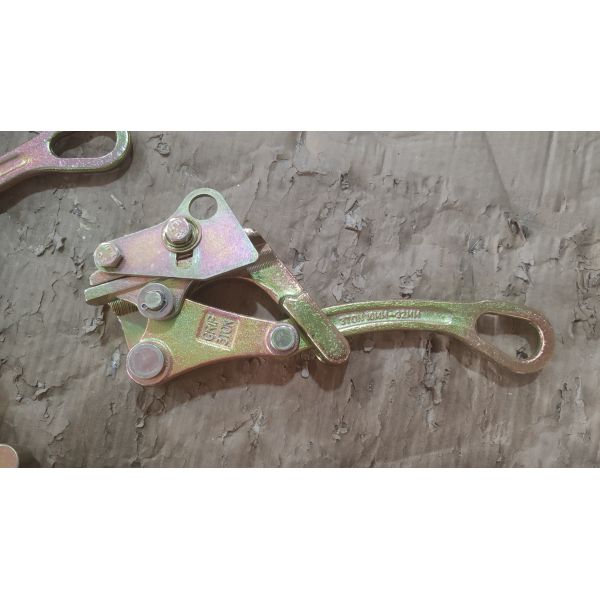

3T Heavy-Duty Cable Clamp with 30 kN Rated Load for 16–32mm Conductors in High-Strength Steel
3T Heavy-Duty Cable Clamp with 30 kN Rated Load for 16–32mm Conductors in High-Strength Steel
3T Heavy-Duty Cable Clamp with 30 kN Rated Load for 16–32mm Conductors in High-Strength Steel
3T Heavy-Duty Cable Clamp with 30 kN Rated Load for 16–32mm Conductors in High-Strength Steel
Specifications
Brand Name :
XINYA
Model Number :
AL
Certification :
ISO
Place of Origin :
Jiangsu,China
MOQ :
1 Pieces
Price :
get latest price.
Payment Terms :
L/C,T/T,
Supply Ability :
1000 Pieces per Month
Delivery Time :
7 workdays after payment
Packaging Details :
packed with carton
Function :
tight wire
Material :
steel
Weight :
2.5KG
Rated Load (KN) :
30
Type :
Wire Rope Clip
Application :
Power construction
Name :
3T Heavy-Duty Come-Along Cable Clamp | For 16–32mm Power Line Conductors
Description

3T Heavy-Duty Come-Along Cable Clamp | For 16–32mm Power Line Conductors



Overview

The 3 Ton Cable Grip is a heavy-duty come-along clamp designed for pulling and holding 16–32 mm power line conductors during stringing and installation work. Manufactured from high-strength alloy steel, the grip provides superior clamping force, stable performance, and long service life in demanding field conditions.
Its precision-machined jaws ensure a secure, slip-free hold on aluminum, ACSR, and ACCC conductors, making it an essential tool for overhead transmission and distribution projects.

Key Features

  • 3 Ton (30 kN) Working Capacity
    Engineered for reliable pulling and holding during conductor installation.

  • Wide Conductor Range: 16–32 mm
    Compatible with most overhead line conductors including ACSR, AAAC, ACCC, and steel-reinforced cables.

  • High-Strength Steel Construction
    Drop-forged alloy steel body for maximum durability and resistance to deformation.

  • Non-slip Jaw Design
    Precision heat-treated serrated jaws provide secure grip without damaging the conductor.

  • Optimized for Power Line Stringing
    Balanced structure and compact profile allow easy handling and quick attachment on-site.

  • Corrosion-resistant Finish
    Surface treated for long-term use in harsh outdoor environments.

Applications

The 3 Ton Cable Grip is widely used in:

  • Overhead transmission line installation

  • Medium- and high-voltage distribution networks

  • Tower erection and conductor stringing

  • Conductor tensioning and sag adjustment

  • Substation cable installation

  • Construction and maintenance of utility power lines

Technical Specifications

Item Description
Model 3T Cable Come-Along Clamp
Rated Load (Working Load) 30 kN (3 Ton)
Breaking Load 90–120 kN (depending on version)
Conductor Diameter Range 16–32 mm
Material High-strength forged alloy steel
Jaw Type Serrated, heat-treated, non-slip
Surface Treatment Anti-corrosion coating
Applicable Conductors ACSR, AAAC, ACCC, copper/aluminum cables
Net Weight Approx. 3.5–4.5 kg (customizable)

3T Heavy-Duty Cable Clamp with 30 kN Rated Load for 16–32mm Conductors in High-Strength Steel

FAQ

Q1: Can this grip be used for ACCC conductors?
Yes, the jaws are designed to provide firm holding without damaging composite-core conductors.

Q2: Is the rated load suitable for transmission line stringing?
Absolutely. The 3 Ton capacity is ideal for medium- to long-span conductor installation.

Q3: Do you offer customized logo engraving?
Yes, we can engrave your logo on the grip body. Sample photos are available before production.

Q4: What is the expected service life?
With proper maintenance, the grip can be used for many years due to its strong forged steel construction.

Q5: Can you provide test reports or certifications?
Yes, we can provide load test reports, material certificates, and other documents upon request.
