DSJ-180 Rubber Belt Cable Puller Winch 700KGS 8m/min
DSJ-180 Rubber Belt Cable Puller Winch 700KGS 8m/min
DSJ-180 Rubber Belt Cable Puller Winch 700KGS 8m/min
DSJ-180 Rubber Belt Cable Puller Winch 700KGS 8m/min
DSJ-180 Rubber Belt Cable Puller Winch 700KGS 8m/min
DSJ-180 Rubber Belt Cable Puller Winch 700KGS 8m/min
DSJ-180 Rubber Belt Cable Puller Winch 700KGS 8m/min
DSJ-180 Rubber Belt Cable Puller Winch 700KGS 8m/min
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
XINYA
Model Number :
DSJ180/150
MOQ :
1
Price :
$1,200-1,500
Weight :
150 kg
Pulling speed :
8 m/min
Electric motor :
2*1.1 KW
Cable diameter :
30-180 mm
Line pulling :
700 KGS
Model type :
DSJ-180
Oversize dimension :
1020*590*400 mm
Transmission ratio :
I=60
Rubber sheet thickness :
25 mm
Motor power :
1.5KW * 2
Max cable diameter :
200 mm
Pulling capacity :
900 KGS
Pulling speed range :
6 m/min
Weight range :
180-200 kg
Transmission type :
Rubber belt
Description

DSJ-180 Rubber Belt Cable Puller Winch 700KGS 8m/min

DSJ-180 Rubber Belt Cable Puller Winch 700KGS 8m/min

DSJ-180 Rubber Belt Cable Puller Winch 700KGS 8m/min

DSJ-180 Rubber Belt Cable Pulling Machine Cable Puller Winch

Application

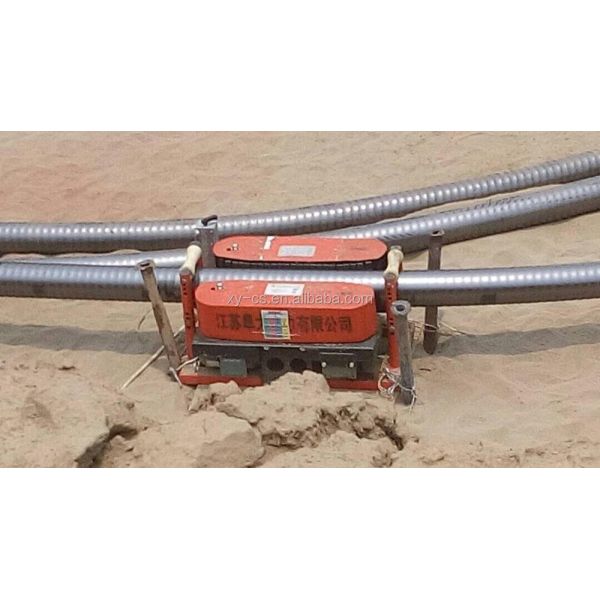

DSJ Small Volume Cable Conveyor Belt which we manufactured, is the ideal machine of cable transmission used in power,petroleum, chemical, industrial construction, power plant extension, substation and city network transmission cable.

It is suitable for cable trays in any form of channel, cable pipe, conveying a variety of power cable and control cable.

Features

1)Using this kind of this device changes the manual transmission cable

2)It can save a lot of labor, improve working conditions

3)reduce labor intensity

4)improve work efficiency

5)ensure the safety

Quality Control

We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.

Our Values

1,Take First-Class Quality as Target and First-class Service.

2,As Responsibility, To Succeed By Scientific Management.

3,Customer in Heart, Quality in Hand, Technology in the Lead.

Technical Data of DSJ Small Volume Cable Conveyor Belt

Model Type DSJ-150 DSJ-180
Line pulling(KGS) 700 900
Pulling Speed(m/min) 8 6
Electric motor 1.1KW *2 1.5KW * 2
Oversize dimension 950*500*400 1020*590*400
Weight(KG) 150 180-200
Cable diameter Φ30 - 180 mm Φ30 - 200 mm
Transimission I=45 I=60
Rubber sheet thickness 25mm 25mm

DSJ-180 Rubber Belt Cable Puller Winch 700KGS 8m/min

DSJ-180 Rubber Belt Cable Puller Winch 700KGS 8m/min

DSJ-180 Rubber Belt Cable Puller Winch 700KGS 8m/min

DSJ-180 Rubber Belt Cable Puller Winch 700KGS 8m/minDSJ-180 Rubber Belt Cable Puller Winch 700KGS 8m/min

DSJ-180 Rubber Belt Cable Puller Winch 700KGS 8m/min

DSJ-180 Rubber Belt Cable Puller Winch 700KGS 8m/min

DSJ-180 Rubber Belt Cable Puller Winch 700KGS 8m/min

DSJ-180 Rubber Belt Cable Puller Winch 700KGS 8m/min
