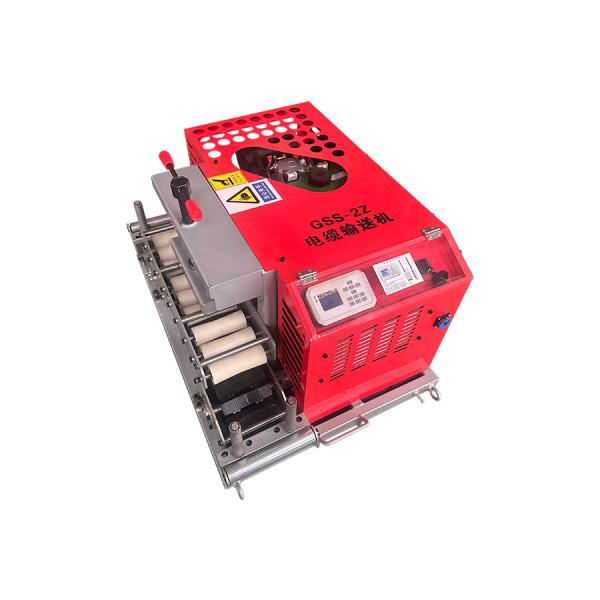

GSS-2ZC Diesel Cable Puller 7000N for 10-180mm Cables
GSS-2ZC Diesel Cable Puller 7000N for 10-180mm Cables
GSS-2ZC Diesel Cable Puller 7000N for 10-180mm Cables
GSS-2ZC Diesel Cable Puller 7000N for 10-180mm Cables
GSS-2ZC Diesel Cable Puller 7000N for 10-180mm Cables
GSS-2ZC Diesel Cable Puller 7000N for 10-180mm Cables
Specifications
Brand Name :
XINYA
Model Number :
GSS-3Z
Place of Origin :
Jiangsu, China
MOQ :
1
Price :
USD1000-USD2000
Payment Terms :
L/C,T/T,Western Union
Delivery Time :
7-15 days
Packaging Details :
wood case
Line Pulling :
7000N
Cable Diameter :
10-180mm
Pulling Speed :
0-26 m/min
Electric Motor :
1.8KW
Oversize Dimension :
950×600×600mm
Weight :
140 KGS
Clamp :
no more than 2.7KN
Model :
GSS-2ZC
Description
GSS-2ZC Diesel Engine Cable Pulling Machine Cable Puller 7000N Capacity for 10-180mm Cables
  • It is mainly composed of the following parts: frame, motor, reducer, track, switch, roller in and out, pressure bracket, remote control, controller, driver and So on. Its transmission force through the compound track, the use of high-strength wear- resistant tire rubber, So that the ca ble force uniform, durable.
  • Under normal circumstances, the intelligent cable conveyor is set to 30~ 50 meters/set. Select start/stop or linkage according to the local control screen, and start/stop all intelligent cable conveyors with one click.
  • It is characterized by large thrust, small size, light weight, easy operation, especially suitable for cable rows, tunnels, long- distance transportation and other occasions. In addition, single or multiple sets can be used at the same time, and can also be used in combination with related supporting products to improve the cable laying speed, reduce the labor intensity of workers, and improve eficiency. Remote control can be achieved where there is a mobile phone signal. In the linkage state, the remote control distance is > 800m.
Key Advantages
  • Enhanced Speed Design: Optimized drive system increases maximum transmission speed to 35 meters/min (adjustable), reducing construction time by over 30%
  • Rapid Deployment: Plug-and-play functionality meets emergency engineering requirements
  • Precision Control: Digital inverter enables stepless speed regulation with seamless switching between low-speed/high-torque and high-speed operation modes
  • Multi-Machine Synchronization: Multiple units can coordinate speed regulation to maintain tension balance during long-distance laying, preventing cable damage
  • Advanced Conveying Module: High wear-resistant composite track with non-slip bump design supports bidirectional operation for complex path adaptation
Product Overview
  • Double-track transmission system ensures stable traction across various cable specifications
  • Wear-resistant rubber conveyor belt/track with non-slip surface provides superior cable grip
  • Modular design enables multiple unit operation for ultra-long distance installations
Technical Specifications
Item Value
Model GSS-2ZC
Power Electric engine 1.8KW
Cable Diameter 10-180mm
Dimension 950×600×600mm
Pulling Speed 0-26m/min
Clamp ≤2.7KN
Pulling Force 6KN
Weight 140kg
