GSS-2ZP Cable Pulling Machine 600 KGS Capacity 10-180mm Diameter
GSS-2ZP Cable Pulling Machine 600 KGS Capacity 10-180mm Diameter
GSS-2ZP Cable Pulling Machine 600 KGS Capacity 10-180mm Diameter
GSS-2ZP Cable Pulling Machine 600 KGS Capacity 10-180mm Diameter
GSS-2ZP Cable Pulling Machine 600 KGS Capacity 10-180mm Diameter
GSS-2ZP Cable Pulling Machine 600 KGS Capacity 10-180mm Diameter
Specifications
Brand Name :
XINYA
Model Number :
GSS-2ZP
Place of Origin :
Jiangsu, China
MOQ :
1
Price :
USD1000-USD2000
Payment Terms :
L/C,T/T,Western Union
Delivery Time :
7-15 days
Packaging Details :
wood case
Line Pulling :
600 KGS
Cable Diameter :
10-180mm
Pulling Speed :
0-26 m/min
Electric Motor :
3KW
Oversize Dimension :
980x530x480mm
Weight :
140 KGS
Clamp :
no more than 2.7KN
Description

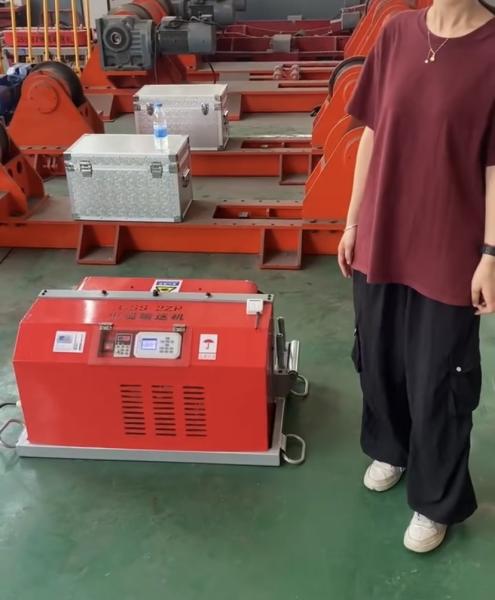

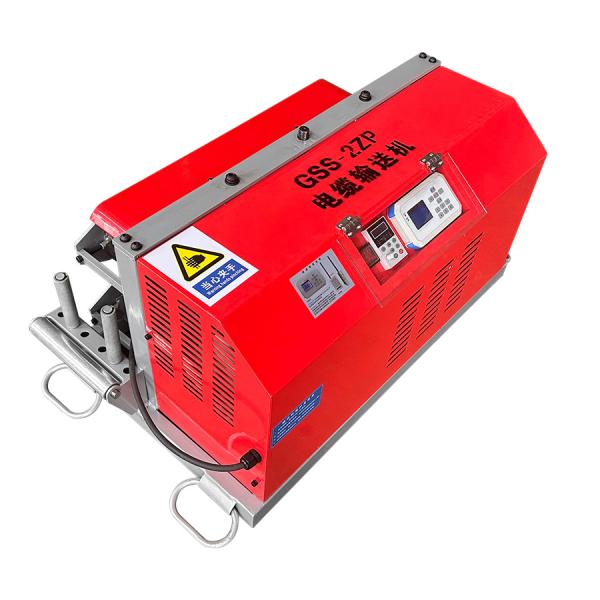

Intelligent Cable Pulling Machine Cable Conveyor for Underground Electrical Laying Model GSS-2ZP

Product Specifications
  1. GSS-2ZP intelligent cable conveyor is a new generation of intelligent cable laying equipment, mainlyused for long- distance, large sectioncabletractionand transportation. It assists construction personnel in laying cables efficiently and safely by means of mechanical drive, especially for complex terrain (such as tunnels, pipelines, Bridges, etc.) or scenarios requiring high traction.
  2. Double track transmission provides stable traction and ADAPTS to different cablespecifications.
  3. Equipped with wear- resistant rubber conveyor belt or track structure, the surface has non-slip lines to enhance the clam ping force on the cable.
  4. Multiple units can be used in series to form a continuous transmission line, suitable for ultra-long distance laying.

Key Features
  • Compact design with powerful thrust capability
  • Lightweight construction for easy handling in confined spaces
  • Can operate as single unit or synchronized with multiple machines via control box
  • Rubber-cast conveying wheels prevent cable skin damage
  • Adjustable center distance accommodates various cable diameters
  • Double caterpillar drive system protects cable insulation layer
  • High-strength DRC caterpillar construction for uniform force distribution
  • Low noise operation with minimal temperature rise
  • Easy maintenance design


Technical Specifications

Item Value
Model GSS-2ZP
Power Electric engine 3KW 380V 3phrase
Cable Diameter 10-180mm
Dimension 980x530x480mm
Pulling Speed (m/min) 0-26m/min
Clamp ≤2.7KN
Pulling force 6KN
Weight 140kg

GSS-2ZP Cable Pulling Machine 600 KGS Capacity 10-180mm Diameter

GSS-2ZP Cable Pulling Machine 600 KGS Capacity 10-180mm Diameter
