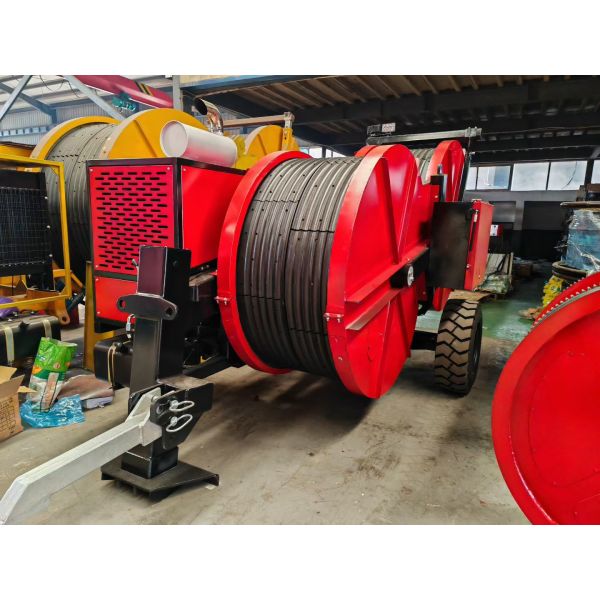

2×40kN Hydraulic Cable Tensioner for Overhead Line Stringing | Dual-Groove Conductor Tension Machine

1. Overview

The 2×40kN Hydraulic Cable Tensioner is a high-performance tension control device designed for overhead transmission line construction and conductor stringing projects. With two independent tensioning wheels providing a combined tension force of 40kN per groove, this machine ensures smooth, stable, and safe installation of ACSR, AAAC, OPGW, and ground wires.

It is widely used in 110kV–220kV transmission lines and medium-span conductor stringing operations.

2. What Is a Hydraulic Cable Tensioner?

A hydraulic cable tensioner provides constant and controlled tension during conductor or OPGW installation.
Its purpose is to:

• Prevent conductor sagging

• Maintain uniform tension

• Protect conductors from damage

• Improve overall stringing safety and efficiency

The 2×40kN model is ideal for dual-conductor or single large-size conductor stringing.

3. Key Features

✔ Dual Tensioning Grooves (2 × 40kN)

• Ensures stable conductor deployment

• Suitable for bundled conductors or single large-size conductors

✔ Automatic Hydraulic Control

• Constant tension regulation

• Smooth speed adjustment

• Overload automatic protection

✔ Wear-Resistant Bullwheel Liners

• Aluminum or MC nylon lining

• Maximum protection for conductor surface

✔ Real-Time Digital Monitoring

• Displays tension, speed, and conductor payout length

• Optional data recorder

✔ Robust Build for Field Work

• Reliable in mountains, long spans, river crossings

• Designed for long hours of continuous operation

4. Advantages

• Stable & consistent tension, ideal for high-precision stringing

• Highly durable hydraulic system with low maintenance cost

• Reduced conductor wear thanks to optimized groove design

• Designed for high-voltage line contractors & EPC projects

• Supports single or bundled conductor operations

5. Applications

The 2×40kN hydraulic tensioner is commonly used for:

• Overhead transmission line construction (110kV–220kV)

• ACSR / AAAC conductor tension stringing

• OPGW and ground wire installation

• Mountain, river crossing, and medium-span projects

• Dual-conductor operations

Main component

1. Engine :Deutz air-cooled diesel engine.

2. main pump and main motor :Rexroth (BOSCH )

3. Reducer : R.R(Italian )

4. Main hydraulic valve :Rexroth (BOSCH )

5. Radiator :AKG

6. Hydraulic instrument :

7. it can choose the Chinese air-cooled engine .the model is SA-YZ2×40B

8. according to needing,it can configure mobile control consoles , it easy for one operator to control 2 machines simultaneously ,which facilitates 4-conductor–stringing operation using two machines .the control consoles order number is :07193

Technical Data

FAQ

Q1: What conductor sizes can the 2×40kN tensioner handle?

Suitable for ACSR/AAAC conductors, OPGW, and ground wires used in 110–220 kV lines.

Q2: Does this machine support constant tension?

Yes. The hydraulic system provides fully automatic constant-tension control.

Q3: Can this machine be used for bundled conductors?

Yes, the dual-groove design is ideal for single or double-bundle conductor stringing.

Q4: Is data recording available?

Optional digital recorder for project documentation.

Q5: What is the typical rope used?

Usually anti-twist steel wire rope.
