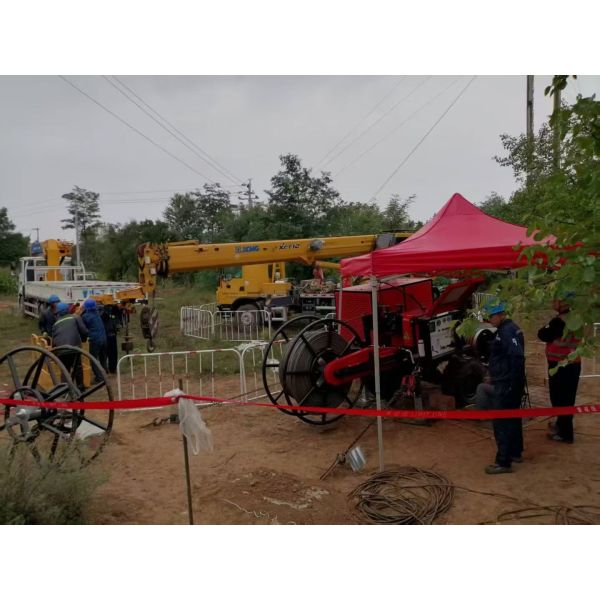

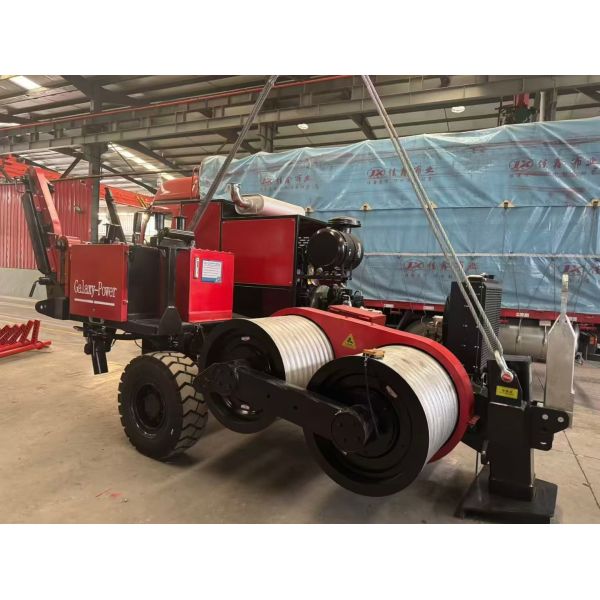

SA-YQ180 Diesel Hydraulic Puller for Overhead Line Stringing | 180kN Power Line Construction Equipment

1. Overview

The SA-YQ180 Diesel Hydraulic Puller is a heavy-duty pulling machine designed for overhead transmission line construction and long-distance conductor stringing. With a maximum pulling force of 180 kN, this model ensures stable, efficient, and safe stringing operations for conductors, optical ground wires (OPGW), and ground wires in high-voltage power line projects.

Built with a powerful diesel engine and advanced hydraulic control system, the SA-YQ180 delivers consistent performance in challenging field conditions.

2. What Is a Hydraulic Puller?

A hydraulic puller is a machine used to pull conductors or OPGW during power transmission line construction.
It provides controlled pulling force, constant tension regulation, and high reliability for maintaining conductor safety and preventing damage.

The SA-YQ180 is specifically engineered for 132kV–500kV line construction.

3. Key Features

✔ High Pulling Capacity

• Maximum pulling force: 180 kN

• Suitable for long-span, mountain, and heavy-load projects.

✔ Auto-Overload Protection

• Automatic hydraulic pressure limit ensures equipment and conductor safety.

✔ Advanced Hydraulic System

• Smooth pulling performance with stepless speed adjustment.

• Constant pulling force control.

✔ High-Efficiency Diesel Engine

• Powerful & fuel-saving design.

• Stable performance for continuous operation.

✔ Large Diameter Bullwheel

• Minimizes conductor damage.

• Wear-resistant liner for long service life.

✔ Real-Time Digital Display

• Shows pulling force, speed, and rope length.

• Optional data recorder for project documentation.

4. Advantages

• High reliability for long-term continuous pulling work

• Low maintenance and user-friendly controls

• Consistent pulling force, ideal for high-voltage long spans

• Improved safety with multiple monitoring & protection systems

• Engineered for multiple terrain types (mountains, rivers, flatlands)

5. Applications

The SA-YQ180 is widely used in:

• Overhead transmission line stringing (132kV–500kV)

• Conductor & OPGW installation

• Ground wire pulling

• Heavy-duty tension stringing operations

• Mountain & long-span crossing projects

• Utility construction, EPC contractors, and power grid companies

main component

1. Engine:Cummins(USA) water cooled engine.

2. Main variable pump and main motor:rexroth(BOSCH).

3,Reducer:RR(Italian).

4.Main hydraulic valve:rexroth(BOSCH)

5. Radiator:AKG

6. Hydraulic instrument:

7. Mating with model GSP1600 drum .

Characteristic

1. It is applied to traction in the process of paying off the wire,earth wire,OPGW and ADSS.

2. Closed Hydraulic back oil circuit, bidirectional variable plunger pump ,you can change the traction in any case.

3. Maximum traction force can be preset, automatic overload protection.

4. Pressure loss automatic braking device is used to ensure the safety of system operation when loss of pressure in case of the engine suddenly stops or other causes.

5. Hydraulic traction rope clamping device, automatic rope ,convenient to loading and unloading.

6. Trailer type structure,rigid scaffold,attractive appearance.

Technical Data
