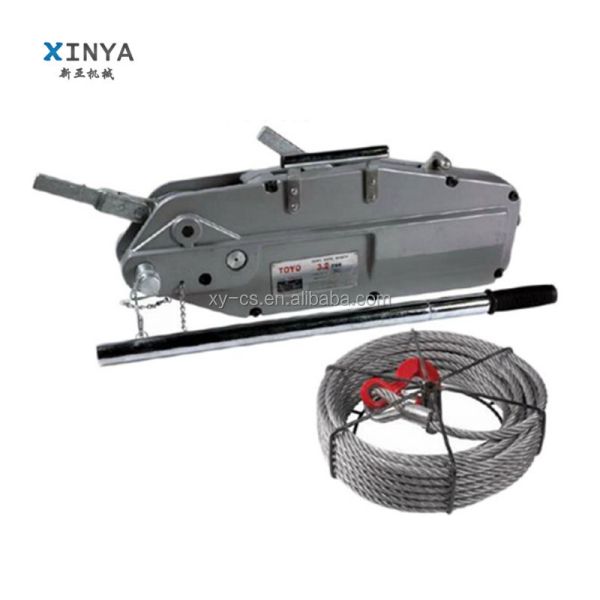

Portable Hand Operated Wire Rope Winch Tirfor with 3.2 Ton Capacity and 20M Max Lifting Height
Portable Hand Operated Wire Rope Winch Tirfor with 3.2 Ton Capacity and 20M Max Lifting Height
Portable Hand Operated Wire Rope Winch Tirfor with 3.2 Ton Capacity and 20M Max Lifting Height
Portable Hand Operated Wire Rope Winch Tirfor with 3.2 Ton Capacity and 20M Max Lifting Height
Specifications
Model Number :
VIT
Brand Name :
Xinya
Place of Origin :
Jiangsu, China
Certification :
ISO
MOQ :
1
Power Source :
Hand
Capacity :
0.8-5.4T
Max Lifting Load :
3.2T
Max Lifting Height :
20M
Sling Type :
Wire Rope
Lift Speed :
manual
Body Material :
Aluminium
Overload Protection :
Shearing pin
Wire Rope Diameter :
IWRC 16
Wire Rope Safety :
5×WLL
Breaking Strength :
17200 kg
Net Weight :
23 kg
Pulling Capacity :
6000 kg
Tested Capacity :
6000 kg
Rope Advance :
Long per stroke
Description

Cable Pulling Tools Hand Wire Rope Winch Wire Rope Tirfor 3.2 Ton


Portable tirfor 3.2 ton hand winches
Certification: ISO, CE,TUV,SGS
Standard lifting height: According the inquiry.


Specification
1. Capacity from 0.8T to 3.2t
2. High quality aluminium body
3. Overload protection
4. Light in weight ,convenient to carry,portable electric winches

Features
1. Forward and reversing levers in tandem provide slim design and assure power transfer along the centre line of the Yaletrac cable puller.
2. Overload protection is by a shearing pin in the forward lever. Spare shear pins are conveniently located in the carrying handle or operating lever. A broken pin can be replaced without removing the load from the Yaletrac cable puller.
3. A lever disengages the rope clamp system allowing easy, smooth installation of the rope.
4. Yaletrac uses a special flexible rope. It has six strands with a steel core and is identified by an orange strand. The rope is tapered at one end for easy threading and fitted with an eye sling hook with safety latch on the other end.
5. The parallel arrangement of the clamping system protects the rope by distributing the clamping forces evenly. A long rope advance per each lever stroke increases the working speed.
6. The large opening in the top of the unit allows easy cleaning: simply flush the unit with water, apply motor oil for lubrication and the Yaletrac cable puller is again ready for use.

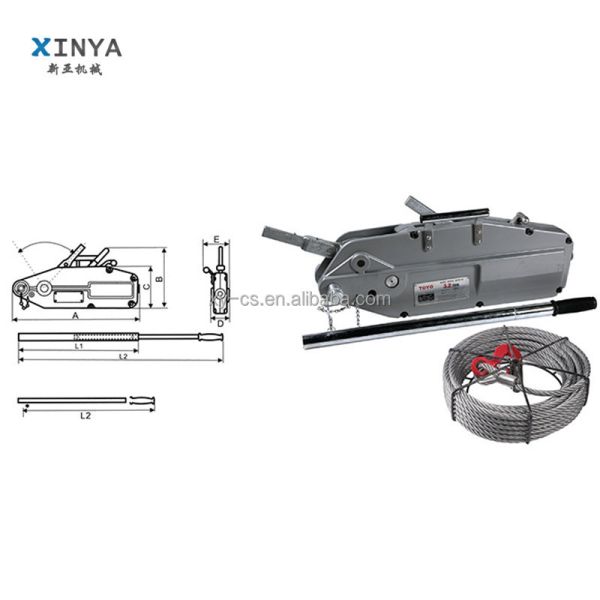

Data Sheet

Item NoVIT-800VIT-1600VIT-3200VIT-5400
Lifting Capacity (kg)800160032005400
Pulling Capacity (kg)13002800600010125
Tested to (kg)15003000600010125
Steel wire rope dia. (mm)IWRC 8.3IWRC 11IWRC 16IWRC 20
Wire rope safety factory load caoacity (mm)5×WLL5×WLL5×WLL5×WLL
Breaking strength of wire Rpoe (kg)543096801720027000
Net weight (without wire Rope) (kg)6.4122328
