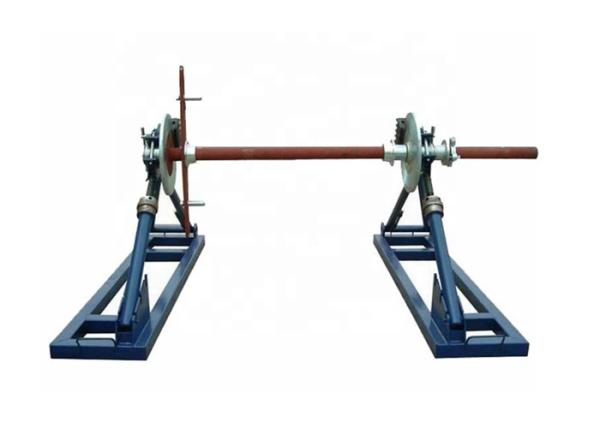

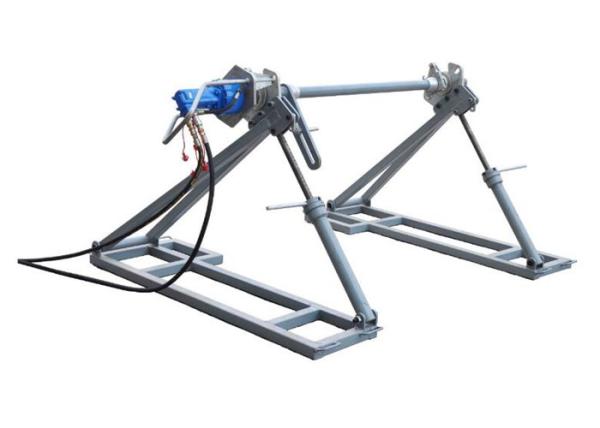

5 Ton Motorized Hydraulic Conductor Reel Stand Compatible with Tensioner

Overview of 5 Ton Motorized Hydraulic Conductor Reel Stand

The 5 Ton Motorized Hydraulic Conductor Reel Stand is a specialized piece of equipment designed for conductor paying-off operations in overhead transmission line and power construction projects. With its motorized hydraulic system, this reel stand offers smooth, safe, and efficient cable or conductor unwinding. It is specifically designed to work in combination with a tensioner, ensuring stable and controlled conductor stringing.

Definition of Motorized Hydraulic Conductor Reel Stand

A Motorized Hydraulic Conductor Reel Stand is a heavy-duty support device used to hold and rotate conductor reels during cable paying-off. Unlike manual reel stands, this model is equipped with a hydraulic lifting system and a motor-driven mechanism, which makes it easier to load heavy reels and control their rotation during conductor installation. The 5 Ton capacity ensures reliable performance for large-scale power transmission projects.

Features of 5 Ton Motorized Hydraulic Conductor Reel Stand

• Load Capacity: Designed for reels up to 5 tons, suitable for heavy-duty conductors.

• Motorized Drive: Equipped with a motor for smooth and continuous paying-off.

• Hydraulic Lifting: Easy reel loading and unloading with hydraulic jacks.

• Stable Base Frame: Heavy-duty frame ensures safety during operation.

• Compatibility: Works seamlessly with hydraulic tensioners for conductor stringing.

• Durability: Built from high-strength materials for long-term field use.

Advantages of 5 Ton Motorized Hydraulic Conductor Reel Stand

1. Efficient Operation: Motorized system ensures steady and controlled reel rotation.

2. Time-Saving: Hydraulic lifting makes reel loading faster and safer.

3. Enhanced Safety: Reduces manual handling, lowering risk for operators.

4. Precision Control: Works with a tensioner to achieve consistent conductor tension.

5. Long Service Life: Rugged design ensures durability in tough outdoor environments.

Applications of 5 Ton Motorized Hydraulic Conductor Reel Stand

The Motorized Hydraulic Conductor Reel Stand is widely used in:

• Overhead power line construction for conductor paying-off.

• Transmission line stringing projects requiring controlled unwinding.

• Large-scale cable installation where stable and motorized reel support is essential.

• Utility and engineering projects involving tension-controlled conductor operations.

Data Sheet

FAQ about 5 Ton Motorized Hydraulic Conductor Reel Stand

Q1: What is the maximum reel weight this equipment can handle?
A1: It is designed to handle conductor reels up to 5 tons safely.

Q2: Does it require manual rotation?
A2: No, the reel stand is motorized, allowing automatic and controlled rotation.

Q3: Can it work independently?
A3: It can support reels, but for conductor stringing it must be used with a tensioner for proper control.

Q4: Is it easy to load heavy reels?
A4: Yes, the hydraulic lifting system makes reel loading and unloading fast and efficient.

Recommended Tensioners for Use with This Reel Stand

Since this 5 Ton Motorized Hydraulic Conductor Reel Stand is designed to work with a tensioner, we recommend pairing it with one of the following:

• Hydraulic Conductor Tensioner (40kN–80kN): Ideal for single or double conductor stringing.

• Double Conductor Hydraulic Tensioner (90kN–120kN): Suitable for twin bundle conductors in high-voltage projects.

• Large Capacity Hydraulic Tensioner (150kN–180kN): Best for 500kV or above transmission lines requiring precise tension control.

By combining the 5 Ton Motorized Hydraulic Conductor Reel Stand with the right hydraulic tensioner, you ensure safe, efficient, and high-quality conductor stringing operations in any transmission line project.
