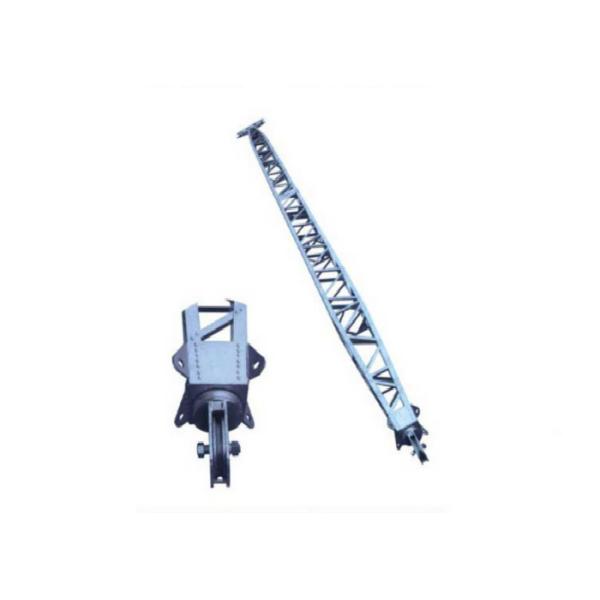

Aluminum Alloy Lattice Gin Pole 500×500mm for High-Stability Tower Erection in Power Construction
Aluminum Alloy Lattice Gin Pole 500×500mm for High-Stability Tower Erection in Power Construction
Aluminum Alloy Lattice Gin Pole 500×500mm for High-Stability Tower Erection in Power Construction
Aluminum Alloy Lattice Gin Pole 500×500mm for High-Stability Tower Erection in Power Construction
Specifications
Brand Name :
XINYA
Model Number :
LBN
Certification :
ISO
Place of Origin :
Jiangsu,China
MOQ :
1 unit
Price :
USD1000-5000/set
Payment Terms :
L/C,T/T,
Supply Ability :
100 Units per Week
Delivery Time :
15 workdays after payment
Packaging Details :
according to your requirment
Type :
gin pole
Application :
tower erection
Material :
Aluminum alloy
Usage :
power construction
Selling point :
Gin Pole for tower erection
Cross Section :
250*250-600*600
Name :
Aluminum Lattice Gin Pole 500×500mm for Transmission Line Tower Erection
Description
Aluminum Lattice Gin Pole 500*500mm for Transmission Line Tower Erection
Product Overview
The aluminum lattice gin pole (500*500mm) is engineered for tower erection in transmission and distribution line construction. Constructed from high-strength aluminum alloy, this gin pole delivers an exceptional strength-to-weight ratio, facilitating easy transportation and on-site assembly. It is extensively utilized for lifting tower sections, poles, and construction materials in power line projects.
Key Features
  • High-strength aluminum alloy structure
  • Lightweight and easy to handle
  • Lattice design for superior stability
  • Ideal for tower erection and lifting operations
  • Corrosion-resistant materials
  • Modular design for easy transport and assembly
  • Available with single or double pulley configuration
  • Suitable for transmission and distribution line projects
Technical Specifications - 500*500mm Series
Model Length (m) Allowable Load (kN) Cross Section (mm) Weight (kg/m) Remarks
LBNX500-14A1475500*50018Double pulley
LBNX500-15A1570500*50018Double pulley
LBNX500-16A1664500*50018Double pulley
LBNX500-17A1757500*50018Double pulley
LBNX500-18A1850500*50018Double pulley
LBNX500-19A1945500*50018Double pulley
LBNX500-20A2041500*50018Double pulley
LBNX500-21A2137500*50018Double pulley
Strengthened Type - 500*500mm
Model Length (m) Allowable Load (kN) Cross Section (mm) Weight (kg/m) Remarks
LBNX500-18B1877500*50022Strengthened
LBNX500-19B1970500*50022Strengthened
LBNX500-20B2065500*50022Strengthened
LBNX500-21B2160500*50022Strengthened
LBNX500-22B2256500*50022Strengthened
LBNX500-23B2352500*50022Strengthened
LBNX500-24B2447500*50022Strengthened
LBNX500-25B2542500*50022Strengthened
Applications
  • Transmission line tower erection
  • Distribution line construction
  • Pole lifting and installation
  • Power infrastructure projects
  • EPC and utility construction works
Product Advantages
The 500*500mm lattice gin pole is engineered for heavy-duty tower erection. Compared with tubular gin poles, the lattice structure provides superior stability and enhanced load distribution. The aluminum alloy material significantly reduces weight, improving efficiency during transportation and installation. Strengthened models are available for higher load requirements and demanding working conditions.
Working Principle
The gin pole is assembled vertically and secured to the tower structure. Utilizing pulley systems and lifting equipment, it enables safe and efficient lifting of tower sections and materials during construction operations.
Optional Configuration
  • Single pulley system
  • Double pulley system
  • Strengthened structure (B type)
  • Different lengths based on project requirements
Packaging and Delivery
  • Modular packing for easy transport
  • Export wooden case or pallet
  • Delivery time: 10-20 days
  • Shipping: sea freight recommended for long length items
OEM & Customization
We support customization based on project requirements:
  • Length and load capacity
  • Cross section size
  • Pulley configuration
  • Logo marking
  • Color and surface treatment
Why Choose Us
We have extensive experience supplying tower erection tools and stringing equipment to global power transmission projects. Our gin poles are widely used in Europe, Middle East, and South America.
Inquiry Now
Contact us for detailed drawings, project recommendations, and the best price for aluminum lattice gin poles. We can suggest suitable models based on your tower height and lifting requirements.
