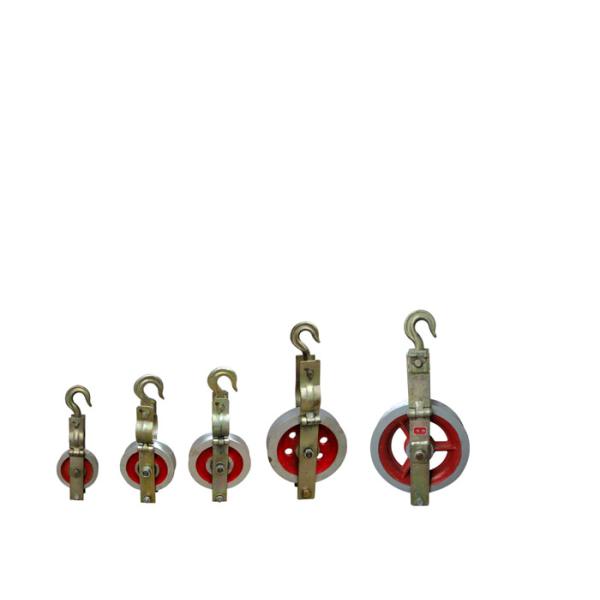

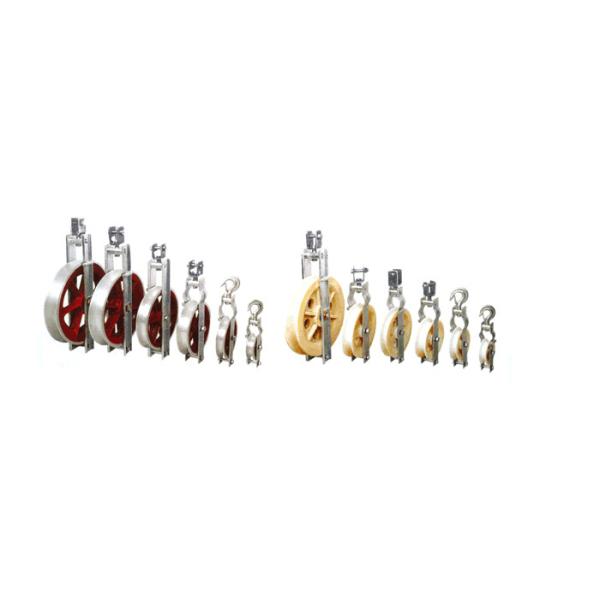

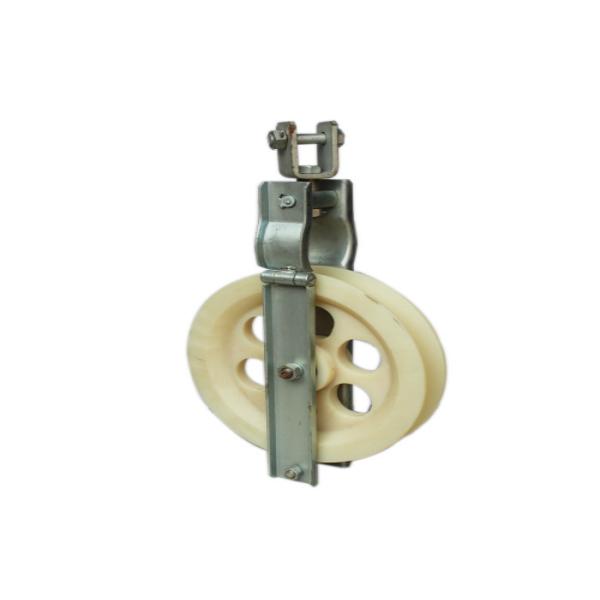

Transmission Line Stringing Tools Single Sheave Stringing Pulley Block With Nylon Wheel
Transmission Line Stringing Tools Single Sheave Stringing Pulley Block With Nylon Wheel
Transmission Line Stringing Tools Single Sheave Stringing Pulley Block With Nylon Wheel
Transmission Line Stringing Tools Single Sheave Stringing Pulley Block With Nylon Wheel
Specifications
Brand Name :
XINYA
Model Number :
SHD
Place of Origin :
Jiangsu, China
MOQ :
1 Pieces
Payment Terms :
L/C, T/T,
Supply Ability :
1000 pieces/month
Delivery Time :
10-15 workdays after payment
Packaging Details :
carton
Certification :
ISO
Price :
get latest price
Rated Load :
5-20 KN
Material :
Aluminum / MC Nylon Wheel
Application :
Power construction
Type :
sheave block
Usage :
stringing
Sheave :
single sheave
Description

Transmission Line Stringing Tools Single Sheave Stringing Pulley Block With Nylon Wheel

Use and Characteristic

It is used for releasing the aluminum wire, ACSR, insulated wire in pole and tower erection.

The wheel groove can be through with clamp pipe, aluminum tube, connector etc..

The material is aluminum alloy and MC nylon .

Pulley pendant is combined plate and hook type.

Description

a. We manufacture a lot of models for different uses in the overhead transmission line construction.

b. They have are used to support conductors,OPGW,ADSS, communicatio lines.

c. The sheave of the pulley blocks are made from higth strength nylon,or aluminum materials ,and the frame of blocks are made of galvanized steel.The lateral ones are mounted on ball bearings.

Remarks:All kinds of pulley blocks can be manufactured according to the customers's requirements.

If any interested,please feel free to contact with us for more information,and we will try our best to comply with your requirements.

Technical Data

Product No. Model Type Applicable Condcutor(mm2) Rated Load(KN) Weight(kg) Material of Wheel
80335 SHD-120*30 LGJ25-70 5 2 Aluminum wheel
80336 SHD-160*40 LGJ95-120 10 3.2 Aluminum wheel
80337 SHD-200*40 LGJ150-240 15 3.8 Aluminum wheel
80338 SHD-200*60 LGJ150-240 15 4.2 Aluminum wheel
80339 SHD-250*40 LGJ150-240 20 5.2 Aluminum wheel
80340 SHD-250*60 LGJ300-400 20 5.5 Aluminum wheel
80341 SHD-270*60 LGJ300-400 20 6.8 Aluminum wheel
80342 SHD-320*60 LGJ300-400 20 10.5 Aluminum wheel
80343 SHD-400*80 LGJ400-500 20 12 Aluminum wheel

Transmission Line Stringing Tools Single Sheave Stringing Pulley Block With Nylon Wheel

Product No. Model Type Applicable Conductor ACSR(mm2) Rated Load(KN) Weight(kg) Matetrial of wheel
80344 SHDN-120*30 25-70 5 1.5 MC Nylon
80345 SHDN-160*40 95-120 10 2.4 MC Nylon
80346 SHDN-200*40 150-240 15 2.6 MC Nylon
80347 SHDN-200*60 150-240 15 3.1 MC Nylon
80348 SHDN-250*40 150-240 20 3.7 MC Nylon
80349 SHDN-250*60 300-400 20 3.9 MC Nylon
80350 SHDN-270*60 300-400 20 4.4 MC Nylon
80351 SHDN-320*60 300-400 20 7.5 MC Nylon
80352 SHDN-408*75 400-500 20 11 MC Nylon

Transmission Line Stringing Tools Single Sheave Stringing Pulley Block With Nylon Wheel
