16mm Diameter 250m Length Flexible Fiberglass Duct Rodder for Cable Pulling and Conduit Installation
16mm Diameter 250m Length Flexible Fiberglass Duct Rodder for Cable Pulling and Conduit Installation
16mm Diameter 250m Length Flexible Fiberglass Duct Rodder for Cable Pulling and Conduit Installation
16mm Diameter 250m Length Flexible Fiberglass Duct Rodder for Cable Pulling and Conduit Installation
16mm Diameter 250m Length Flexible Fiberglass Duct Rodder for Cable Pulling and Conduit Installation
16mm Diameter 250m Length Flexible Fiberglass Duct Rodder for Cable Pulling and Conduit Installation
16mm Diameter 250m Length Flexible Fiberglass Duct Rodder for Cable Pulling and Conduit Installation
16mm Diameter 250m Length Flexible Fiberglass Duct Rodder for Cable Pulling and Conduit Installation
16mm Diameter 250m Length Flexible Fiberglass Duct Rodder for Cable Pulling and Conduit Installation
16mm Diameter 250m Length Flexible Fiberglass Duct Rodder for Cable Pulling and Conduit Installation
16mm Diameter 250m Length Flexible Fiberglass Duct Rodder for Cable Pulling and Conduit Installation
16mm Diameter 250m Length Flexible Fiberglass Duct Rodder for Cable Pulling and Conduit Installation
Specifications
Brand Name :
XINYA
Model Number :
BCD-16
Certification :
ISO
Place of Origin :
Jiangsu, China
MOQ :
2 sets
Price :
Get Latest Price
Payment Terms :
L/C,T/T,
Supply Ability :
3000 set/sets per month
Delivery Time :
3 days after payment
Packaging Details :
carton
Application :
cable push pull
Technique :
Pultrusion
Dia :
16mm
Length :
250 m
Advantage :
flexible
Shape :
Round Rod
Product :
16mm Fiberglass Duct Rodder 250m Cable Pulling Rod for Conduit Installation
Description
16mm Fiberglass Duct Rodder 250m Cable Pulling Rod
Professional 16mm fiberglass duct rodder with 250 meter length, engineered for underground cable installation, duct cleaning, and conduit threading. Features exceptional flexibility, high tensile strength, and durable construction ideal for telecom and power infrastructure projects.

Professional Cable Installation Tool
The 16mm fiberglass duct rodder is a specialized tool designed for guiding cables through ducts and conduits. With a 250 meter long fiberglass rod, it delivers superior pushing force and flexibility, enabling smooth operation in long-distance and complex pipeline systems. Widely utilized in telecommunication, electrical, and underground cable installation projects.

Key Features
  • 16mm rod diameter for powerful pushing force
  • 250 meter length for extended distance operations
  • High-strength fiberglass core construction
  • Smooth outer coating to minimize friction
  • Excellent flexibility with high durability
  • Anti-corrosion and weather resistant properties
  • Easy handling with integrated steel frame and wheels

Product Specifications
Parameter Value
Product Name Fiberglass Duct Rodder
Diameter 16 mm
Length 250 m
Material Fiberglass + Protective Coating
Frame Steel frame with wheels
Color Yellow / Blue / Custom
Pulling Strength High tensile strength
Working Environment Underground duct / conduit

Applications
  • Underground cable installation
  • Telecom fiber optic cable laying
  • Conduit and pipe threading
  • Duct cleaning and inspection
  • Electrical and infrastructure projects

Performance Advantages
Feature Benefit
Thick 16mm rod Strong pushing capability
Long 250m length Suitable for long distance ducts
Smooth coating Reduces friction and protects cable
Flexible structure Easy to pass bends and curves
Durable material Long service life

Quality Comparison
Item Our Product Low Quality Product
Rod Material High quality fiberglass Low density material
Coating Smooth and wear-resistant Easy to crack
Flexibility Strong and stable Easy to break
Frame Strong steel frame Weak structure
Service Life Long Short

Technical Data
Specification Details
Rod Diameter (mm) Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16
Rod Length (m) 30~500
Frame Spec.(mm) 1300x450x1330,1200x420x1220,980x350x1000, 680x240x700, etc
Wheel Diameter(mm) 300mm
Wall thickness of Metal Frame 2.2mm
Color blue, yellow, red, white etc
Rod Inner Material Extruded by fiber glass and high strength resin at high temperature
Rod Outer Material High Density polyethylene coating
Iron Frame Material Steel with high-temperature sprayed plastic or Spray coating
Wheel Material rubber
Brake Yes
Drawing head copper
Density 55g/m
Working temperature -40°C to +80°C
Breaking tension 100kg
Bending Radius 295mm
Technology Pultrusion
Inside Packaging plastic woven strip wind around the frame
Outside Packaging Wooden pallet and Wooden box

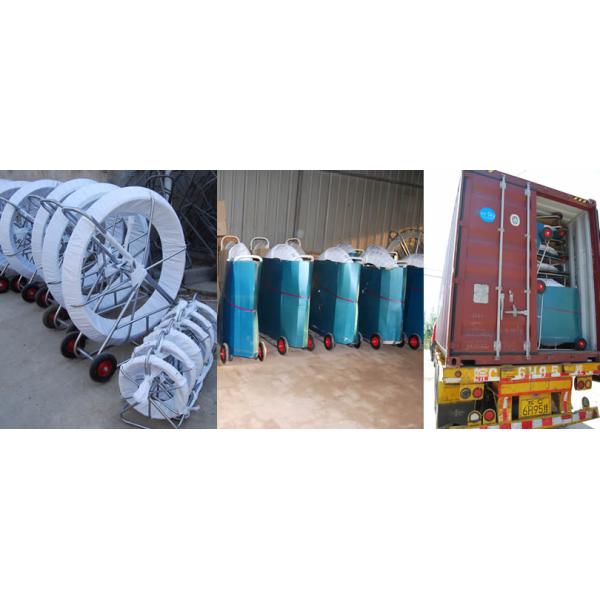

Packaging Details
Item Details
Package Steel frame with wheels
Protection Plastic wrapping
Customization Logo and color available
The common container transportation suitable package is plastic wrap and carton packing outside.
16mm Diameter 250m Length Flexible Fiberglass Duct Rodder for Cable Pulling and Conduit Installation

Delivery & Trade Terms
Item Details
Lead Time 7-15 working days
Trade Terms EXW / FOB / CIF / DDP
Payment T/T, L/C

Frequently Asked Questions
Q: Is 16mm suitable for long distance ducts?
A: Yes, 16mm diameter provides strong pushing force for long distance installation.
Q: Can it be used for fiber optic cable?
A: Yes, it is widely used for telecom fiber cable installation.
Q: Can you customize length and color?
A: Yes, both length and color can be customized.

Contact Us
Send your inquiry now to get best price and professional cable installation solution.
