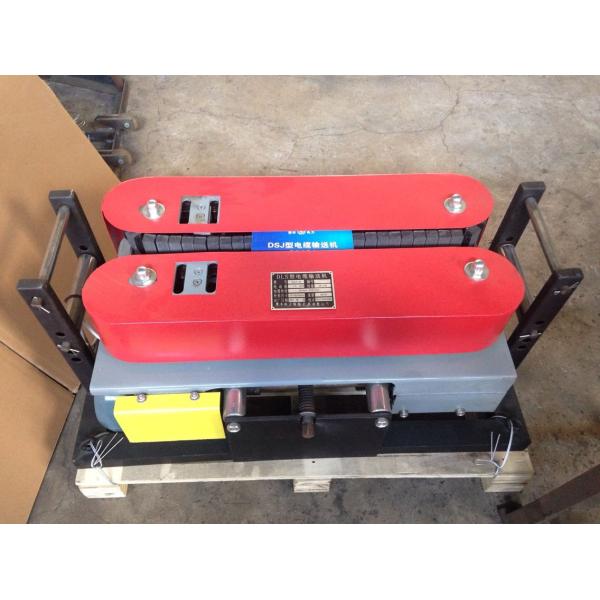

DSJ-180 Electric Cable Pulling Winch for Underground Power Cable Installation | Heavy-Duty Cable Conveyor Machine

Quick Detail

• 1. Pulling Force 900kg
• 2. Pulling Speed:6m/min
• 3. Electric engine 1.5KWx2
• 4. Weight:200kg

Application

220V 380V Eletric Cable Laying Machine/cable winch we manufactured, is the ideal machine of cable transmission used in power,

petroleum, chemical, industrial construction, power plant extension, substation and city network transmission cable.

It is suitable for cable trays in any form of channel, cable pipe, conveying a variety of power cable and control cable.

Advantages

• 1. Saving a lot of labor
• 2. Improving working conditions
• 3. Reducing labor intensity
• 4. Improving work efficiency
• 5. Ensuring safety

Component

• 1. Conveyor
• Conveyor is the main part of the equipment, which consists of the left and the right transmission parts, electric gearbox, adjusting mechanism, sprocket, bracket cover , etc.
• 2. Pulley
• Pulley is mainly used to support cable, in order to reduce the friction when transmitting cable, pulley mechanism can be easily fixed in cable bridge frame or on the ground, as it does not need to be fixed.
• 3. Guide pulley
• For guiding cable at turning, and ensuring that the bending radius in the allowed range.
• 4.Control panel
• The control panel is the main equipment of electrical control and it can control the ten conveyors forward, backward, stop action at the same time.
• 5. Cable bracket
• Cable bracket is jack type structure, landing on the rise and fall of a jack to lift or cable, which can bear 7-20 tons.

Features

Using this kind of this device changes the manual transmission cable. It can save a lot of labor, improve working conditions,

reduce labor intensity, improve work efficiency and ensure the safety.

Technical Data

FAQ

Q1: What type of cables can this puller handle?

It is suitable for power cables, communication cables, and fiber optic cables ranging from 30–150 mm (depending on model).

Q2: Can the pulling force be customized?

Yes. Pulling force, speed, and motor power can be customized to meet project requirements.

Q3: Is it suitable for long-distance cable installation?

Yes. The DSJ series provides stable pulling force for medium-to-long distance underground cable construction.

Q4: Does it require high maintenance?

No. The electric drive system is low-maintenance and operates with minimal noise.

Q5: Do you provide spare parts?

Yes. Spare rollers, ropes, motors, and electrical components are available for immediate supply.
