Steel Cable Bell Mouths To Guide Cable To Cable Duct For Cable Protection

Overview:

Steel Cable Bell Mouths are specialized components designed to guide cables into cable ducts while ensuring the protection of the cable during installation and long-term use. Made from durable steel, these bell mouths feature a wide bell shape at the entry point, which helps in smoothly guiding cables into ducts and preventing damage. They are essential in industries where cables are frequently pulled through ducts, including telecommunications, power distribution, and construction.

Definition:

A Steel Cable Bell Mouth is a metal device used to facilitate the entry of cables into a cable duct or conduit. It is shaped like a bell and is typically placed at the entrance of a duct to prevent the cable from snagging, scraping, or being damaged when being pulled through. The steel construction provides strength, durability, and resistance to external environmental factors, ensuring that cables remain safe during installation and throughout their operational life.

Features:

• Durable Steel Construction: Made from high-quality steel, these bell mouths offer exceptional strength and protection against physical wear and tear. Steel is corrosion-resistant, making it ideal for use in harsh outdoor environments.

• Bell Shape Design: The bell-shaped mouth allows cables to be easily fed into the duct without any sharp edges or rough surfaces that could damage the cable. This ensures smooth entry and reduces the risk of cable abrasion.

• Smooth, Rounded Edges: The edges of the bell mouth are designed to be smooth and rounded, which helps to prevent the cable from catching or fraying as it is pulled through the duct.

• Weather Resistant: Steel cable bell mouths are designed to withstand a variety of weather conditions, making them perfect for outdoor use in industries like telecommunications, power, and construction.

• Easy Installation: These bell mouths are simple to install at the entrance of a cable duct or conduit. They typically come with mounting features to secure them firmly in place and ensure they provide continuous protection.

• Multiple Sizes: Available in various sizes to accommodate different cable diameters, ensuring that all types of cables can be guided safely into ducts.

• Reinforced Design: The steel material ensures that the bell mouth can handle the weight and pressure of cables being pulled through ducts without deforming or breaking.

Advantages:

• Protection for Cables: The primary benefit of steel cable bell mouths is their ability to protect cables from damage during installation, such as abrasion or snagging. This helps extend the lifespan of cables and reduces the risk of cable failure.

• Increased Durability: Steel construction ensures that the bell mouths are long-lasting and capable of withstanding rough handling, weather exposure, and environmental stress, offering excellent protection for cables in both indoor and outdoor environments.

• Cost-Effective Solution: Steel bell mouths are an affordable solution to prevent cable damage and reduce costly cable repairs or replacements caused by improper installation.

• Ease of Installation: They can be quickly and easily installed at the entry point of a cable duct, making them a convenient choice for both new installations and retrofitting existing systems.

• Compatibility: Available in multiple sizes, steel cable bell mouths are compatible with a wide range of cable types, from small telecom cables to large power distribution cables.

• Corrosion Resistance: Steel bell mouths are resistant to rust and corrosion, even when exposed to outdoor environments, ensuring long-term use without the need for frequent replacements.

Applications:

• Telecommunications: Used in telecommunications systems to guide cables into ducts, preventing damage during cable installation and protecting the cables over their operational life.

• Power Distribution: In electrical power distribution systems, steel cable bell mouths protect high-voltage cables and ensure they are safely fed into ducts, preventing wear and tear.

• Construction: Commonly used in construction projects where cables need to be routed through ducts in buildings, ensuring cables are safely guided without risk of damage.

• Mining and Industrial Projects: Used in underground or heavy-duty applications to guide large industrial cables into ducts, ensuring safe installation in tough environments.

• Networking: Essential in network infrastructure, especially for fiber optic cables, guiding them into ducts and protecting them from physical damage during the installation process.

• Public Utilities: Used in public utility projects for the installation of utility cables, ensuring smooth installation of electrical, telecommunications, and other service cables.

FAQ:

Q1: Why is the bell shape important for cable protection?
A1: The bell shape allows cables to enter the duct without sharp edges or corners, preventing the cable from snagging or being damaged. The gradual taper also ensures a smoother and safer cable pull.

Q2: Can steel cable bell mouths be used for all types of cables?
A2: Yes, steel cable bell mouths come in various sizes, making them suitable for a wide range of cables, including telecommunications cables, power cables, fiber optic cables, and more. It's important to choose the correct size for your cable.

Q3: How do I install a steel cable bell mouth?
A3: Installation is simple and quick. The bell mouth typically has mounting features that allow it to be fixed securely at the entrance of the cable duct. Ensure the mouth is aligned properly with the duct entrance to guide the cable smoothly.

Q4: Are steel cable bell mouths resistant to outdoor conditions?
A4: Yes, steel cable bell mouths are designed to resist weather conditions, including rain, snow, and extreme temperatures. Their corrosion-resistant properties make them ideal for both indoor and outdoor use.

Q5: What size cable bell mouth should I use?
A5: The size of the cable bell mouth should be chosen based on the diameter of the cable you are installing. It is important to select a bell mouth that is slightly larger than the cable to ensure smooth feeding without any restriction.

Q6: Can I use a steel cable bell mouth for underground installations?
A6: Yes, steel cable bell mouths are perfect for underground cable installations. They help guide cables into ducts and prevent them from being damaged during installation or over time.

Q7: How do I maintain steel cable bell mouths?
A7: Steel cable bell mouths require minimal maintenance. Regularly inspect them for any signs of wear or damage, and ensure they remain securely mounted. If necessary, clean them to remove debris, dirt, or dust that could impede their function.

How to Choose the Right Steel Cable Bell Mouth:

When selecting a steel cable bell mouth, consider the following factors:

1. Cable Size: Ensure that the bell mouth is the appropriate size for your cables. It should be large enough to accommodate the cable without being too loose.

2. Material Quality: Choose a steel bell mouth with good corrosion resistance for outdoor or industrial use. Look for high-quality steel that can withstand harsh conditions.

3. Duct Compatibility: Ensure the bell mouth is compatible with the type of duct you are using. It should securely fit into the duct entrance and align with the cable’s path.

4. Environment: Consider the environment where the bell mouth will be used—outdoor, underground, or in an industrial setting—and select one that can handle the conditions, including moisture and temperature variations.

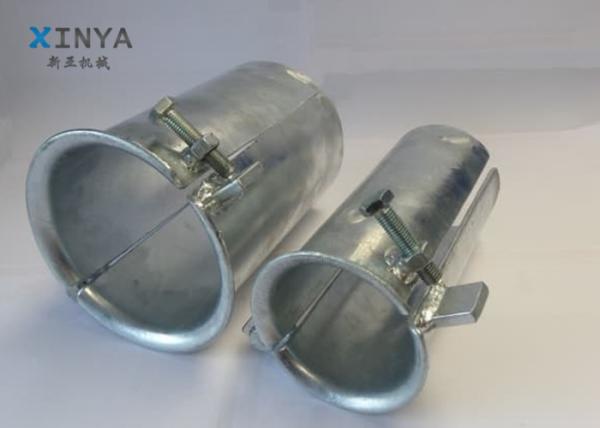

steel bellmouths are able to guide LV-HV cables through the cable duct to avoid damage to both the cable and the duct due to separable hinged halves.

• BM60 for Ducts 60-69mm
• BM80 for Ducts 76-89mm
• BM90 for Ducts 90-97mm
• BM100 for Ducts 99-106mm
• BM125 for Ducts 124-130mm
• BM150 for Ducts 148-155mm
• BM160 for Ducts 152-176mm
• BM175 for Ducts 170-180mm
• BM200 for Ducts 194-212mm
• BM230 for Ducts 220-239mm
• BM250 for Ducts 246-266mm
