CYO-430 Hydraulic Crimping Tool 50-400mm2 Cable Connector Hydraulic Crimping Tool

Product manual

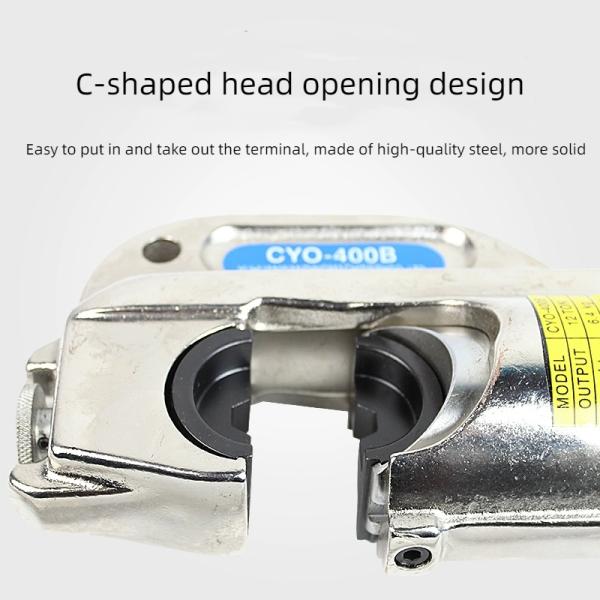

1. Hydraulic clamp with hexagonal die, crimp tightly conductive good, easy to fall off and heat.
2. Glass fiber operation insulation rod, can withstand voltage 20KV, for 5 minutes.
The crimp head can be rotated 180 degrees.
3. Can be equipped with electric pump manual pump

Product feature

1.Can be used with manual hydraulic pumps to crimp Copper and aluminum noses without electricity.

2.It can also be matched with electric hydraulic pump to improve crimping efficienty.

3.Specially selected high-carbon steel material integrated with CNC computer processing,strong tensile resistance,high crimping accuracy.

4.10kv-500kv high voltage cable bushings,clamps and bare terminals are crimped in hexagonal shape,tightly and not falling off.

Product information

Applicable process

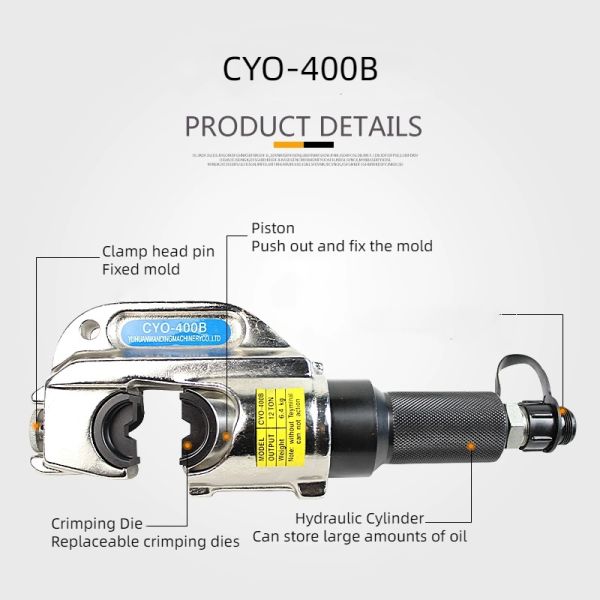

1.Replace the upper mold

Hold the round spring bayonet at the top with your hand,the mold can be easily taken out after pulling it out,and then the required abrasive tools can be replaced in the same way.

2.Replace the lower abrasive

The lower modl has a round Tanguang card position steel ball,which is used to push directly to the side of the mold,and the lower mold can be directly pushed out for replacement.

3.No air pressure

After removing the upper and lower molds,it is stricly forbidden to compress the piston at this time.if there is no mold state,it is easy to cause the pistion bayonet to break

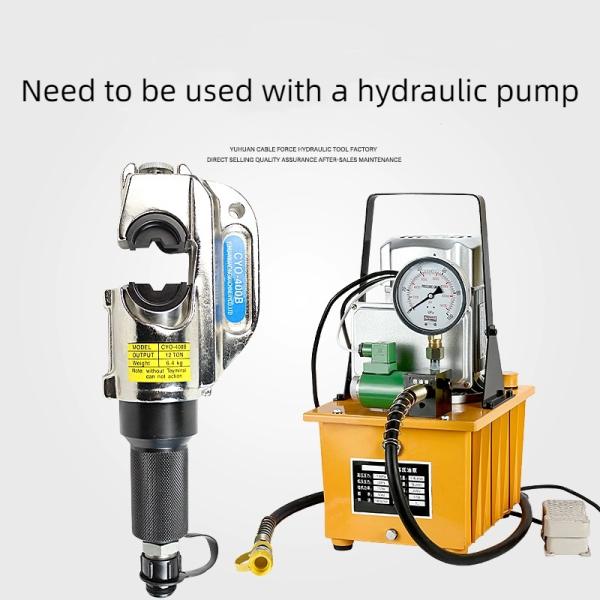

4.Connect the oil pump

The product is a split-type hydraulic tongs,which cannot work alone.it needs to be used with an oil pump.it can be equipped with manual pumps,foot pumps and electric pumps with multiple speficiations.please consult customer service for details.
