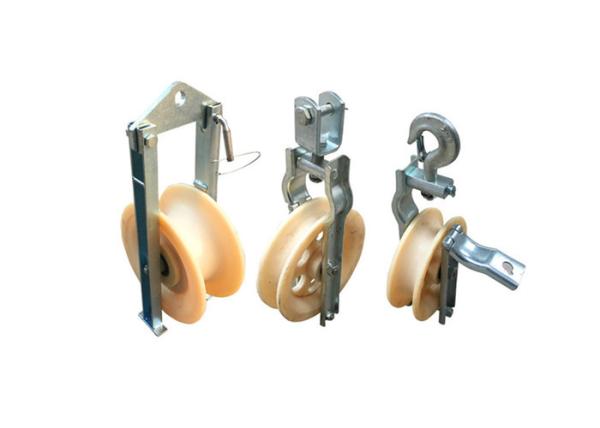

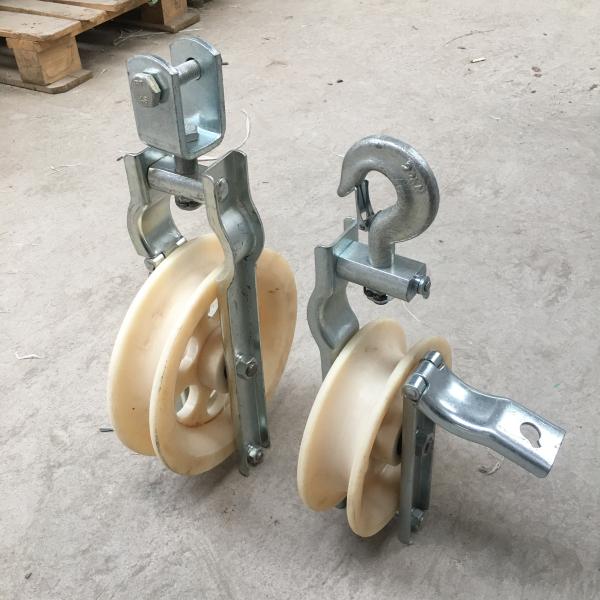

Transmission Line Single Sheave Cable Stringing Pulley
Transmission Line Single Sheave Cable Stringing Pulley
Transmission Line Single Sheave Cable Stringing Pulley
Transmission Line Single Sheave Cable Stringing Pulley
Specifications
Brand Name :
SHENGHONG
Model Number :
-
Certification :
ISO
Place of Origin :
MADE IN CHINA
MOQ :
1pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
10-15 days after payment
Packaging Details :
Carton
Type :
Stringing Pulley Block
Wheel Material :
nylon
Application :
cable stringing
Fittings :
Hook fitting, round eye fitting, and clevis fitting are optional
Surface treatment :
galvanization
Warranty :
1 year
Description

Single Sheave Cable Stringing Pulley Block Nylon Wheel For Transmission Line

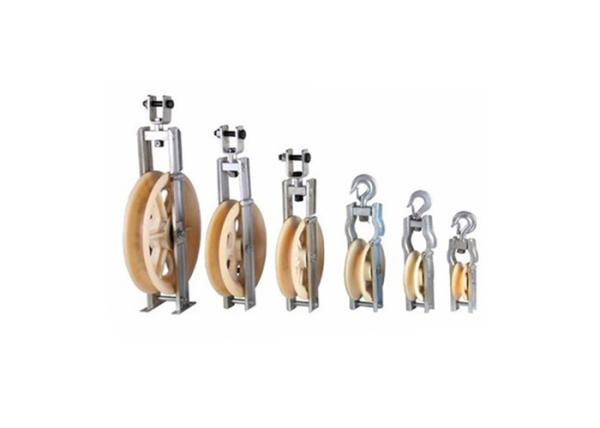

Single sheave stringing block

Order number Model Suitable conductor Rated load (kg) Weight (kg) Remark
10171 SHD-120×30 LGJ25～70 5 1.5 Aluminous sheave
10172 SHD-160×40 LGJ95～120 10 2.5
10173 SHD-200×40 LGJ150～240 15 4
10174 SHD-200×60 LGJ150～240 15 4.6
10175 SHD-250×40 LGJ150～240 20 4.6
10176 SHD-250×60 LGJ300～400 20 6
10177 SHD-270×60 LGJ300～400 20 7
10178 SHD-320×60 LGJ300～400 20 9.5
10179 SHD-400×80 LGJ400～500 20 15
10191 SHDN-120×30 LGJ25～70 5 1.5 Nylon sheave
10192 SHDN-160×40 LGJ95～120 10 2.5
10193 SHDN-200×40 LGJ150～240 15 3.6
10194 SHDN-200×60 LGJ150～240 15 4
10195 SHDN-250×40 LGJ150～240 20 4
10196 SHDN-250×60 LGJ300～400 20 4.5
10197 SHDN-270×60 LGJ300～400 20 5.6
10198 SHDN-320×60 LGJ300～400 20 6.7
10199 SHDN-400×80 LGJ400～500 20 13

note:

1.The product is classified as hook style , clevis ,etc .it must be explained clearly in writing when ordering ,exceptional specification can be customized .

2.The meaning of model is outside diameter of sheave ×width of sheave(mm)

Transmission Line Single Sheave Cable Stringing Pulley
