Dia 13mm 200m Length FRP Fiberglass Cable Rodder, Electric Cable Duct Rod
Dia 13mm 200m Length FRP Fiberglass Cable Rodder, Electric Cable Duct Rod
Dia 13mm 200m Length FRP Fiberglass Cable Rodder, Electric Cable Duct Rod
Dia 13mm 200m Length FRP Fiberglass Cable Rodder, Electric Cable Duct Rod
Specifications
Brand Name :
shenhong
Certification :
BV,CE,ISO
Place of Origin :
Jiangsu,China
MOQ :
10 pieces
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 piece/pieces per month
Delivery Time :
ten days after deposit
Packaging Details :
plastic
Application :
construction
Used :
pulling
Color :
Customized
Rod diameter :
13mm
Rod length :
200m
Wheel diameter :
300m
Density :
55g/m
Technology :
pultrusion
Description

Dia 13mm 200m length FRP Fiberglass Cable Rodder, Electric Cable Duct Rod

Application

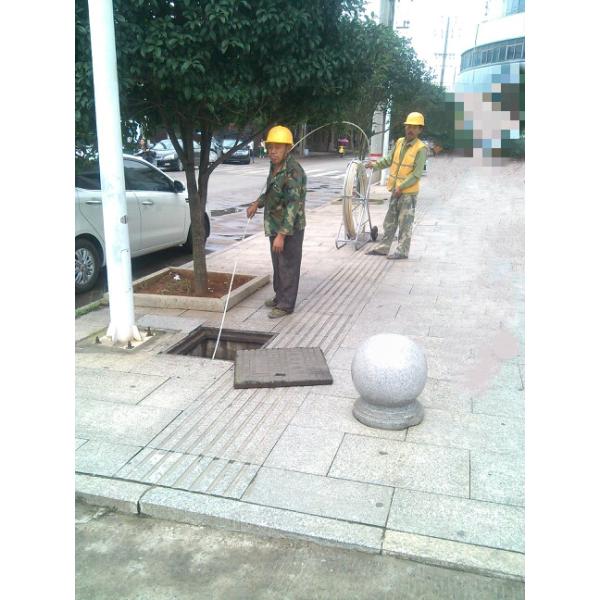

It is used to install pulling ropes and winch ropes into ducts, ready for cable pulling operations

Features

It is lightweight and flexible

Specification

1. Rod diameter: 13mm

2. Rod length: 200m

3. Wheel diameter: 300m

4. Wall thickness of metal frame: 2.2mm

5. Color: blue,yellow,red white,ect.

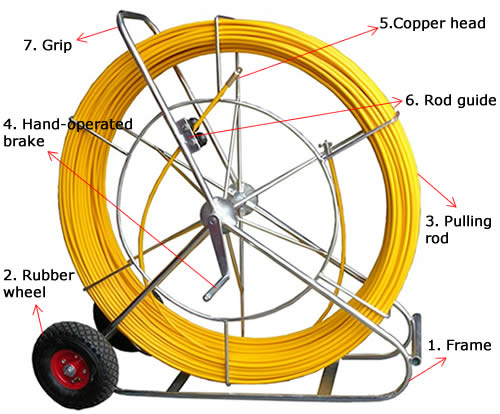

Material

1. Rod inner: Extruded by fiberglass and high strength resin at high temperature

2. Rod outer: High density polyethylene coating

3. Iron frame: Steel with high-tempurature sprayed plastic or spray coating

4. Wheel: rubber

5. Brake: yes

6. Drawing head: ropper

Physical characters

1. Density: 55g/m

2. Working temperature: -40C to +80C

3. Breaking tension: 100kg

4. Breaking radius: 295mm

5. Technology: Pultrusion

Dia 13mm 200m Length FRP Fiberglass Cable Rodder, Electric Cable Duct RodDia 13mm 200m Length FRP Fiberglass Cable Rodder, Electric Cable Duct Rod

Packaging

1. Inside: Plastic woven strip wind around the frame

2. Outside: Wooden pallet and wooden box

Shipment

1. The machine will be shipped in container

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.

Payment

1. We accept T/T and L/C.

2. Please send swift copy of T/T if you arrange payment by T/T

3. Please send us the L/C draft to us before issue L/C.
