High Performance Cable Puller Tensioner Stringing Of Diversified Conductors And Ground Wires
High Performance Cable Puller Tensioner Stringing Of Diversified Conductors And Ground Wires
High Performance Cable Puller Tensioner Stringing Of Diversified Conductors And Ground Wires
High Performance Cable Puller Tensioner Stringing Of Diversified Conductors And Ground Wires
Specifications
Brand Name :
SHENHONG
Model Number :
SA-YZ2×90
Certification :
ISO
Place of Origin :
MADE IN CHINA
MOQ :
1set
Price :
get latest price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5 sets per month
Delivery Time :
30 days after deposit
Packaging Details :
20" container
Type :
Hydraulic Tensioner
Maximum Tension (kN) :
2×90 or 1×180
Continuous Tension (kN) :
2×80 or 1×160
Maximum Speed (km/h) :
5
Bullwheel Bottom of Groove Diameter (mm) :
1850
Number of Grooves :
2× 6
Maximum Pullback (kN) :
2×90 or 1×180
Maximum Diameter of Suitable Conductor (mm) :
48.8
Description

High Performance Cable Puller Tensioner Stringing Of Diversified Conductors And Ground Wires

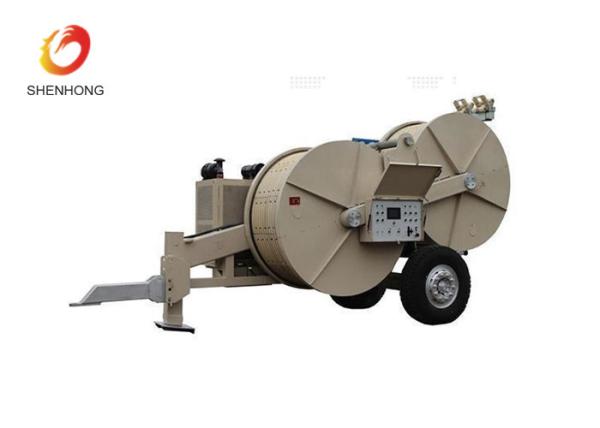

Our SA-YZ2×90 Hydraulic Tensioner is applicable for the tension stringing of diversified conductors and ground wires. It can achieve the constant-tension conductor stringing, due to the infinitely variable tension control. The bullwheel of this product is lined with abrasion resistant MC nylon material.

Furthermore, this SA-YZ2×90 Hydraulic Tensioner has two powerful configurations. Two sets of hydraulic power output interface are capable of connecting the hydraulic conductor reel stand. The spring applied hydraulically released multi-plate brake will act automatically in case of hydraulic failure. Therefore, the safety can be well ensured.

Essential Parameters

SA-YZ2×90 Hydraulic Tensioner
Item number :07201
Essential parameter
Maximum Tension(kN):2×90 or 1×180 ,
Continuous Tension(kN):2×80 or 1×160,
Maximum speed (km/h):5
Bull wheel bottom of groove diameter(mm):Φ1850
Number of grooves:2×6
Maximum pull-back (kN):2×90 or 1×180
Maximum pull-back speed(km/h):2×1.7
Maximum suitable conductor diameter (mm): Φ48.8
Engine power /speed (kW/rpm):82.5/2500
Dimensions (mm): 5300×2290×2950
Weight(kg):10500

Main Components

Engine Deutz air-cooled diesel engine
Main Pump/Motor Rexroth (BOSCH)
Main Hydraulic Valve Rexroth (BOSCH)
Reducer RR (Italian)
Radiator AKG
Hydraulic Instrument

High Performance Cable Puller Tensioner Stringing Of Diversified Conductors And Ground Wires
