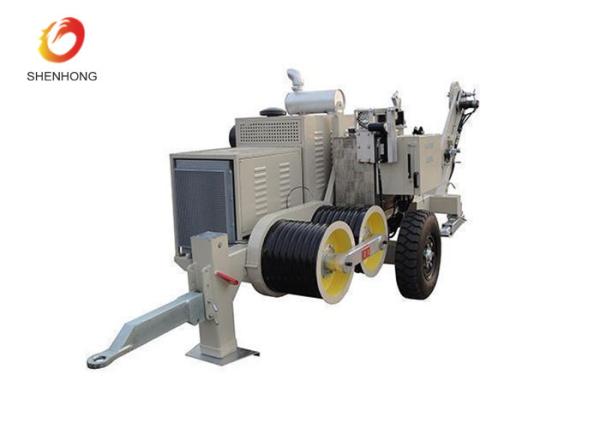

Model SA - YQ90 90KN Hydraulic Puller Tensioner For Overhead Line Construction
Model SA - YQ90 90KN Hydraulic Puller Tensioner For Overhead Line Construction
Model SA - YQ90 90KN Hydraulic Puller Tensioner For Overhead Line Construction
Model SA - YQ90 90KN Hydraulic Puller Tensioner For Overhead Line Construction
Specifications
Brand Name :
Brand
Model Number :
SA-YQ90
Certification :
ISO
Place of Origin :
Jiangsu,China
MOQ :
1 set
Price :
US $35000~60000
Supply Ability :
200 Set/Sets per Month
Delivery Time :
40 work days after deposit
Packaging Details :
Export case
Max linepull :
90KN
Continous line :
80KN
Max linespeed :
5km/h
Weight :
4300kg
Maximum Diameter of Suitable Steel Rope (mm) :
21
Maximum Through Connector Diameter (mm) :
60
Description

Model SA - YQ90 90KN Hydraulic Puller Tensioner For Overhead Line Construction

Our SA-YQ90 Hydraulic Puller possesses the steplessly adjustable traction force and pulling speed, and the pull in the rope can be visually displayed on the line pull gauge. This equipment also comes with an overload automatic protection system. The maximum traction force can be preset. A reliable overhead protection mechanism makes this machine easy to be used.

Moreover, the spring applied hydraulically released brake can act automatically. Thus, the secure operation of our SA-YQ90 Hydraulic Puller can be well ensured, when the motor suddenly turns off or other reasons cause the hydraulic failure.

Thanks to the hydraulic type rope clamping device, it is easy to replace the steel wire rope reel. Additionally, our machine is equipped with the steel wire rope automatically winding device, which can automatically arrange the rope and also make loading and unloading convenient.

Detailed Parameters

Model SA-YQ90 Hydraulic Puller
Maximum Traction Force (kN) 90
Continuous Tractive Effort (kN) 80
Maximum Pulling Speed (km/h) 5
Bullwheel Bottom of Groove Diameter (mm) Φ520
Number of Bullwheel Grooves 7
Maximum Diameter of Suitable Steel Rope (mm) Φ21
Maximum Through Connector Diameter (mm) Φ60
Engine Power / Speed (kW/rpm) 121/2500
Dimensions (mm) 3500× 2100× 2500
Weight (kg) 4300

Main Components

Engine Cummins (USA) water-cooled diesel engine
Main Variable Displacement Pump, Main Motor Rexroth (BOSCH)
Reducer Rexroth (BOSCH)
Main Hydraulic Valves Rexroth (BOSCH)
Radiator AKG
Hydraulic Instrument
Suitable Drum Model GSP1400 (order number: 07125C)
Option Cummins DONGFENG water-cooled diesel motor
(Model: YA-YQ90D, Item number: 07042)
