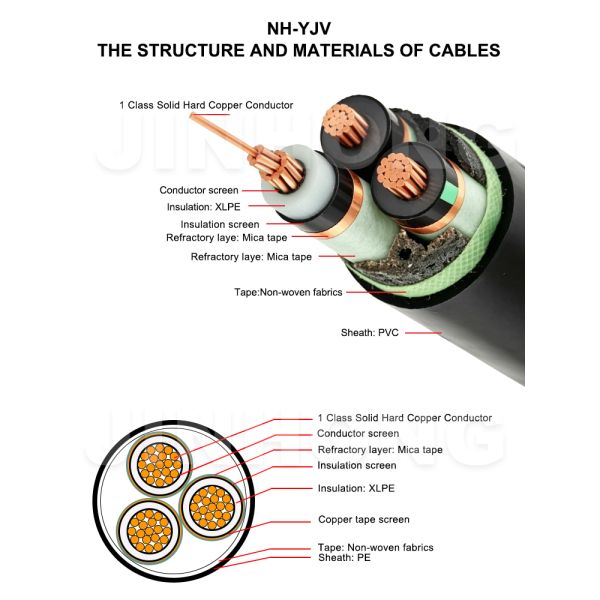

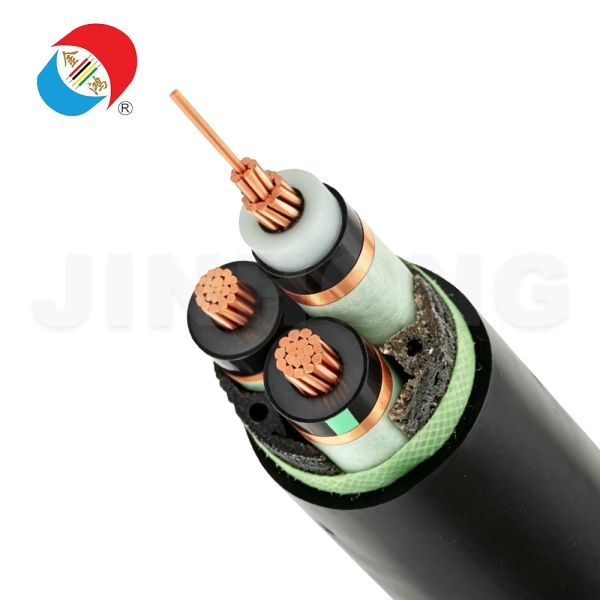

The NH-YJV (8.7/15kV) is a fire-resistant medium-voltage (MV) power cable designed for mission-critical circuits with extremely high circuit integrity requirements. It features high-purity copper conductors, XLPE insulation (rated temperature 90°C), a mica tape fire-retardant layer, and a PVC/LSZH sheath. It provides stable power at 8.7/15kV (U₀/U, 50Hz) and complies with IEC 60331 / GB/T 19216.21 standards, and can operate energized for over 90 minutes at temperatures of 750–800°C. This product is designed and tested to comply with IEC 60228, IEC 60502-2, CE, RoHS, and ISO standards, meeting the primary needs of engineers and purchasing professionals worldwide: fire safety, electrical reliability, thermal stability, mechanical durability, and regulatory compliance.

Material: Bare copper, Class 2 (IEC 60228), round, stranded, compacted.

Performance: High conductivity (≤0.022 Ω·mm²/m at 20°C), low resistance, optimal current carrying capacity, and excellent short-circuit withstand capability (≤5 seconds at 250°C).

Value: Reduces I²R losses, improves energy efficiency, and ensures thermal stability under peak loads.

Layer: Conductor shielding layer wrapped with high-temperature mica tape.

Performance: Withstands fire for 90 minutes at 750–800°C (compliant with IEC 60331 standard), ensuring electrical continuity of emergency systems.

Value: Meets life safety standards for high-rise buildings, tunnels, subways, and data centers; reduces power outages caused by fire.

Material: Cross-linked polyethylene (XLPE), extruded in a single process, forming a three-layer structure (conductor shielding layer/XLPE/insulation layer).

Performance: Continuous operation at 90°C, short-circuit rated temperature of 250°C, low dielectric loss (tan δ < 0.001)**, high insulation resistance (>500 MΩ·km at 20°C), and excellent partial discharge (PD) resistance.

Value: Long service life (over 10 years), stable performance under high humidity/chemical exposure, and low maintenance costs.

• High-rise Buildings: Fire pumps, emergency lighting, elevators, and life safety circuits.
• Subways/Tunnels/Railways: Critical power and control systems for underground infrastructure.
• Data Centers/Hospitals: UPS, backup generators, and mission-critical equipment.
• Industrial Plants: Petrochemical, pharmaceutical, and manufacturing industries with fire hazards.
• Power Companies: Substation interconnects, distribution feeders, and fire-resistant underground pipelines.

• Superior Fire Resistance: Maintains circuit integrity for 90 minutes even in severe fires, effectively protecting lives and property.
• Excellent Electrical Performance: XLPE insulation ensures low loss, high efficiency, and stable operation in harsh environments.
• Thermal Stability and Mechanical Strength: A rated temperature of 90°C gives it a higher current carrying capacity than PVC-insulated cables; armor options withstand installation/operational stresses.
• Global Compliance and Certifications: Compliant with IEC, CE, RoHS, and ISO standards, simplifying approval processes for cross-border projects.
• Long-Term Reliability: Designed for over 30 years with minimal performance degradation, effectively reducing Total Cost of Ownership (TCO).
• Customization Services: Core count, conductor size, armor, and sheath (PVC/LSZH) can be customized to specific project requirements.

• Factory Direct Supply: Vertically integrated production ensures rigorous quality control, highly competitive pricing, and reliable delivery times.
• Engineering Support: We provide free technical consultation, cable selection, and installation guidance; our team is familiar with global medium-voltage cable standards and project challenges.
• Rigorous Testing: Every batch of products undergoes partial discharge, high voltage, fire resistance, and mechanical testing according to IEC standards; third-party certification reports are available.
• Global Logistics: Export packaging (steel drums/pallets) and global shipping; FOB/CIF/DDP terms supported.
• Sustainability: We use RoHS-compliant materials, low-energy production processes, and recyclable components; compliant with ESG goals.

NH-YJV 8.7/15kV is the gold standard for fire-resistant medium-voltage power cables, trusted by engineers, contractors, and power companies worldwide, and widely used in critical infrastructure. It offers superior safety, performance, and compliance, reducing risk, extending service life, and optimizing the total cost of ownership for projects.
