600V Electrical Cable Wire BVVB BV Copper Core PVC Insulation Solid Flat Cable
600V Electrical Cable Wire BVVB BV Copper Core PVC Insulation Solid Flat Cable
600V Electrical Cable Wire BVVB BV Copper Core PVC Insulation Solid Flat Cable
600V Electrical Cable Wire BVVB BV Copper Core PVC Insulation Solid Flat Cable
600V Electrical Cable Wire BVVB BV Copper Core PVC Insulation Solid Flat Cable
600V Electrical Cable Wire BVVB BV Copper Core PVC Insulation Solid Flat Cable
600V Electrical Cable Wire BVVB BV Copper Core PVC Insulation Solid Flat Cable
600V Electrical Cable Wire BVVB BV Copper Core PVC Insulation Solid Flat Cable
Specifications
Brand Name :
JinHong
Model Number :
BVVB
Certification :
CCC
Place of Origin :
Anhui China
MOQ :
100m
Price :
0.12-0.17USD
Payment Terms :
T/T
Delivery Time :
5-8
Conductor type :
Stranded,Solid,Solid/Flexible
Conductor material :
Copper,etc.,Fiberglass with nichrome wire,solid or stranded tinned copper,Copper | Tinned Copper
Application :
Heating,Electric conduction,Lights and Lamps,Electric appliance,AWM Appliance Wiring Material
Type :
Insulated,Bare
Insulation material :
Rubber,PVC,Silicone,fiber glass,XLPE
Color :
Requirement,Yellow,can be customized,red black,White/Blue/Red/Black/Brown/Yellow/Green/Transparent
Rated voltage :
600V,300/500V,300/500V 450/750V
Product name :
Copper Core PVC Insulation Wire,DIY silicone wire,anchor silicone copper electric wire 220v 3 wire flat cable,silicone rubber electrical wire cable for neon lighting,XLPE Irradiation wire
Conductor :
Copper Core,Tinned copper,fiberglass nichrome conductor wire,Stranded Copper,Silver & Tinned & Nickel Copper
Insulation :
Silicone Rubber,Silicone insulation,PVC Insulation Cable,PVC,XLPE
Size :
Optional,18awg/22awg,30AWG - 4/0AWG,24awg~12awg,2-30
Rated temperature :
200,-60C-+200C,+200℃,-60~ 200,-60'C ~ + 180'C
Packing :
305meters per roll,100m/roll,100 pieces / bag,305/610m per roll,optional
Material :
Silicone rubber,silicone wire,High Purity Copper,Tinned copper
Standard :
UL758,IEC 60227,GB IEC JIS NEMA,IEC60502
Temperature :
150 degree,-60℃ to 200℃,200degree,-60C~+150C
Length :
optional,100mm,Customized Length,610m
Usage :
heating element,Indoor,Heating Product
Test voltage :
3000V
Description
BVVB Flat Sheathed PVC Insulated Copper Cable
BVVB Cable is a Flat Sheathed PVC Insulated and Sheathed Copper Wire designed for fixed electrical installations where space-saving and compact routing are required.
Cable Designation Breakdown
  • B: Insulated Wiring (Chinese standard designation)
  • V: PVC Insulation
  • V: PVC Sheath
  • B: Flat Type
Applications
  • Building Wiring: Fixed electrical circuits in residential and commercial buildings, especially for surface mounting
  • Lighting Systems: Wiring for lighting fixtures and decorative lighting
  • Power Distribution: Connections for appliances, outlets, and switches
  • Temporary Installations: Exhibition wiring and temporary power supply (with additional protection)
Key Advantages
  • Space-Saving Design: Flat structure allows for compact routing and easy surface mounting
  • Easy to Install: Pre-assembled parallel conductors simplify installation
  • Cost-Effective: Affordable solution for fixed electrical installations
  • Aesthetic Appeal: Neat and tidy appearance for exposed wiring applications

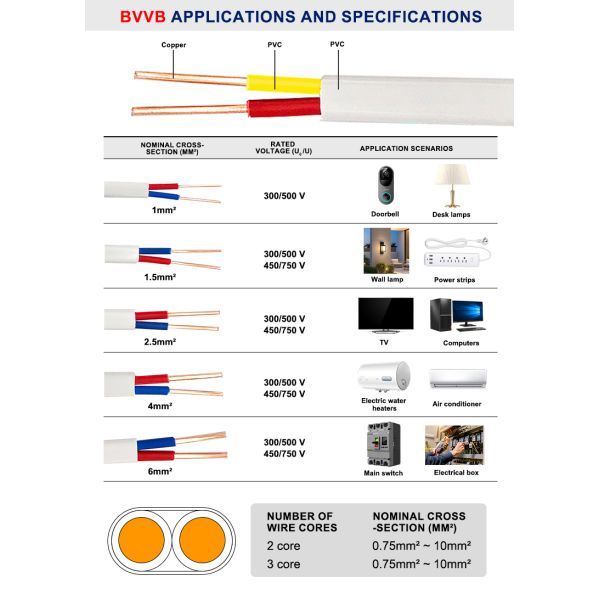

Selection Guidelines
For Lighting Circuits:
  • General Lighting: 2*1.5 mm², 300/500V
  • Decorative Lighting: 2*0.75 mm², 300/300V
  • Commercial Lighting: 2*2.5 mm², 300/500V
For Power Outlets:
  • General Sockets: 2*2.5 mm², 300/500V
  • Kitchen Appliances: 3*2.5 mm², 450/750V
  • Air Conditioners: 3*4 mm², 450/750V
For Special Applications:
  • Control Circuits: 2*1.5 mm², 300/300V
  • Equipment Power: 3*6 mm², 450/750V
  • Industrial Use: 3*10 mm², 450/750V
Technical Specifications
Nominal Section (mm²) Number/Diameter of Core (mm) Maximum Outer Diameter (mm) Reference Weight (kg/km) Conductor Resistance at 20℃ (Ω/km)
2x0.75 2*1/0.97 4.8*7.0 43.7 -
2x1.0 2*1/1.13 4.8*7.4 51.0 -
2x1.5 2*1/1.38 5.4*8.4 65.9 -
2x2.5 2*1/1.78 6.2*9.8 95.7 7.41
2x4 2*7/0.85 7.2*11.5 146.0 4.61
2x6 2*7/1.04 8.0*13.0 200.0 3.08
2x10 2*7/1.35 9.6*16.0 323.0 1.83
3x0.75 3*1/0.97 4.6*9.4 62.6 24.50
3x1.0 3*1/1.13 4.8*9.8 74.3 18.10
3x1.5 3*1/1.38 5.4*11.5 95.6 12.10
3x2.5 3*1/1.78 6.2*13.5 140 7.41
3x4 3*7/0.85 7.4*16.5 220 7.41
3x6 3*7/1.04 8.0*18.0 295 4.61
3x10 3*7/1.35 9.6*22.5 485 1.83
600V Electrical Cable Wire BVVB BV Copper Core PVC Insulation Solid Flat Cable 600V Electrical Cable Wire BVVB BV Copper Core PVC Insulation Solid Flat Cable 600V Electrical Cable Wire BVVB BV Copper Core PVC Insulation Solid Flat Cable
Frequently Asked Questions
1. What does BVVB stand for?
  • B: Fixed wiring cable (Chinese standard classification)
  • V: PVC insulation
  • V: PVC sheath
  • B: Flat type design
BVVB is a flat-type PVC insulated and sheathed copper cable designed for fixed electrical installations where space-saving and surface mounting are required.
2. What are the standard voltage ratings for BVVB cable?
  • 300/300V: For low-voltage lighting and signal circuits
  • 300/500V: Most common for residential and commercial applications
  • 450/750V: For higher power applications and industrial use
  • Special Versions: 250/440V for specific markets, 600/1000V for industrial applications
3. Where is BVVB cable typically used?
  • Residential buildings: Surface-mounted wiring for sockets and lighting
  • Commercial spaces: Office power distribution, retail store installations
  • Renovation projects: Retrofitting existing buildings without concealed conduits
  • Temporary installations: Exhibition booths, stage wiring, construction sites
  • Furniture manufacturing: Built-in electrical systems for cabinets and displays
4. What is the temperature rating of BVVB cable?
  • Normal operating temperature: -15°C to +70°C
  • Maximum conductor temperature: 70°C continuous operation
  • Short-circuit withstand: 160°C for maximum 5 seconds
  • Installation temperature: Minimum 0°C to prevent sheath damage
5. What safety standards does BVVB comply with?
  • International: IEC 60227
  • Chinese National: GB/T 5023
  • Certifications: CCC (China Compulsory Certification), CE marking
  • Fire Performance: Standard version has basic flame retardancy (for enhanced safety, choose ZR-BVVB)
6. Can BVVB be used outdoors or in wet locations?
  • Not recommended for direct outdoor exposure
  • Suitable for indoor dry locations only
  • Requires additional protection (conduits, trunking) in damp areas
  • Not designed for direct burial or prolonged moisture exposure
7. What are the available conductor configurations?
  • 2-core: For basic lighting and socket circuits
  • 3-core: For grounded applications and three-phase systems
  • Conductor Sizes: 0.75 mm² to 10 mm² per core
  • Common Combinations: 2*1.5 mm², 2*2.5 mm², 3*1.5 mm², 3*2.5 mm²
8. What is the current carrying capacity of BVVB?
Examples for 300/500V BVVB:
  • 2*1.5 mm²: 16-20A (depending on installation method)
  • 2*2.5 mm²: 20-27A
  • 3*1.5 mm²: 14-18A
  • 3*2.5 mm²: 18-25A
Note: Actual capacity varies with installation conditions and local regulations
9. What are the main advantages of BVVB cable?
  • Space Efficiency: Flat design saves space in shallow installations
  • Easy Installation: Pre-arranged conductors simplify wiring
  • Aesthetic Appeal: Neat appearance for surface-mounted applications
  • Cost-Effective: Economical solution for basic power and lighting circuits
  • Time Saving: Faster installation compared to separate round cables
10. How should BVVB be installed and supported?
  • Fixing Methods: Use flat cable clips or adhesive channels
  • Support Spacing: Every 30-50 cm for horizontal runs
  • Bending Radius: Minimum 6* cable width
  • Protection: Additional conduits in high-traffic areas
  • Separation: Maintain distance from heat sources and sharp edges
600V Electrical Cable Wire BVVB BV Copper Core PVC Insulation Solid Flat Cable

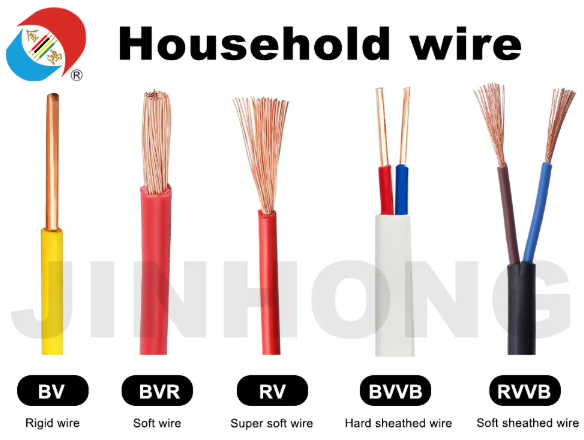

Cable Type Comparison
  • BV: Rigid wire, a single-core copper wire
  • BVR: Flexible wire, a single-core wire made of multiple copper strands twisted together
  • RV: Also a flexible wire, generally not used for home decoration
  • BVVB: Rigid sheathed wire, two or more BV wires sheathed together
  • RVVB: Flexible sheathed wire, two, three, or four RV wires sheathed together
    Service of JinHong Company
    Over Productions Service:
    JinHong has a wide range of cable and conductor products for you to choose from. We will provide caring services and professional project solutions for everyone who needs them.
    Quality Certification Services:
    JinHong cable products are manufactured according to GB, IEC, BS, NFC, ASTM, DIN, and other international standards. Our technical team can customize cable products that meet your requirements according to your needs.
    Profession Customer Service:
    JinHong provides free professional consulting services to provide you with one-stop project solution services and rapid product delivery solutions.
    Delivery And Shipping Services:
    While we at JinHong provide high-quality cables, we also provide good delivery solutions. While ensuring the safe delivery of products, we provide the best packaging and transportation solutions, greatly reducing customers’ transportation costs.
    Packaging of JinHong:
    JinHong cable packaging is provided in the form of wooden reels, corrugated boxes, and coils. The cable ends are sealed with BOPP self-adhesive tape and a non-hygroscopic sealing cap to protect the cable ends from moisture. We can print the required marks on the outside of the barrel with waterproof material according to customer requirements.
