300/500V RVVB Flexible Flat Cable PVC Sheath Cable Home Audio Lighting Power Control
300/500V RVVB Flexible Flat Cable PVC Sheath Cable Home Audio Lighting Power Control
300/500V RVVB Flexible Flat Cable PVC Sheath Cable Home Audio Lighting Power Control
300/500V RVVB Flexible Flat Cable PVC Sheath Cable Home Audio Lighting Power Control
300/500V RVVB Flexible Flat Cable PVC Sheath Cable Home Audio Lighting Power Control
300/500V RVVB Flexible Flat Cable PVC Sheath Cable Home Audio Lighting Power Control
300/500V RVVB Flexible Flat Cable PVC Sheath Cable Home Audio Lighting Power Control
300/500V RVVB Flexible Flat Cable PVC Sheath Cable Home Audio Lighting Power Control
Specifications
Brand Name :
JinHong
Model Number :
RVVB
Certification :
CCC
Place of Origin :
Anhui China
MOQ :
100m
Price :
0.35-1USD
Payment Terms :
T/T
Delivery Time :
5-8
Conductor type :
Stranded,Solid,Solid/Flexible
Conductor material :
Copper,etc.,Fiberglass with nichrome wire,solid or stranded tinned copper,Copper | Tinned Copper
Application :
Heating,Electric conduction,Lights and Lamps,Electric appliance,AWM Appliance Wiring Material
Type :
Insulated,Bare
Insulation material :
Rubber,PVC,Silicone,fiber glass,XLPE
Color :
Requirement,Yellow,can be customized,red black,White/Blue/Red/Black/Brown/Yellow/Green/Transparent
Rated voltage :
600V,300/500V,300/500V 450/750V
Product name :
Copper Core PVC Insulation Wire,DIY silicone wire,anchor silicone copper electric wire 220v 3 wire flat cable,silicone rubber electrical wire cable for neon lighting,XLPE Irradiation wire
Conductor :
Copper Core,Tinned copper,fiberglass nichrome conductor wire,Stranded Copper,Silver & Tinned & Nickel Copper
Insulation :
Silicone Rubber,Silicone insulation,PVC Insulation Cable,PVC,XLPE
Size :
Optional,18awg/22awg,30AWG - 4/0AWG,24awg~12awg,2-30
Rated temperature :
200,-60C-+200C,+200℃,-60~ 200,-60'C ~ + 180'C
Packing :
305meters per roll,100m/roll,100 pieces / bag,305/610m per roll,optional
Material :
Silicone rubber,silicone wire,High Purity Copper,Tinned copper
Standard :
UL758,IEC 60227,GB IEC JIS NEMA,IEC60502
Temperature :
150 degree,-60℃ to 200℃,200degree,-60C~+150C
Length :
optional,100mm,Customized Length,610m
Usage :
heating element,Indoor,Heating Product
Test voltage :
3000V
Description
RVVB Flexible Flat Cable Copper Core PVC Sheathed Wire
RVVB Cable is a Flat Sheathed PVC Insulated and Sheathed Flexible Copper Cable, designed for low-voltage electrical connections requiring flexibility, compact routing, and ease of installation.
Cable Designation Breakdown
  • R: Flexible Stranded Copper Conductor
  • V: PVC Insulation
  • V: PVC Sheath
  • B: Flat Type Design
Applications
  • Household Appliances: Power cords for vacuum cleaners, refrigerators, and washing machines
  • Low-Voltage Systems: Wiring for lighting fixtures, doorbells, and security systems
  • Control Circuits: Connections for sensors, switches, and automation devices
  • Temporary Installations: Exhibition wiring and portable equipment
Key Advantages
  • Space-Saving Design: Flat structure allows for compact routing and easy surface mounting
  • Flexibility: Ideal for applications requiring frequent movement or bending
  • Cost-Effective: Affordable solution for low-voltage flexible connections
  • Ease of Installation: Lightweight and easy to handle
RVVB cable is suitable for low-voltage applications where flexibility and compact design are important. For enhanced fire safety, consider NH-RVVB (fire-resistant), or for outdoor use, RVVB with additional protection. Customizable conductor sizes (e.g., 2*0.5mm² to 2*2.5 mm²) are available.

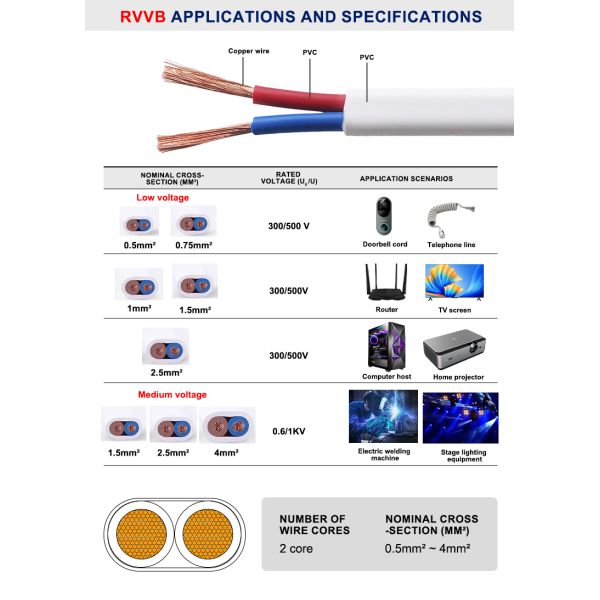

Technical Specifications
Nominal Section (mm²) Number/Diameter of Core (mm) Maximum Outer Diameter (mm) Reference Weight (kg/km)
2*0.5 2*16/0.2 3.8*6.0 27.7
2*0.75 2*24/0.2 3.9*6.4 34.5
0.5 16/0.2 2.4 10.2
0.75 24/0.2 3.0 13.5
1.0 32/0.2 3.2 16.4
1.5 30/0.25 3.5 21.4
2.5 49/0.25 4.2 34.5
4 56/0.30 4.8 51.8
6 84/0.30 6.4 74.1
300/500V RVVB Flexible Flat Cable PVC Sheath Cable Home Audio Lighting Power Control 300/500V RVVB Flexible Flat Cable PVC Sheath Cable Home Audio Lighting Power Control 300/500V RVVB Flexible Flat Cable PVC Sheath Cable Home Audio Lighting Power Control
Frequently Asked Questions
What does RVVB cable stand for?
  • R: Flexible stranded copper conductor
  • V: PVC (Polyvinyl Chloride) Insulation
  • V: PVC (Polyvinyl Chloride) Sheath
  • B: Flat parallel sheathed design
RVVB is a flat, parallel sheathed, PVC insulated flexible cable, designed for light-duty power and control connections requiring a space-saving profile and flexibility.
What is the main advantage of its flat "B" design?
The primary advantage is space efficiency. The flat, parallel structure allows for:
  • Easier surface mounting on walls, under carpets (if permitted by local code), or along baseboards
  • Simpler routing in narrow channels or confined spaces where a round cable might not fit
  • Aesthetic appeal for exposed wiring in furniture, displays, or appliances
What are its typical voltage ratings and applications?
RVVB is commonly used for light-duty, low-voltage applications:
  • Voltage Rating: 300/300V or 300/500V
  • Applications: Internal wiring of appliances (e.g., refrigerators, air conditioners), extension cords, low-voltage lighting, doorbells, intercom systems, and connections for small electronics or control devices
Is RVVB cable suitable for outdoor use or direct burial?
No. Standard RVVB cable is designed for dry, indoor use only. Its PVC sheath is not UV-resistant and is not suitable for prolonged exposure to sunlight, moisture, or direct burial. For outdoor applications, use a weather-resistant variant like RVVY.
Can RVVB be used for fixed in-wall wiring of a house?
No, it should not be used for permanent building wiring (e.g., behind walls, in ceilings for fixed outlets/lights). It lacks the necessary ratings (like higher temperature or fire safety classifications) required by most national electrical codes for fixed installations. For that, use cables like BV, BVVB, or NYM.
What are the key installation guidelines?
  • Bending: Bend along the flat plane to avoid sharp kinks that could damage internal conductors
  • Protection: In areas with potential mechanical damage, use cable protectors, conduits, or trunking
  • Securing: Use flat cable clips or adhesive-backed cable holders designed for flat wires
  • Temperature: Do not install near high-temperature heat sources
Does it have any fire safety features?
Standard RVVB has basic flame-retardant properties due to its PVC material but is not classified as a highly flame-retardant or low-smoke cable for critical applications. For enhanced safety in public buildings, specialized cables (e.g., ZR-RVVB or WDZ-RVVB) should be used.
What are common conductor configurations?
It is most commonly available in:
  • 2-core: For simple connections (e.g., Live and Neutral)
  • 3-core: For grounded connections (e.g., Live, Neutral, Earth)
Common conductor sizes range from 2x0.5 mm² to 2x2.5 mm².
Why choose RVVB over a standard round cable?
Choose RVVB when your project's primary needs are:
  • Space Constraints: Installing in a very thin or narrow space
  • Clean Aesthetics: For surface-mounted wiring where a flat profile looks neater
  • Specific Application: When the product design (like an appliance) requires a flat power cord
300/500V RVVB Flexible Flat Cable PVC Sheath Cable Home Audio Lighting Power Control
Service of JinHong Company
Over Productions Service:
JinHong has a wide range of cable and conductor products for you to choose from. We will provide caring services and professional project solutions for everyone who needs them.
Quality Certification Services:
JinHong cable products are manufactured according to GB, IEC, BS, NFC, ASTM, DIN, and other international standards. Our technical team can customize cable products that meet your requirements according to your needs.
Profession Customer Service:
JinHong provides free professional consulting services to provide you with one-stop project solution services and rapid product delivery solutions.
Delivery And Shipping Services:
While we at JinHong provide high-quality cables, we also provide good delivery solutions. While ensuring the safe delivery of products, we provide the best packaging and transportation solutions, greatly reducing customers’ transportation costs.
Packaging of JinHong:
JinHong cable packaging is provided in the form of wooden reels, corrugated boxes, and coils. The cable ends are sealed with BOPP self-adhesive tape and a non-hygroscopic sealing cap to protect the cable ends from moisture. We can print the required marks on the outside of the barrel with waterproof material according to customer requirements.
