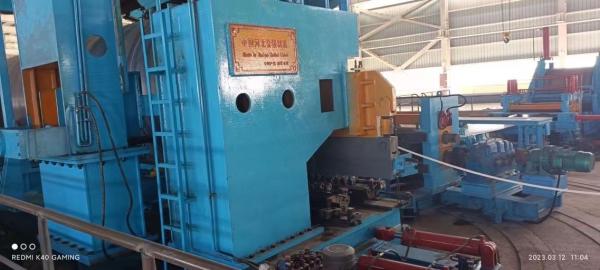

YY800 Spiral Welded Pipe Making Machine Production Line Steel Tube Making Machine
YY800 Spiral Welded Pipe Making Machine Production Line Steel Tube Making Machine
YY800 Spiral Welded Pipe Making Machine Production Line Steel Tube Making Machine
YY800 Spiral Welded Pipe Making Machine Production Line Steel Tube Making Machine
YY800 Spiral Welded Pipe Making Machine Production Line Steel Tube Making Machine
YY800 Spiral Welded Pipe Making Machine Production Line Steel Tube Making Machine
YY800 Spiral Welded Pipe Making Machine Production Line Steel Tube Making Machine
YY800 Spiral Welded Pipe Making Machine Production Line Steel Tube Making Machine
YY800 Spiral Welded Pipe Making Machine Production Line Steel Tube Making Machine
YY800 Spiral Welded Pipe Making Machine Production Line Steel Tube Making Machine
YY800 Spiral Welded Pipe Making Machine Production Line Steel Tube Making Machine
YY800 Spiral Welded Pipe Making Machine Production Line Steel Tube Making Machine
Specifications
Brand Name :
Hongli
Model Number :
HL2000-4000MM
Certification :
CE,ISO
Place of Origin :
Dongguan,china
MOQ :
1 set
Price :
800,00$-1,500,000$
Payment Terms :
T/T, L, L/C
Supply Ability :
50 set per year
Delivery Time :
100-150 days
Packaging Details :
wooden packing
Name :
Spiral Welded Pipe Making Machine Production Line
Strips thickness :
5-28mm
strips width :
700-2000mm
Coil-O.D :
1200-2000mm
Coil.weight :
max 40 tons
pipe OD :
400-4000mm
pipe thickness :
5-28mm
Coil-I.D :
508-760mm
Material :
Q235,Q355,X60,X70,X80
pipe length :
4-36 meters
foam angle :
40-80 degree
Description

Chinese Brand YY800 Spiral Welded Steel Pipe Production Line Steel Pipe Machine Tube Machine

About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, pipe production line,cable tapping machine, copper drawing machine.Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country,

Main brands for our machine

- Motor: SIEMENS, DONGGUAN MOTOR,
- Inverter: YASKAWA, INOVANCE, SIEMENS,
- PLC: Siemens
- Touch Screen: Siemens
- Low-voltage electrical components: Schneider
- Bearings: NSK or SKF

Model:

No. Model OD
(mm)		 Coil Width
(mm)		 Thickness
(mm)		 Capacity
(kw)		 Area
(M2)
1 HLYY - 820 Φ219 - Φ820 350 - 1300 3 - 14 500 30×400
2 HLYY -1020 Φ273 - Φ1020 350 - 1300 3 - 16 800 30×400
3 HLYY -1420 Φ325 - Φ1420 500 - 1600 3 - 18 1000 30×400
4 HLYY -1620 Φ426 - Φ1620 500 - 1600 4 - 25.4 1500 30×400
5 HLYY -1820 Φ508 - Φ1820 500 - 2000 4 - 25.4 1500 30×400
6 HLYY -2020 Φ508 - Φ2020 500 - 2000 4 - 25.4 1500 30×400
7 HLYY -2400 Φ508 - Φ2400 500 - 2000 4 - 25.4 1800 30×400
8 HLYY -3000 Φ610 - Φ3000 500 - 2000 4 - 25.4 1800 30×400
9 HLYYYY800 Spiral Welded Pipe Making Machine Production Line Steel Tube Making Machine -3500 Φ720 - Φ3500 600 - 2000 4 - 25.4 2000 30×400

Process:
Loading Coil - Uncoiling - Leveling - Cutting and Coil Welding - Edge Milling Machine - Feeding Machine - Flying Welder - Delivering Machine - Pre-Bending and Guide Board - Forming Machine - Internal Welding - External Welding - Tracking and Cutting Off - Pipe Delivery - Welding Seam Grinding - Pipe End Expander - X-Ray Inspection - Hydro Testing - Pipe End Charming - Ultrasonic Inspection - Weighting, Measuring, Marking - Finished Products Collection

List of machine

No. Name Qty
1 Pre-uncoiler 1
2 Detaching & Leveller 1
3 Uncoiler 1
4 Pinching & Leveler 1
5 Cutting & Burr Welding Machine 1
6 Submerged arc Welding Car 1
7 Vertical Roller on Fly-Welding Car 1
8 Pinching Device 1
9 Fly-welding Car & Rail Supporting Roller 1
10 Vertical Roller On The Ground 1
11 Precision Leveler 1
12 Rough Edge Miller 1
13 Precision Edge Miller 1
14 Steel Sheet Surface cleaner 1
15 Delivering Machine 1
16 Pre-bending &Guide Board 1
17 Forming Machine 1
18 Internal & External Welding Device 1
19 Lincoln Welder 4
20 Laser weld automatic tracking system 1
21 Welding flux supply and recovery system 1
22 Welding Flux handling device 1
23 Rear Axle& Centralizer Device 1
24 Fly Cutting Machine 1
25 Carried Pipe Car
26 Anchor bolts and embedded parts in main machine
27 Hydraulic System in main machine
28 Electrical control machine in main machine
29 Vacuum type internal welding slag removal device
30 Inside and outside welding seam grinding machine
31 Pipe End Expanding Machine
32 X Ray Inspection Device
33 3000T Hydrotester
34 Φ3600 Pipe End Facing & Chamfering
35 Φ1626 Tube End Flaring Machine
36 UT Tester
37 Pipe End X Ray filming
38 Weighting, Measuring Marking device
39 Carried Pipe Car
40 Pipe Conveying Roll Bed
41 Rotating Roller
42 Pulling Pipe Device
43 Receiving Pipe Device
44 Rack
45 Active Pulling Pipe Device
46 Fixed Pulling Pipe Device
47 Anchor bolts and embedded parts in Precision Area
48 Hydraulic System in Precision Area
49 Electrical control machine in Precision Area

IYY800 Spiral Welded Pipe Making Machine Production Line Steel Tube Making MachineYY800 Spiral Welded Pipe Making Machine Production Line Steel Tube Making MachineYY800 Spiral Welded Pipe Making Machine Production Line Steel Tube Making MachineYY800 Spiral Welded Pipe Making Machine Production Line Steel Tube Making MachineYY800 Spiral Welded Pipe Making Machine Production Line Steel Tube Making MachineYY800 Spiral Welded Pipe Making Machine Production Line Steel Tube Making MachineYY800 Spiral Welded Pipe Making Machine Production Line Steel Tube Making Machine
