Specifications
Brand Name :
Hongli
Model Number :
6-35KV
Certification :
CE,ISO
Place of Origin :
hebei
MOQ :
1 set
Price :
660,00$-850,000$
Payment Terms :
T/T, L/C
Supply Ability :
10 set per month
Delivery Time :
90-120 days
Packaging Details :
wooden packing
Name :
3 Layer Co Extruder Machine
copper size :
35-630 square mm
aluminum size :
50-800 square mm
motor brand :
siemens
Size :
630
inverter brand :
Yaskawa
max cable diamater :
75mm
extruder size :
150+90+65
main power :
75KVA
factory size :
more than 135 meters
XLPE close size :
36m+12m+54m
cable weight :
10kg/m
Description

XLPE 6-35 Kv 3-Layer Co Extrusion Ccv Line For Power Cable 240

About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, cable tapping machine, copper drawing machine.Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country,

Main brands for our machine

- Motor: SIEMENS, DONGGUAN MOTOR,
- Inverter: YASKAWA, INOVANCE, SIEMENS,
- PLC: Siemens
- Touch Screen: Siemens
- Low-voltage electrical components: Schneider
- Bearings: NSK or SKF
1. Application
This CCV line is used to make 3 layers co-extrusion cables, voltage from 6 kv to 35 kv.
2. Main machine list
6 - 35 kV CCV Line Main Machine List
S/N ITEM Quantity
1 Double Gantry type 2500 pay-off machine 1 set
2 Accumulator 1 set
3 Belt type haul-off 1 set
4 65+150 +90 extruders 1 set
5 3 layers co-extrusion cross-head 1 set
6 Upper seal 1 set
7 Heating tubes 1 set
8 Catenary control system 1 set
9 Pre-cooling tubes 1 set
10 Water gas balance system 1 set
11 Cooling tubes 1 set
12 Lower seal 1 set
13 Lower belt type haul-off 1 set
14 Double Gantry type 3150 take-up machine 1 set
15 PLC + Touch screen Control system 1 set

3. Main Technical parameter
6 - 35 kV CCV Line Main Technical Parameter
S/N ITEM SPECIFICATION
1 Insulation voltage range 6 - 35 kV
2 Cross-section range Copper: Ø 35- 630 mm²
Aluminum: Ø 50 - 800 mm²
3 Max. cable weight 10 kg/m
4 Max. Cable diameter Ø 70 mm
5 Line speed 0.3 - 30 m/min
6 Max vulcanization tube temp. 450 ºC
7 Technology method Nitrogen for coring
Water for cooling
8 Catenary coefficient 200 -150
9 Tube style Semi- catenary
10 Heating tube length 36 m < 6 zones heating>
42 m < 7 zones for heating >
48 m < 8 zones for heating >
54 m < 9 zones for heating >
11 Pro cooling tube length 6 - 13 m
12 Cooling tube length 54 m < 6 zones for heating >
66 m < 7 zones for heating>
72 m < 8 zones for heating >
84 m < 9 zones for heating >
13 Working pressure 0.8 - 1.6 MPa
14 Nitrogen purity ≥ 99.5%
15 Extruder style 65+ 150 + 90 or
80+ 175+ 100 < high speed>
16 Power consumption 1050 kVA 380 V 50 Hz
17 Water consumption 15 m³/h
Water pressure: 0.2 - 0.6 MPa
18 Air consumption 0.5 m³/h, 0.6 - 0.8 MPa
19 Nitrogen consumption 4 - 8 m³/h,
Purity: 99.5%
Pressure: 0.2 - 0.6 MPa

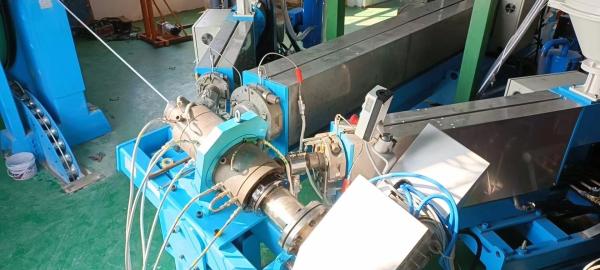

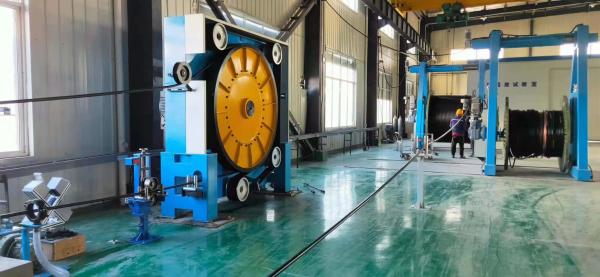

4. Main Machine Photos

Hongli CCV Lines XLPE 6-35Kv 3 Layer Co Extruder Machine For Power Cable 240Hongli CCV Lines XLPE 6-35Kv 3 Layer Co Extruder Machine For Power Cable 240Hongli CCV Lines XLPE 6-35Kv 3 Layer Co Extruder Machine For Power Cable 240Hongli CCV Lines XLPE 6-35Kv 3 Layer Co Extruder Machine For Power Cable 240


Hongli CCV Lines XLPE 6-35Kv 3 Layer Co Extruder Machine For Power Cable 240Hongli CCV Lines XLPE 6-35Kv 3 Layer Co Extruder Machine For Power Cable 240Hongli CCV Lines XLPE 6-35Kv 3 Layer Co Extruder Machine For Power Cable 240Hongli CCV Lines XLPE 6-35Kv 3 Layer Co Extruder Machine For Power Cable 240Hongli CCV Lines XLPE 6-35Kv 3 Layer Co Extruder Machine For Power Cable 240Hongli CCV Lines XLPE 6-35Kv 3 Layer Co Extruder Machine For Power Cable 240
