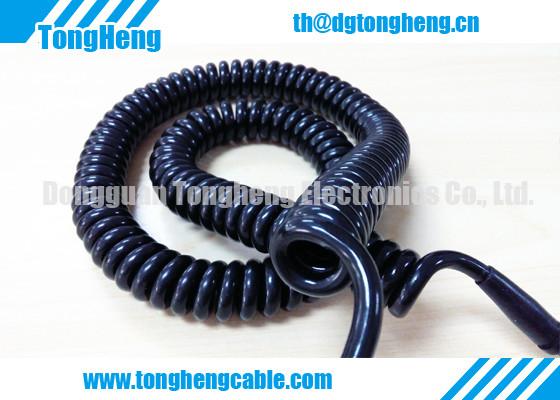

Control Switch Connection Spiral Cable
Control Switch Connection Spiral Cable
Specifications
Brand Name :
Spiral Cable
Model Number :
Switch A
Certification :
UL, CUL, CSA, AWM, CE
Place of Origin :
Dongguan, China
MOQ :
200 PCS
Price :
USD0.14~0.56 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
800,000pcs per month
Delivery Time :
10 days for ready goods
Packaging Details :
200pcs per carton box
Cable Type :
TPE Spiral Cable
Application :
Control Switch Connection
Rated Temperature :
80°C
Rated Voltage :
300V
Dimensions :
To be customized per request
Standard :
UL758, UL1581
Conductor Material :
High purity copper wire strands
Jacket Material :
Thermoplastic Elastomer TPE
Description

Control Switch Connection Spiral Cable

Conductor quantity: 2C to 50C;

Extra flex and long flex life;

Spec to be custom made per customer request.

Application: control switch connection.

Coiled Cable Conductor Structure Insulation Thickness Nominal Diameter Screened Coverage Sheath Thickness Overall Diameter Conductor Resistance
AWG mm mm % mm mm Ω/KM(20℃)
2C 30 0.76 1.90 ≥65 0.38 5.80 381.00
2C 28 0.76 2.00 ≥65 0.38 6.10 239.00
2C 26 0.76 2.10 ≥65 0.38 6.20 150.00
2C 24 0.76 2.20 ≥65 0.38 6.40 94.20
2C 22 0.76 2.40 ≥65 0.38 6.80 59.40
2C 20 0.76 2.50 ≥65 0.38 7.20 36.70
2C 18 0.76 2.80 ≥65 0.38 7.80 23.20
2C 16 0.76 3.10 ≥65 0.38 10.00 14.60
3C 30 0.76 1.90 ≥65 0.38 7.70 381.00
3C 28 0.76 2.00 ≥65 0.38 7.90 239.00
3C 26 0.76 2.10 ≥65 0.38 8.10 150.00
3C 24 0.76 2.20 ≥65 0.38 8.30 94.20
3C 22 0.76 2.40 ≥65 0.38 8.70 59.40
3C 20 0.76 2.50 ≥65 0.38 9.20 36.70
3C 18 0.76 2.80 ≥65 0.38 9.80 23.20
4C 30 0.76 1.90 ≥65 0.38 7.90 381.00
4C 28 0.76 2.00 ≥65 0.38 8.10 239.00
4C 26 0.76 2.10 ≥65 0.38 8.40 150.00
4C 24 0.76 2.20 ≥65 0.38 8.70 94.20
4C 22 0.76 2.40 ≥65 0.38 9.10 59.40
4C 20 0.76 2.50 ≥65 0.38 9.70 36.70
5C 30 0.76 1.90 ≥65 0.38 8.20 381.00
5C 28 0.76 2.00 ≥65 0.38 8.50 239.00
5C 26 0.76 2.10 ≥65 0.38 8.60 150.00
5C 24 0.76 2.20 ≥65 0.38 9.00 94.20
5C 22 0.76 2.40 ≥65 0.38 9.60 59.40
6C 30 0.76 1.90 ≥65 0.38 8.60 381.00
6C 28 0.76 2.00 ≥65 0.38 8.90 239.00
6C 26 0.76 2.10 ≥65 0.38 9.20 150.00
6C 24 0.76 2.20 ≥65 0.38 9.50 94.20

Control Switch Connection Spiral Cable

Control Switch Connection Spiral Cable
