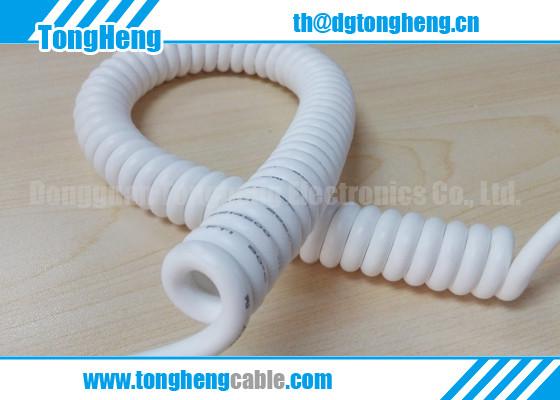

Durable Medical Equipment Connect Spiral Cable
Durable Medical Equipment Connect Spiral Cable
Specifications
Brand Name :
Spiral Cable
Model Number :
Medical A
Certification :
UL, CUL, CSA, AWM, CE
Place of Origin :
Dongguan, China
MOQ :
200 PCS
Price :
USD0.12~0.50 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
800,000pcs per month
Delivery Time :
10 days for ready goods
Packaging Details :
200pcs per carton box
Cable Type :
Spiral Cable
Connect Purpose :
Power supply wiring
Rated Temperature :
80°C
Application :
Durable medical equipment
Rated Voltage :
300V
Standard :
UL758, UL1581, UL62
Flammability :
VW-1, FT1
Sheath Material :
Polyurethane PUR
Description

Durable Medical Equipment Connect Spiral Cable

1. Conductor material: pure copper wire strands.

2. Insulation material: awm complied material.
3. Core combination: pair twisted or bundle stranded.
4. Sheath material: quality polyurethane PUR.
5. Uniform insulation thickness for easy stripping in step of assembly process.
6. Long flex life and high resilience force.

Application: durable medical equipment interconnection.

Spiral Cable Conductor Structure Insulation Thickness Nominal Diameter Screened Coverage Sheath Thickness Overall Diameter Conductor Resistance
AWG mm mm % mm mm Ω/KM(20℃)
2C 30 0.23 0.80 ≥65 0.89 3.80 381.00
2C 28 0.23 0.90 ≥65 0.89 4.10 239.00
2C 26 0.23 1.00 ≥65 0.89 4.30 150.00
2C 24 0.23 1.10 ≥65 0.89 4.40 94.20
2C 22 0.23 1.30 ≥65 0.89 4.80 59.40
2C 20 0.23 1.50 ≥65 0.89 5.20 36.70
2C 18 0.23 1.80 ≥65 0.89 5.80 23.20
2C 16 0.23 2.00 ≥65 0.89 8.00 14.60
3C 30 0.23 0.80 ≥65 0.89 5.70 381.00
3C 28 0.23 0.90 ≥65 0.89 5.90 239.00
3C 26 0.23 1.00 ≥65 0.89 6.10 150.00
3C 24 0.23 1.10 ≥65 0.89 6.30 94.20
3C 22 0.23 1.30 ≥65 0.89 6.70 59.40
3C 20 0.23 1.50 ≥65 0.89 7.20 36.70
3C 18 0.23 1.80 ≥65 0.89 7.80 23.20
4C 30 0.23 0.80 ≥65 0.89 5.90 381.00
4C 28 0.23 0.90 ≥65 0.89 6.10 239.00
4C 26 0.23 1.00 ≥65 0.89 6.40 150.00
4C 24 0.23 1.10 ≥65 0.89 6.70 94.20
4C 22 0.23 1.30 ≥65 0.89 7.10 59.40
4C 20 0.23 1.50 ≥65 0.89 7.60 36.70
5C 30 0.23 0.80 ≥65 0.89 6.20 381.00
5C 28 0.23 0.90 ≥65 0.89 6.50 239.00
5C 26 0.23 1.00 ≥65 0.89 6.60 150.00
5C 24 0.23 1.10 ≥65 0.89 7.00 94.20
5C 22 0.23 1.30 ≥65 0.89 7.60 59.40
6C 30 0.23 0.80 ≥65 0.89 6.60 381.00
6C 28 0.23 0.90 ≥65 0.89 6.90 239.00
6C 26 0.23 1.00 ≥65 0.89 7.20 150.00
6C 24 0.23 1.10 ≥65 0.89 7.50 94.20

Durable Medical Equipment Connect Spiral Cable

Durable Medical Equipment Connect Spiral Cable

Durable Medical Equipment Connect Spiral Cable

Durable Medical Equipment Connect Spiral Cable

Durable Medical Equipment Connect Spiral Cable

Durable Medical Equipment Connect Spiral Cable

Durable Medical Equipment Connect Spiral Cable

Durable Medical Equipment Connect Spiral Cable

Durable Medical Equipment Connect Spiral Cable
