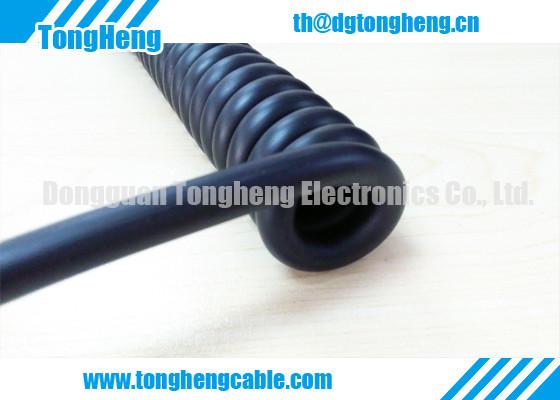

Industry Machinery Supporting Spiral Cable
Industry Machinery Supporting Spiral Cable
Specifications
Brand Name :
Spiral Cable
Model Number :
Machinery A
Certification :
UL, CUL, CSA, AWM, CE
Place of Origin :
Dongguan, China
MOQ :
200 PCS
Price :
USD0.14~0.50 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
800,000pcs per month
Delivery Time :
10 days for ready goods
Packaging Details :
200pcs per carton box
Cable Type :
Spiral cable
Rated Temperature :
80°C
Application :
Industry Machinery Connection
Rated Voltage :
300V
Sheath Material :
Polyurethane PUR
Dimensions :
To be customized per request
Standard :
UL62, UL758, UL1581
Advantage :
Easy operation
Description

Industry Machinery Supporting Spiral Cable

1. Conductor material: pure copper wire strands.

2. Insulation material: awm complied material.
3. Core combination: pair twisted or bundle stranded.
4. Sheath material: quality polyurethane PUR.
5. Uniform insulation thickness for easy stripping in step of assembly process.
6. Long flex life and high resilience force.

Application: industry machinery interconnection

Spiral Cable Conductor Structure Insulation Thickness Nominal Diameter Screened Coverage Sheath Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm % mm mm Ω/KM(20℃)
2C 30 7/0.100 0.23 0.80 ≥65 0.76 3.60 381.0
2C 28 7/0.127 0.23 0.90 ≥65 0.76 3.90 239.0
2C 26 7/0.16 0.23 1.00 ≥65 0.76 4.00 150.0
2C 24 11/0.16 0.23 1.10 ≥65 0.76 4.20 94.2
2C 22 17/0.16 0.23 1.30 ≥65 0.76 4.60 59.4
2C 20 21/0.178 0.23 1.50 ≥65 0.76 5.00 36.7
2C 18 34/0.178 0.23 1.80 ≥65 0.76 5.60 23.2
2C 16 26/0.25 0.23 2.00 ≥65 0.76 7.80 14.6
3C 30 7/0.100 0.23 0.80 ≥65 0.76 5.50 381.0
3C 28 7/0.127 0.23 0.90 ≥65 0.76 5.70 239.0
3C 26 7/0.16 0.23 1.00 ≥65 0.76 5.90 150.0
3C 24 11/0.16 0.23 1.10 ≥65 0.76 6.10 94.2
3C 22 17/0.16 0.23 1.30 ≥65 0.76 6.50 59.4
3C 20 21/0.178 0.23 1.50 ≥65 0.76 7.00 36.7
3C 18 34/0.178 0.23 1.80 ≥65 0.76 7.60 23.2
4C 30 7/0.100 0.23 0.80 ≥65 0.76 5.70 381.0
4C 28 7/0.127 0.23 0.90 ≥65 0.76 5.90 239.0
4C 26 7/0.16 0.23 1.00 ≥65 0.76 6.20 150.0
4C 24 11/0.16 0.23 1.10 ≥65 0.76 6.50 94.2
4C 22 17/0.16 0.23 1.30 ≥65 0.76 6.90 59.4
4C 20 21/0.178 0.23 1.50 ≥65 0.76 7.40 36.7
5C 30 7/0.100 0.23 0.80 ≥65 0.76 6.00 381.0
5C 28 7/0.127 0.23 0.90 ≥65 0.76 6.30 239.0
5C 26 7/0.16 0.23 1.00 ≥65 0.76 6.40 150.0
5C 24 11/0.16 0.23 1.10 ≥65 0.76 6.80 94.2
5C 22 17/0.16 0.23 1.30 ≥65 0.76 7.40 59.4
6C 30 7/0.100 0.23 0.80 ≥65 0.76 6.40 381.0
6C 28 7/0.127 0.23 0.90 ≥65 0.76 6.70 239.0
6C 26 7/0.16 0.23 1.00 ≥65 0.76 7.00 150.0
6C 24 11/0.16 0.23 1.10 ≥65 0.76 7.30 94.2

Industry Machinery Supporting Spiral Cable

Industry Machinery Supporting Spiral Cable

Industry Machinery Supporting Spiral Cable

Industry Machinery Supporting Spiral Cable

Industry Machinery Supporting Spiral Cable

Industry Machinery Supporting Spiral Cable

Industry Machinery Supporting Spiral Cable

Industry Machinery Supporting Spiral Cable

Industry Machinery Supporting Spiral Cable

Industry Machinery Supporting Spiral Cable

Industry Machinery Supporting Spiral Cable

Industry Machinery Supporting Spiral Cable

Tag: spiral cable, pur cable
