Cable Factory Manufactured Flex Customized Data Curly Cable
Cable Factory Manufactured Flex Customized Data Curly Cable
Specifications
Brand Name :
Spiral Cable
Model Number :
TH-812530
Certification :
UL, CUL, CSA, AWM, CE
Place of Origin :
Dongguan, China
MOQ :
200 PCS
Price :
USD0.25~0.55 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
800,000pcs per month
Delivery Time :
10 days for ready goods
Packaging Details :
200pcs per carton box
Category :
Curly Cable
Feature :
Extra Flexible
Rated Temperature :
105C degrees
Rated Voltage :
300V
Dimensions :
To be customized per request
Standard :
RoHS Compliant
Description

Cable Factory Manufactured Flex Customized Data Curly Cable

Curly Cable is one of Tongheng main products. Cable Factory Manufactured Flex Customized Data Curly Cable can be customized exactly following customers requirement. As the professional manufacturer, Tongheng staff engage to present customer the best quality article. Cable Factory Manufactured Flex Customized Data Curly Cable is one of the excellent example. Its remarkable advantage is extra flexible.

Here below is the product properties:

Manufactured by: China cable factory

Conductor quantity: 2C to 50C

Conductor: oxygen free copper wires

100% RoHS compliant

Product parameters:

Curly Cable Conductor Structure Insulation Thickness Nominal Diameter Screened Coverage Sheath Thickness Overall Diameter Conductor Resistance
No/mm mm mm % mm mm Ω/KM(20℃)
2C 7/0.100 0.23 0.80 ≥65 0.76 3.80 381.00
2C 7/0.127 0.23 0.90 ≥65 0.76 4.00 239.00
2C 7/0.16 0.23 1.00 ≥65 0.76 4.10 150.00
2C 11/0.16 0.23 1.10 ≥65 0.76 4.20 94.20
2C 17/0.16 0.23 1.30 ≥65 0.76 4.60 59.40
2C 21/0.178 0.23 1.50 ≥65 0.76 5.00 36.70
2C 34/0.178 0.23 1.80 ≥65 0.76 5.60 23.20
2C 26/0.25 0.23 2.00 ≥65 0.76 7.80 14.60
3C 7/0.100 0.23 0.80 ≥65 0.76 4.00 381.00
3C 7/0.127 0.23 0.90 ≥65 0.76 4.20 239.00
3C 7/0.16 0.23 1.00 ≥65 0.76 4.40 150.00
3C 11/0.16 0.23 1.10 ≥65 0.76 4.60 94.20
3C 17/0.16 0.23 1.30 ≥65 0.76 5.20 59.40
3C 21/0.178 0.23 1.50 ≥65 0.76 5.50 36.70
3C 34/0.178 0.23 1.80 ≥65 0.76 6.10 23.20
4C 7/0.100 0.23 0.80 ≥65 0.76 4.20 381.00
4C 7/0.127 0.23 0.90 ≥65 0.76 4.40 239.00
4C 7/0.16 0.23 1.00 ≥65 0.76 4.70 150.00
4C 11/0.16 0.23 1.10 ≥65 0.76 5.10 94.20
4C 17/0.16 0.23 1.30 ≥65 0.76 5.40 59.40
4C 21/0.178 0.23 1.50 ≥65 0.76 5.90 36.70
5C 7/0.100 0.23 0.80 ≥65 0.76 4.40 381.00
5C 7/0.127 0.23 0.90 ≥65 0.76 4.60 239.00
5C 7/0.16 0.23 1.00 ≥65 0.76 4.70 150.00
5C 11/0.16 0.23 1.10 ≥65 0.76 5.10 94.20
5C 17/0.16 0.23 1.30 ≥65 0.76 5.70 59.40
6C 7/0.100 0.23 0.80 ≥65 0.76 4.60 381.00
6C 7/0.127 0.23 0.90 ≥65 0.76 5.00 239.00
6C 7/0.16 0.23 1.00 ≥65 0.76 5.40 150.00
6C 11/0.16 0.23 1.10 ≥65 0.76 5.70 94.20

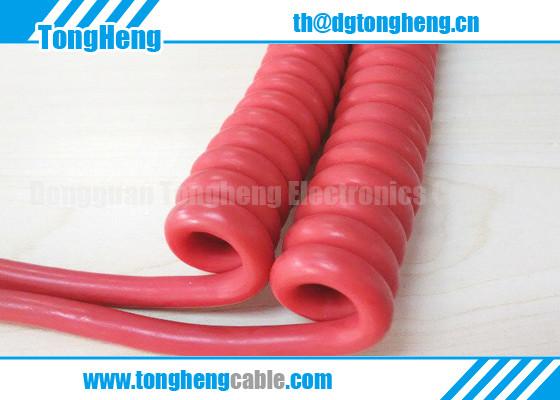

Product Image: Cable Factory Manufactured Flex Customized Data Curly Cable

Cable Factory Manufactured Flex Customized Data Curly Cable

Manufacturing Procedures:

Cable Factory Manufactured Flex Customized Data Curly Cable

Cable Factory Manufactured Flex Customized Data Curly Cable

Cable Factory Manufactured Flex Customized Data Curly Cable

Contact:

Thanks for your visit to our website. The above displayed parameters are just for reference. Please ask us (Contact Us) for customized ones immediately if you have the differentt requirement.
