Specifications
Brand Name :
Spiral Cable
Model Number :
TH-8127712
Certification :
UL, CUL, CSA, AWM, CE
Place of Origin :
Dongguan, China
MOQ :
200 PCS
Price :
USD0.25~0.63 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
800,000pcs per month
Delivery Time :
10 days for ready goods
Packaging Details :
200pcs per carton box
Category :
Curly Cable
Feature :
Fire retardant
Rated Temperature :
80 degrees
Rated Voltage :
300V
Dimensions :
To be customized per request
Standard :
RoHS Compliant
Description

Halogen Free Polyether Reinforced Sheathed Customized Curly Cable

Curly Cable is one of Tongheng main products. Halogen Free Polyether Reinforced Sheathed Customized Curly Cable can be customized exactly following customers requirement. As the professional manufacturer, Tongheng staff engage to present customer the best quality article. Halogen Free Polyether Reinforced Sheathed Customized Curly Cable is one of the excellent example. Its remarkable advantage is halogen free.

Here below is the product properties:

Conductors materials: Oxygen Free Copper Wires

Jacketed materials: polyether polyurethane.

Feature: Halogen free

100% RoHS compliant

Product parameters:

Curly Cable Conductor Strands Insulation Thickness Nominal Diameter Screened Coverage Sheath Thickness Overall Diameter Conductor Resistance
No/mm mm mm % mm mm Ω/KM(20℃)
2C 7/0.100 0.38 1.10 ≥65 0.76 4.40 381.00
2C 7/0.127 0.38 1.20 ≥65 0.76 4.50 239.00
2C 7/0.16 0.38 1.30 ≥65 0.76 4.60 150.00
2C 11/0.16 0.38 1.40 ≥65 0.76 4.90 94.20
2C 17/0.16 0.38 1.60 ≥65 0.76 5.10 59.40
2C 21/0.178 0.38 1.80 ≥65 0.76 5.50 36.70
2C 34/0.178 0.38 2.10 ≥65 0.76 6.10 23.20
2C 26/0.25 0.38 2.40 ≥65 0.76 6.90 14.60
3C 7/0.100 0.38 1.10 ≥65 0.76 4.50 381.00
3C 7/0.127 0.38 1.20 ≥65 0.76 4.70 239.00
3C 7/0.16 0.38 1.30 ≥65 0.76 4.90 150.00
3C 11/0.16 0.38 1.40 ≥65 0.76 5.10 94.20
3C 17/0.16 0.38 1.60 ≥65 0.76 5.30 59.40
3C 21/0.178 0.38 1.80 ≥65 0.76 6.00 36.70
3C 34/0.178 0.38 2.10 ≥65 0.76 6.60 23.20
4C 7/0.100 0.38 1.10 ≥65 0.76 4.70 381.00
4C 7/0.127 0.38 1.20 ≥65 0.76 4.90 239.00
4C 7/0.16 0.38 1.30 ≥65 0.76 5.20 150.00
4C 11/0.16 0.38 1.40 ≥65 0.76 5.60 94.20
4C 17/0.16 0.38 1.60 ≥65 0.76 5.90 59.40
4C 21/0.178 0.38 1.80 ≥65 0.76 6.40 36.70
5C 7/0.100 0.38 1.10 ≥65 0.76 4.90 381.00
5C 7/0.127 0.38 1.20 ≥65 0.76 5.10 239.00
5C 7/0.16 0.38 1.30 ≥65 0.76 5.20 150.00
5C 11/0.16 0.38 1.40 ≥65 0.76 5.60 94.20
5C 17/0.16 0.38 1.60 ≥65 0.76 6.20 59.40
6C 7/0.100 0.38 1.10 ≥65 0.76 5.10 381.00
6C 7/0.127 0.38 1.20 ≥65 0.76 5.50 239.00
6C 7/0.16 0.38 1.30 ≥65 0.76 5.90 150.00
6C 11/0.16 0.38 1.40 ≥65 0.76 6.20 94.20

Contact:

Thanks for your visit to our website. The above displayed parameters are just for reference. Please ask us for customized ones immediately if you have the differentt requirement.

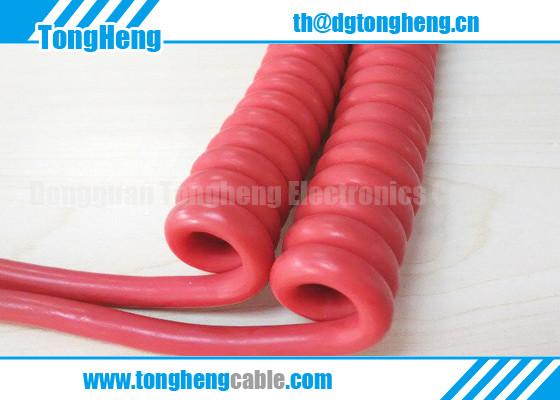

Product image:

Halogen Free Polyether Reinforced Sheathed Customized Curly Cable

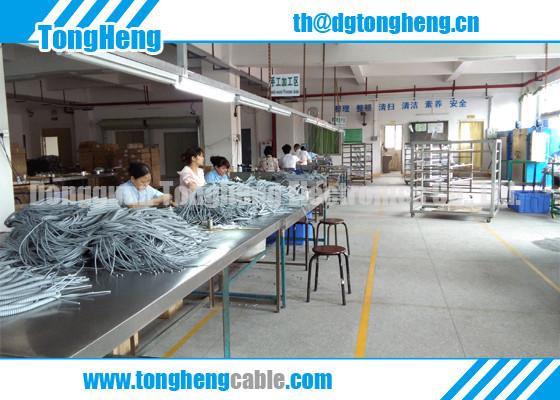

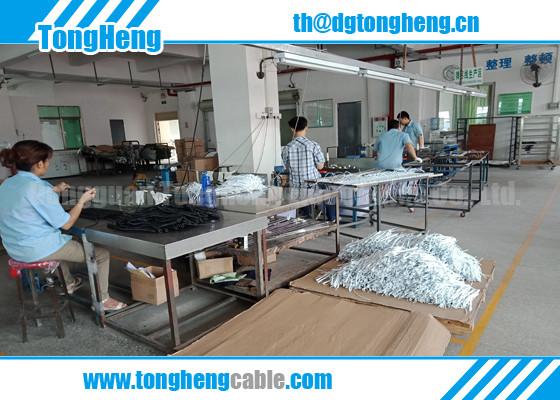

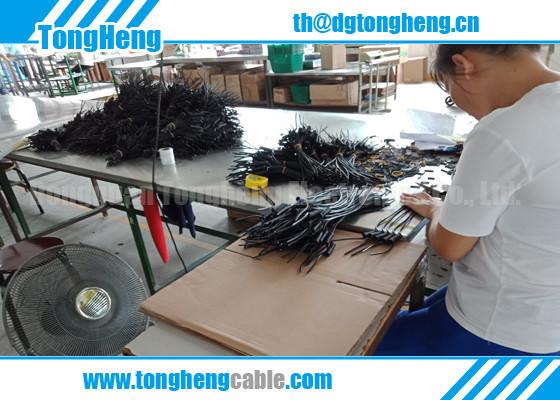

Spiral Coiling Process:

Halogen Free Polyether Reinforced Sheathed Customized Curly Cable

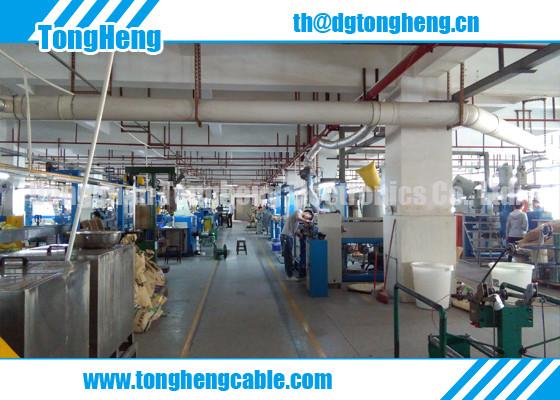

Straight Cable Extrusion Lines:

Halogen Free Polyether Reinforced Sheathed Customized Curly Cable

Halogen Free Polyether Reinforced Sheathed Customized Curly Cable

Halogen Free Polyether Reinforced Sheathed Customized Curly Cable
